CHF 309.-

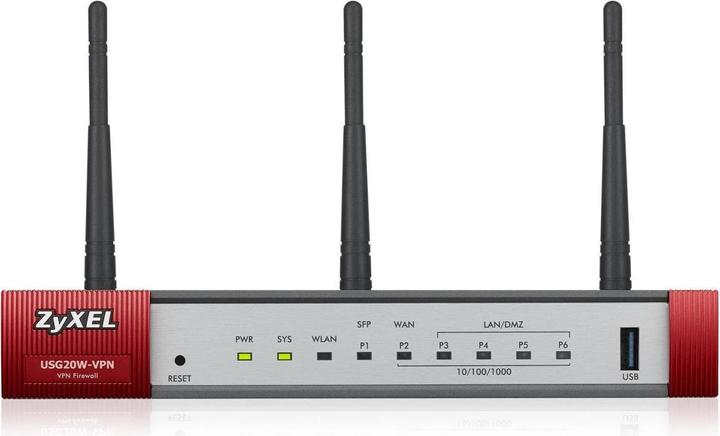

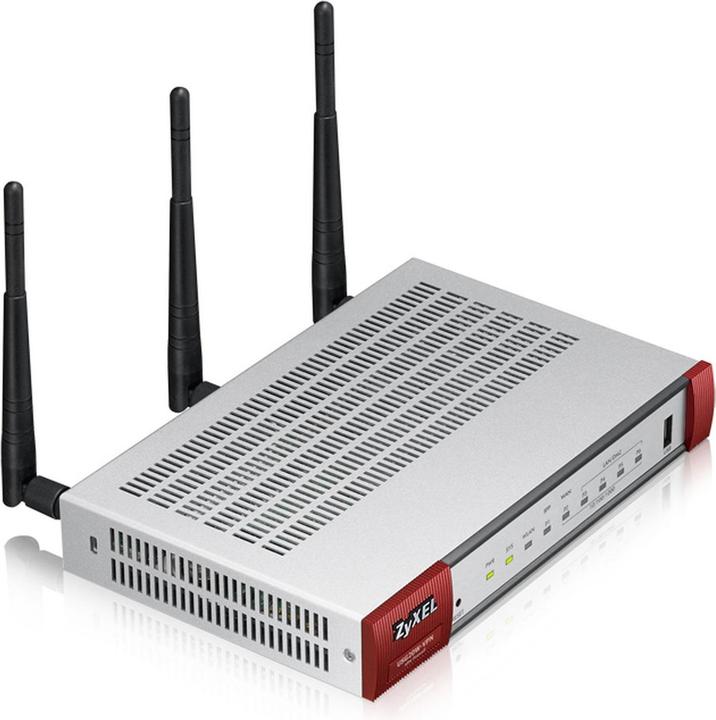

Zyxel USG20W-VPN

Art-Nr 5779560
 only 2 piece(s) in our warehouse

Availability

Mail delivery

  • only 2 piece(s)
    in our warehouse

PickMup

Collection

  • Basel: today at 13:10
  • Bern: today at 12:45
  • Dietikon: today at 14:30
  • Geneva: today at 13:30
  • Kriens: today at 11:20
  • Lausanne: today at 15:40
  • St Gallen: today at 15:30
  • Winterthur: today at 13:30
  • Wohlen: today at 11:00
  • Zurich: today at 12:30

If ordered immediately.
Information subject to change.

View details

Specifications

Key specifications

Max. port speed1000 Mbit/s
UTMContent filter, Spamfilter

General information

Manufacturer Zyxel
Product type Firewalls
i

Firewalls

A firewall is a part of a computer system or network that is designed to block unauthorized access while permitting authorized communications. It is a device or set of devices that is configured to permit or deny network transmissions based upon a set of rules and other criteria.
Firewalls can be implemented in either hardware or software, or a combination of both. Firewalls are frequently used to prevent unauthorized Internet users from accessing private networks connected to the Internet, especially intranets. All messages entering or leaving the intranet pass through the firewall, which inspects each message and blocks those that do not meet the specified security criteria.

More information...

Item number5779560
Manufacturer no.USG20W-VPN-EU0101F
Release date30.03.2016
Sales rank in Product type Firewalls3 of 77
External links Manufacturer's site (de)

Firewall properties

i

Firewall properties

Describes the firewall.

Empfohlene max. Anzahl Benutzer
i

Empfohlene max. Anzahl Benutzer

Vom Hersteller vorgesehene maximale Anzahl empfohlener Benutzer, die sich hinter der Firewall befinden.

5 x
SPI data throughput
i

SPI data throughput

Stateful packet test with 1518 byte packets inspection data throughput, based on RFC 2544.

350 Mbit/s
VPN throughput
i

VPN throughput

Describes the maximum data throughput of the VPN.

90 Mbit/s
Max. IPSec VPN Tunnels
10
Max. SSL VPN Tunnels
15
Max. Sessions
20000
UTM
i

UTM

Unified Threat Management (UTM) is a comprehensive solution that has recently emerged in the network security industry, and since 2004 it has gained widespread currency as a primary network gateway defense solution for organizations. In theory, UTM is the evolution of the traditional firewall into an all-inclusive security product able to perform multiple security functions within one single appliance: network firewalling, network intrusion prevention and gateway antivirus (AV), gateway anti-spam, VPN, content filtering, load balancing, data leak prevention and on-appliance reporting.

More information...

Yes
UTM
i

UTM

Describes the possible UTM features. Often optional (and temporary) licenses need to be purchased, to be able to use these services.

More information...

Content filter
i

Content filter

Content-control software, content filtering software, secure web gateways, censorware, and web filtering software are terms for software designed and optimized for controlling what content is permitted to a reader, especially when it is used to restrict material delivered over the Internet via the Web, e-mail, or other means. Content-control software determines what content will be available or perhaps more often what content will be blocked.

More information...

,
Spamfilter
Type of Construction
Desktop
i

Desktop

The device is suitable for everyday tasks on a desktop computer.

Network interface

i

Network interface

Describes the interface of the product to the network.

Number of ports
i

Number of ports

Maximal Anzahl gleichzeitig nutzbarer Ports.

5
Max. port speed
i

Max. port speed

Describes the maximum data transfer rate. Is not necessarily supported by all ports.

More information...

1000 Mbit/s
i

1000 Mbit/s

In computer networking, Gigabit Ethernet (GbE or 1 GigE) is a term describing various technologies for transmitting Ethernet frames at a rate of a gigabit per second (1,000,000,000 bits per second).

More information...

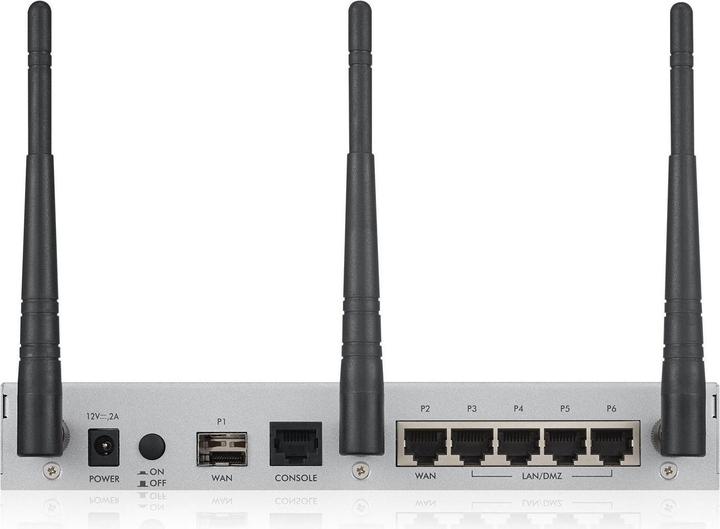

RJ45 LAN/DMZ
i

RJ45 LAN/DMZ

Ethernet Port, der entweder als LAN- oder DMZ-Port verwendet werden kann.

4 x
RJ45 WAN
i

RJ45 WAN

RJ45 port to connec with a wide area network.

1 x
Wi-Fi
i

Wi-Fi

A wireless local area network (WLAN) links two or more devices using some wireless distribution method (typically spread-spectrum or OFDM radio), and usually providing a connection through an access point to the wider Internet.

More information...

Yes
Antenna
i

Antenna

Antenne bezeichnet eine Vorrichtung zum Senden und Empfangen elektromagnetischer Wellen.

3 x
Maximum Wi-Fi data rate
i

Maximum Wi-Fi data rate

Specifies the maximum data transfer via the Wi-Fi connection.

1300 Mbit/s

Additional connections

i

Additional connections

Describes other connections of the product.

USB 2.0 type A
i

USB 2.0 type A

Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed.
The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm.

More information...

1 x
Console port
i

Console port

Console ports are meant to allow root access to a router or firewall via a dumb terminal interface, regardless of the state of the device. By connecting to the console port you can get remote access to the root level of a router without using the network that the router is connected to. This creates a secondary path to the router outside the bandwidth of the network which needs to be secured without relying on the primary network.

1 x

Mains supply properties

i

Mains supply properties

Generally mains supply means the product is supplied with energy over the grid.

Power consumption
18 W

Delivery contents

i

Delivery contents

The scope of delivery means the included accessories.

Delivery contents
1 x power supply
,
1x DB9 zu RJ45 Konsolenkabel
,
3x Antenne

Product dimensions

i

Product dimensions

Physical size of an object

Width
216 mm
Length
143 mm
Height
33 mm
Weight
1500 g

Properties

Wi-fi standard
i

Wi-fi standard

Describes the transfer of WLANs.

More information...

802.11a
i

802.11a

IEEE 802.11a-1999 or 802.11a, is an amendment to the IEEE 802.11 specification that added a higher throughput of up to 54 Mbit/s by using the 5 GHz band.

More information...

,
802.11g
i

802.11g

This works in the 2.4 GHz band (like 802.11b) but operates at a maximum raw data rate of 54 Mbit/s, or about 19 Mbit/s net throughput. 802.11g hardware is fully backwards compatible with 802.11b hardware.

,
802.11n
i

802.11n

802.11n is a proposed amendment which improves upon the previous 802.11 standards by adding multiple-input multiple-output (MIMO) and many other newer features. Though there are already many products on the market based on Draft 2.0 of this proposal, the TGn workgroup is not expected to finalize the amendment until November 2008.

,
802.11ac
i

802.11ac

IEEE 802.11ac is a wireless computer networking standard of 802.11, currently under development (Draft 4.0[1]), providing high-throughput wireless local area networks on the 5 GHz band.

More information...

,
802.11b
i

802.11b

802.11b has a maximum raw data rate of 11 Mbit/s and uses the same media access method defined in the original standard. 802.11b products appeared on the market in early 2000, since 802.11b is a direct extension of the modulation technique defined in the original standard. The dramatic increase in throughput of 802.11b (compared to the original standard) along with simultaneous substantial price reductions led to the rapid acceptance of 802.11b as the definitive wireless LAN technology.

More information...


Please click directly on the incorrect data to access the registration form.

Alternatively, you can register a generic error report (wrong picture, unsuitable accessories, etc.)

Cancel

Report incorrect data

Correction suggestion

Comment

Report incorrect data

Downloads

Technical data sheet | 2.53 MB | English

Returns and warranty

Dead on arrival (DOA) 30 Days Bring-in
Warranty 24 month Bring-in
30-day right of return
i

30-day right of return

This product may be returned within 30 days after shipment or collection. A minimum of 10% will be deducted from opened products. Unfortunately, we cannot accept a product if it is damaged, incomplete or missing its original packaging.

Returns and warranty

Please use our simplified returns and warranty process to return a product or register a warranty case. Returns and warranty

Please use our simplified warranty process to view the warranty period as well as any warranty extensions you may have purchased. This will ensure that your return or warranty case is processed quickly and effectively.

Warranty services

Garantieerweiterung

Garantieerweiterung

Die Garantie wird zu den gleichen Bedingungen wie die Herstellergarantie verlängert.

to 3 years CHF 24.90
to 5 years CHF 30.-

More information about warranty services

Availability

Mail delivery

 only 2 item(s) ready for delivery from our warehouse
Expected delivery date: tomorrow 22.11.2017 if ordered by today 17:00.

Collection

Basel

 Ready for collection approx today at 13:10 if ordered by today 07:20
2 item(s) at our central warehouse

Bern

 Ready for collection approx today at 12:45 if ordered by today 05:45
2 item(s) at our central warehouse

Dietikon

 Ready for collection approx today at 14:30 if ordered by today 08:45
2 item(s) at our central warehouse

Geneva

 Ready for collection approx today at 13:30 if ordered by today 03:45
2 item(s) at our central warehouse

Kriens

 Ready for collection approx today at 11:20 if ordered by today 06:45
2 item(s) at our central warehouse

Lausanne

 Ready for collection approx today at 15:40 if ordered by today 05:45
2 item(s) at our central warehouse

St Gallen

 Ready for collection approx today at 15:30 if ordered by today 08:10
2 item(s) at our central warehouse

Winterthur

 Ready for collection approx today at 13:30 if ordered by today 08:10
2 item(s) at our central warehouse

Wohlen

 Ready for collection approx today at 11:00 if ordered by today 08:00
2 item(s) at our central warehouse

Zurich

 Ready for collection approx today at 12:30 if ordered by today 05:55
2 item(s) at our central warehouse

PickMup

 only 2 item(s) ready for delivery from our warehouse
Expected delivery date: tomorrow 22.11.2017 if ordered by today 17:00. What is PickMup?

If ordered immediately.
Information subject to change.

Customer questions and answers

The 2 most helpful customer questions

User goanna

funktioniert, bzw. kann ich diese firewall (für meine PC?s) an die neuen swisscom router box 2 anhängen? Was passiert mit WLAN ? Würde die USG20-VPN reichen da die Box 2 ja WLAN hat?

25.01.2017
1 answer
User triple-m
Accepted answer

Die USG20-VPN funktioniert mit der Swisscom Box. Das WLAN der Swisscom Box ist dann nur noch für Internetzugang. WLAN Geräte (Laptop, Tablet, Handy, etc..) die mit der Swisscom Box verbunden sind, haben dann keinen Zugriff mehr auf das lokale Netzwerk (z.B: Drucker) hinter der USG20.
Netzwerk-Basics halt. Sollte das nicht klar sein, dann brauchst Du auch keine USG20.

26.01.2017
