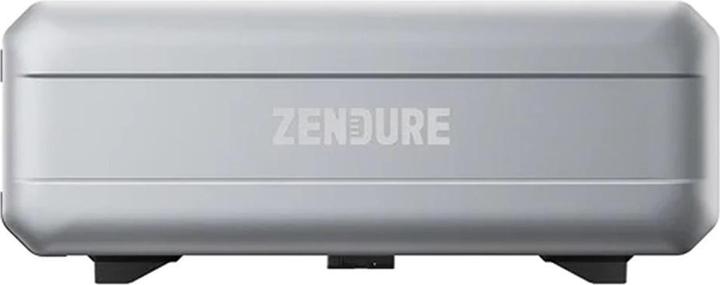

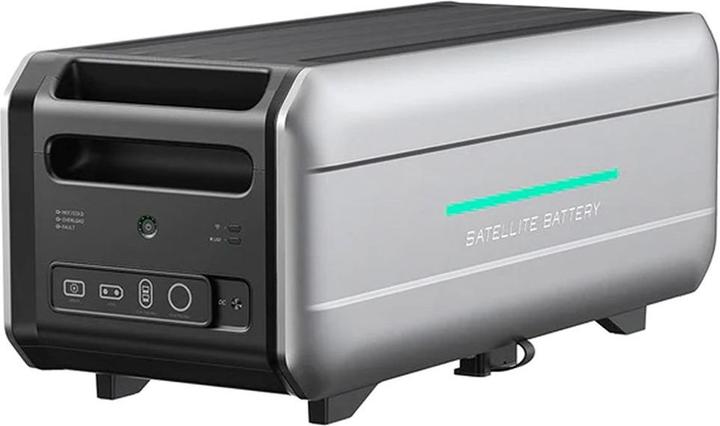

Zendure Superbase B4600

With the B4600 satellite battery from Zendure (MPN: ZDSATB4600), the SuperBase V4600 capacity can be expanded by 4.6kWh. In total, up to four expansion batteries can be connected to one SuperBase power station. A SuperBase system can consist of a maximum of two Powerstations with a total of eight satellite batteries (four per Powerstation). This makes a total capacity of 46kWh possible

Important features

• Connect up to four Satellite Batteries to one V4600 Power Station

• LiFePO4 battery technology

• Connectivity: Bluetooth, WiFi

• with LED light

• Compatible with the Zendure Smart app

Can be used as an extension and independently

The Zendure Satellite Batteries are a great addition to the SuperBase V power plant to increase the capacity of the plug & play system. However, they can also be used as a stand-alone unit via the DC input and output functions. The satellite batteries can be wirelessly connected to each other directly by stacking them on top of each other; a satellite battery cable is required to connect to the SuperBase V.

Inputs and outputs

• XT90 input: 12-150VDC-10A, max. 600W

• Auto charge output: 12.6V-10A, max. 126W

• Anderson:Output: 12.6V-30°, max. 378W

• XT90 output: 12-60V-10°, max. 600W

By 378W we mean the max. output power of the combined car socket output and the Anderson interface.

XT90 is set as default input and can be switched to output via the Zendure App.

Technical data

• Capacity: 4608Wh (90Ah / 51.2V)

• Battery chemistry: LiFePO4

• Dimensions: 690 x 285 x 274 mm

• Weight: 45kg

• Lifetime: 6000+ cycles)

• Charging temperature: 0°C - +45°C

• Discharge temperature: -20°C - +45°C

Note: Stack max. one satellite battery on the SuperBase V4600. Cannot be combined with V6400 or B6400.

Scope of delivery:

1x Zendure Satellite Battery B4600

1x Handle cover (pair)

1x instruction manual.
