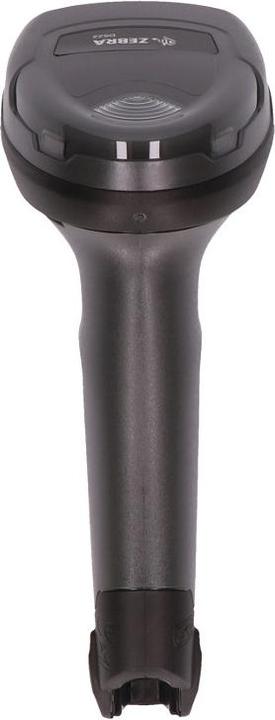

The versatile Zebra DS2208 barcode scanner reads 1D and 2D barcodes in seconds – from traditional paper and plastic labels as well as from a smartphone display. It captures customer cards, promotional codes, vouchers, and much more directly from the customer's smartphone for easy billing – making it ideal for use in retail and hospitality, even during peak times. The DS2208 automatically detects handheld and presentation mode simply by being placed in or taken out of the presentation stand. This multifunctional area imager is ready to use right out of the box thanks to comprehensive pre-configuration – just unpack and get started. The connection cable (available in USB, RS232, KBW, or IBM) is automatically recognized by the DS2208 through Auto-Host-Detect upon connection, requiring no further settings. With Zebra's free remote software SMS (Scanner Management Service), you can manage and configure the DS2208 and many other models worldwide from a PC, smartphone, or tablet. Switching from 1D to 2D is easy with Zebra, as there is full backward compatibility with all existing connection cables of the widely used Zebra LS2208.
Scanner type | Hand-held scanner |
Connections | RS-232, USB |
Signal transmission | Cable, USB |
Item number | 10126636 |
Manufacturer | Zebra |
Category | Barcode scanners |
Manufacturer no. | DS2208-SR7U2100AZW |
Release date | 11.1.2017 |
Sales rank in Category Barcode scanners | 8 of 1534 |
External links |
Colour | Black |
Exact colour description | Black |
Scanner type | Hand-held scanner |
Barcode Scanner Version | Scanner only |
Scanning method | Imagers |
Barcode Scanner Features | Keyboard inscription |
Connections | RS-232, USB |
Signal transmission | Cable, USB |
Protection type (IP code) | IP42 |
Max. Drop height | 1.50 m |
Scanner functions | 1D barcodes, 2D barcodes |
Minimum print contrast | 25 % |
Max- Scan distance | 36.80 cm |
Scan performance | 762 Scans/s |
Stack codes | Aztec Code, Code 11, Code 128, Code 39, Code 93, Codebar, Composites, Data matrix, EAN, GS1 DataBar Expanded Stacked, MaxiCode, Micro QR Code, MSI/PLESSEY, PDF417, TLC-39, UPC |
Read angle lengthwise max. | 65° |
Read angle cross max. | 65° |
Image resolution | 640 x 480 pixels |
Display functions | Backlight |
Max. range | 10 m |
Battery type | Li-ion |
Battery life | 100 h |
Capacity | 2400 mAh |
Voltage | 5 V |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | USB cable |
Length | 99 mm |
Width | 66 mm |
Height | 165 mm |
Weight | 161.60 g |
Length | 23.50 cm |
Width | 20 cm |
Height | 11.50 cm |
Weight | 374 g |
