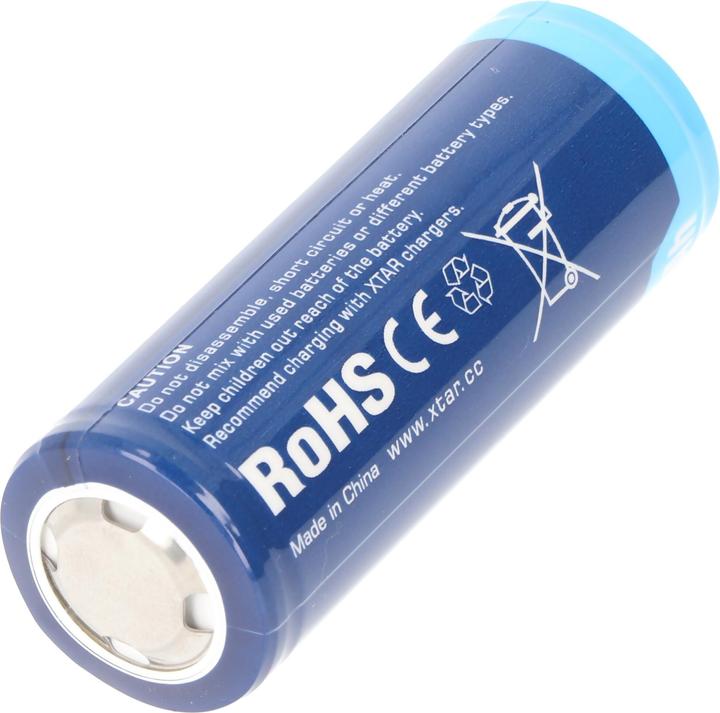

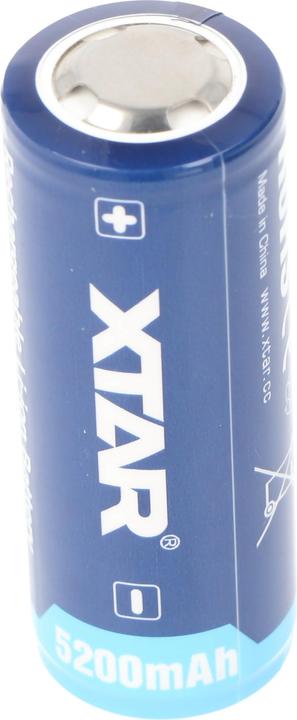

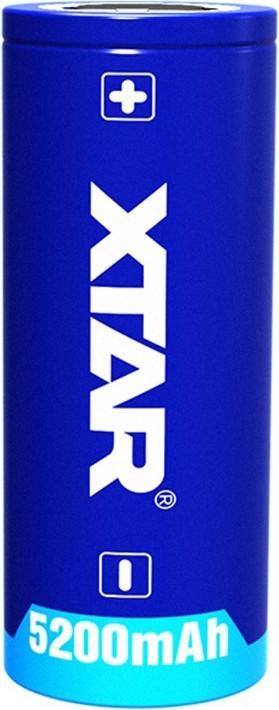

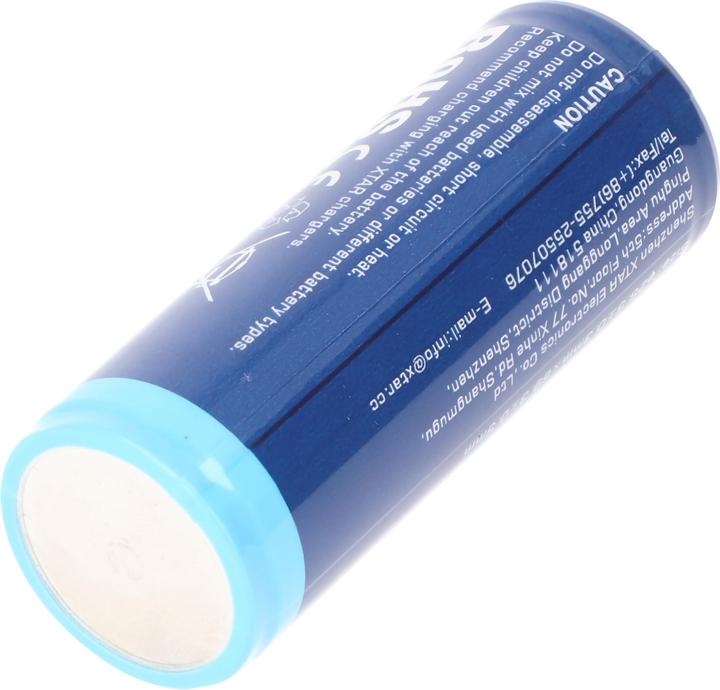

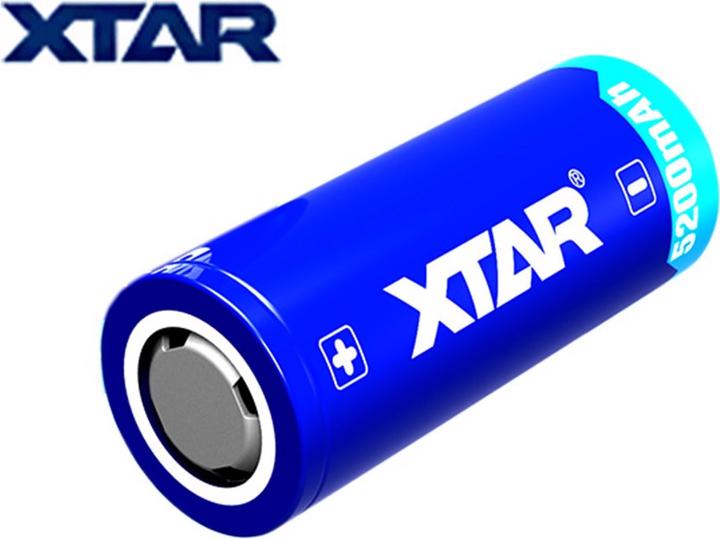

Xtar Battery 26650 PCB protected, 26.5x68.2mm

High-quality cell with long lifespan and high cycle stability. Protection/PCB with short circuit, overcharge, and deep discharge protection. Designed for use in flashlights, LEDs, industrial applications, battery holders, and model building.

XTAR 26650 Lithium-Ion Battery with PCB protection.
Capacity: 5200 mAh
Min. Capacity: 5140 mAh
Nominal Voltage: 3.6 V - 3.7 V
Charge Termination Voltage: 4.2 V ± 0.05 V
Discharge Termination Voltage: 2.75 V

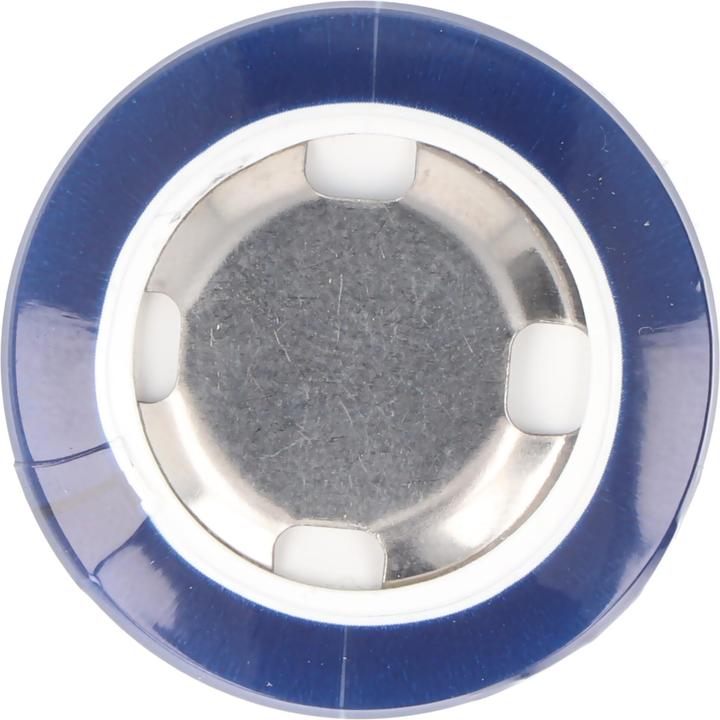

Positive Terminal: flat (Flat Top)
Max. Discharge Current (Continuous Load): 7 A
PCB Protection Circuit: Yes (7 A)
Charging Method: CC-CV
Diameter: 26.50 mm ± 0.3 mm
Height: 68.2 mm ± 0.5 mm
Weight: 98.0 g ± 1 g

Safety Note: Please be aware that removing or damaging the protection electronics (PCB) can lead to a short circuit, fire, or explosion.

Additional Features: High-quality cell with long lifespan and high cycle stability. Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by high energy density.

Delivery includes: 1x XTAR 26650 battery

Technical specifications for "XTAR 26650 - 5200 mAh, 3.6 V - 3.7 V Li-Ion Battery PCB protected":
Normal Charge Current/Charge Time: 0.xx - 1000 mA
Fast Charge Current/Charge Time: 1500 mA/3.5 h
Operating Temperature Charging: 0 °C - 45 °C
Operating Temperature Discharging: -20 °C - 60 °C

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and number of charge cycles (potentially doubling it). Only lithium-ion chargers should be used for charging.
