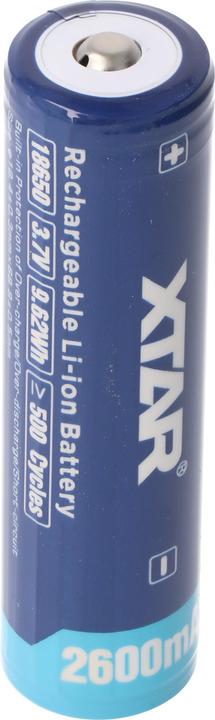

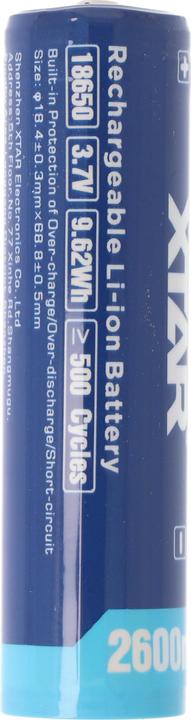

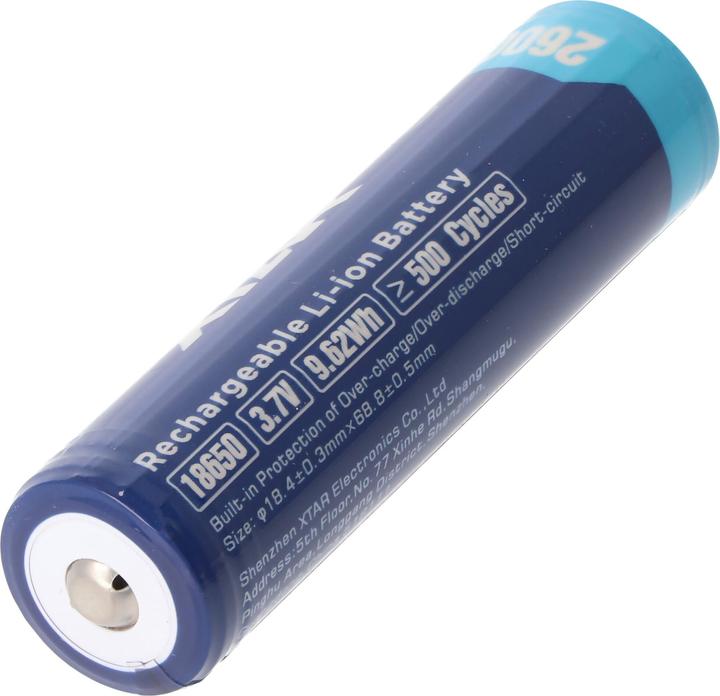

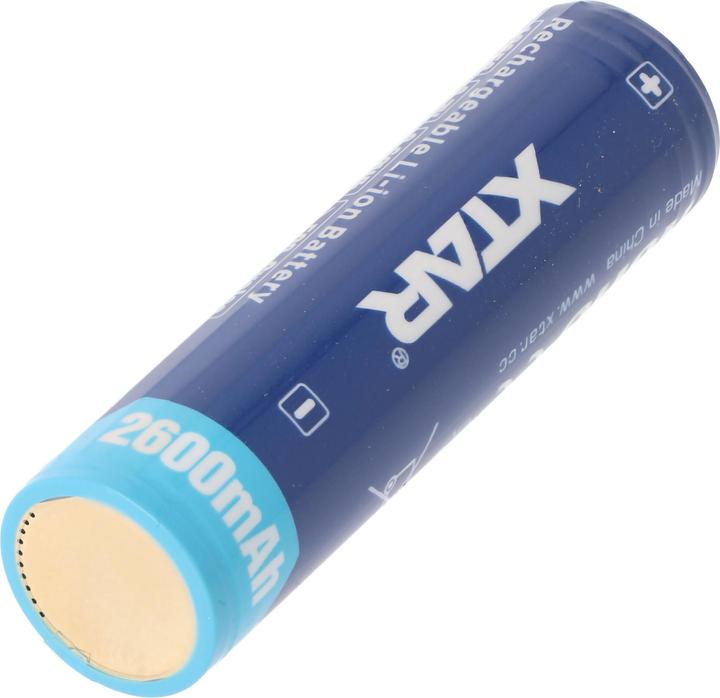

Xtar 18650 2600mAh 3.6V - 3.7V Li-Ion battery protected with head, dimensions 69.50x18.4mm

18650, 2600 mAh
Ratings
Delivered between Tue, 29.7. and Fri, 12.9.
Supplied by

Product details

XTAR 18650 2600mAh 3.6V - 3.7V Li-Ion battery with protection. Dimensions: 69.50 x 18.40 mm. Short and compact, our battery introduces itself:

  • Lithium-Ion battery
  • Voltage: 3.6 - 3.7 volts, capacity: 2600mAh
  • Protection against short circuits and overcharging
  • Please pay attention to the cell dimensions before ordering

The XTAR 18650 Li-Ion battery is protected against overvoltage, undervoltage, short circuits, and reverse polarity. It has been designed for use in industrial applications, flashlights, LEDs, etc. Please check the cell dimensions before purchasing. Due to the built-in electronics, the cell is not suitable for every application and is larger than a standard 18650 cell without PCB (protection circuit).

The rechargeable lithium-ion battery has the following technical specifications:

  • Voltage: 3.6 - 3.7 volts
  • Capacity: 2600mAh
  • Minimum capacity: 2450mAh
  • Charge termination voltage: 4.20V ± 0.05V
  • Maximum discharge current PCB: 4.5A
  • Discharge termination voltage: 2.75V
  • Protection: present (PCB)
  • Positive terminal: raised (Button Top)
  • Chemistry: LiNiCoAlO2
  • Dimensions: 69.50 mm ± 0.50 mm / 18.4 mm ± 0.30 mm
  • Weight: 47 grams
  • Charging method: CC-CV

Please note that lithium cells should only be used by qualified individuals. Improper handling or short circuits can lead to fire or explosion. The height is 68.50 mm and the diameter is 18.40 mm. The weight of the XTAR Li-Ion 18650 cell is 47 grams.

Key specifications

Battery type
Li-ion
Voltage
3.60 V
Item number
39074383

General information

Manufacturer
Xtar
Category
Batteries
Release date
2.10.2023

Battery properties

Battery size
18650
Voltage
3.60 V
Battery type
Li-ion
Battery capacity
2600 mAh

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Height
69.50 mm
Diameter
18.40 mm
Weight
47 g

Ingredients and instructions for use

Ingredients
XTAR 18650 2600mAh 3.6V - 3.7V Li-Ion battery protected with head, dimensions 69.50x18.40mmshort and compact, our battery introduces itself✓ Lithium-ion battery✓ 3.6 - 3.7 volt voltage, 2600mAh capacity.t✓ Protection against short circuit and overcharge, dimensions 69.50mm x 18.40mm✓ before ordering, please be sure to note the dimensions of the cellXtar 18650 Li-Ion battery with 3.6V - 3.7V and 2600mAh. The battery is protected against overvoltage, undervoltage, short circuit and reverse polarity. The lithium-ion battery was developed for the areas of industry, torches, LEDs etc. ! Please note the dimensions of the cell before buying. Due to the built-in electronics, the cell is not suitable for every application and is larger than a standard 18650 cell without PCB (protective circuit).XTAR 18650 rechargeable lithium-ion battery, 18650 battery PCB (protected)Lithium-ion batteries are thermally stable and are therefore not subject to memory effect. Please note that lithium cells may only be used by competent persons. Incorrect handling or short-circuiting can lead to fire or explosion. The height is 68.50mm and the diameter is 18.40mm. The weight of the XTAR Li-Ion 18650 cell is 47 grams.Technical Data Voltage: 3.6 - 3.7 Volt Capacity: 2600mAh Minimum capacity: 2450mAh End of charge voltage: 4.20V ± 0.05V max. Discharge current PCB: 4.5A End of discharge voltage: 2.75V Protection: present PCB positive terminal: raised (button top) Chemistry:LiNiCoAlO2 Dimensions: 69.50 mm ± 0.50 mm / 18.4 mm ± 0.30 mm Weight: 47 grams Charging method: CC-CV.
