WaveShare Solar Power Manager (C) for 6-24V Solar Panel

Ratings
Delivered between Fri, 30.5. and Mon, 2.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

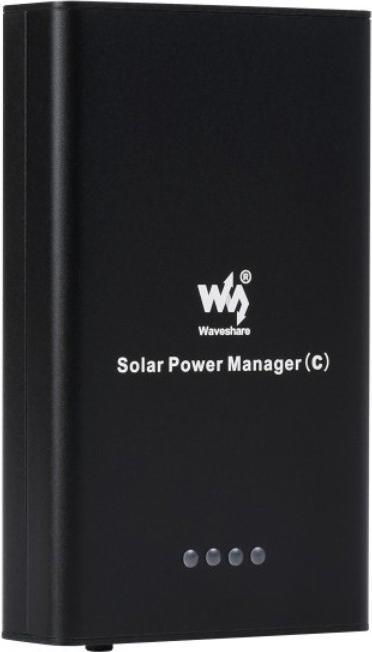

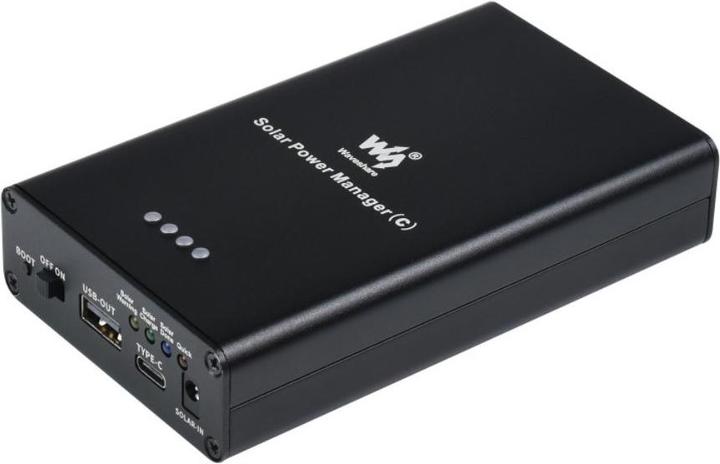

This is a solar power manager from Waveshare. The Power Manger supports panels from 6-24V, charging three 18650 Li-Ion batteries (not included) and providing a regulated 5V/3A output via either USB-A or USB-C. The battery can be charged via the USB-C or the solar cell and can be used like a conventional powerbank. If the power bank is only loaded with small currents, it goes into sleep mode and the output voltage drops to 2.5V.
CAUTION: Li-Ion and Li-Po batteries can catch fire or even explode if not used carefully. Always check the polarity of the batteries, never use batteries from different manufacturers at the same time and keep them out of the reach of children.

Recommended accessories:
3x Li-Ion battery 3.7V 3200mA NCR18650B 18650
18V 0.61A monocrystalline solar panel 10W

Features:

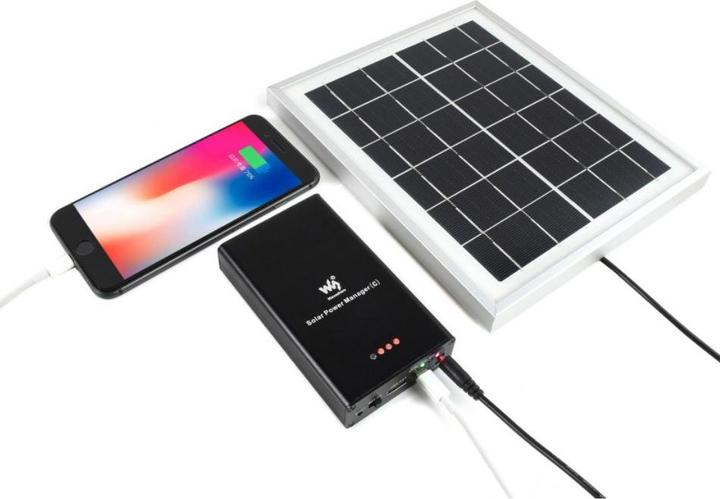

Batteries rechargeable via solar, USB or power port.
Compatible with 6-24V solar panel

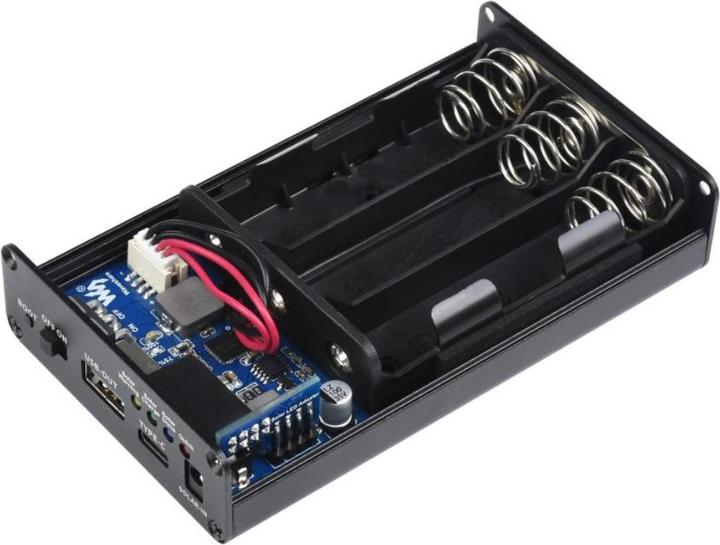

Compatible with 3x 18650 rechargeable Li-Ion batteries without protection electronics
Supports PD Quick Charge fast charging (PD/QC/FCP/PE/SFCP)
Simultaneous charging and discharging possible

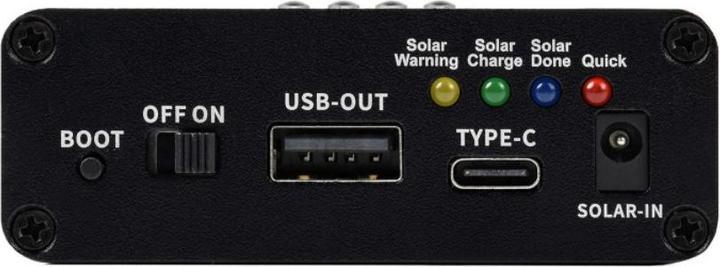

USB-C and USB-A connection

Technical details:
Manufacturer: Waveshare
Manufacturer SKU: 20909
USB interface : USB-C and USB-A
Input voltage: 6-24V solar panel, 5V USB
Output voltage: 5V
Output current: max. 3A
Solar Panel Charging Efficiency: 78
USB Charge Efficiency: 93
Battery Boost Output Efficiency: 92
Working temperature: -40°C to 85°C
Dimensions: 119 x 71 x 25.2mm
Weight: 137g

Scope of delivery:
1x Solar Power Manager (C) for 6-24V Solar Panel.
1x DC connector Male Barrel Jack 5.5mm/2.1mm with screw terminals.

Key specifications

Item number
25041056

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
5.4.2023

Power supply

Power supply
Solar panel, USB power delivery
Operating voltage
24 V

Connections

USB ports
USB-C

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x DC plug male barrel jack 5.5mm/2.1mm with screw terminals, 1x Solar Power Manager (C) for 6-24V solar panel

Product dimensions

Length
119 mm
Width
71 mm
Height
25.20 mm
Weight
137 g
