WaveShare HDMI Male Connector Vertical 90° Angled

0.02 m, HDMI
Ratings
Delivered between Tue, 3.6. and Wed, 4.6.
5 items in stock at third-party supplier
Supplied by

Product details

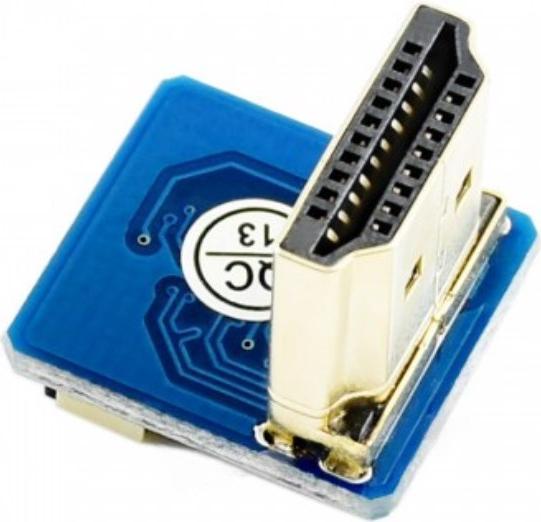

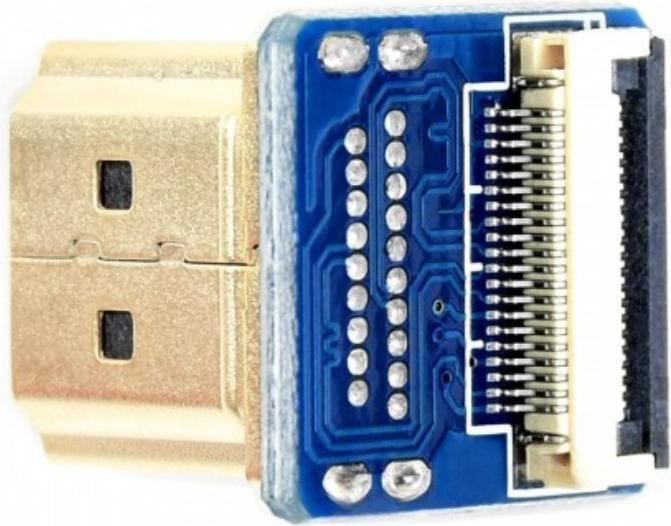

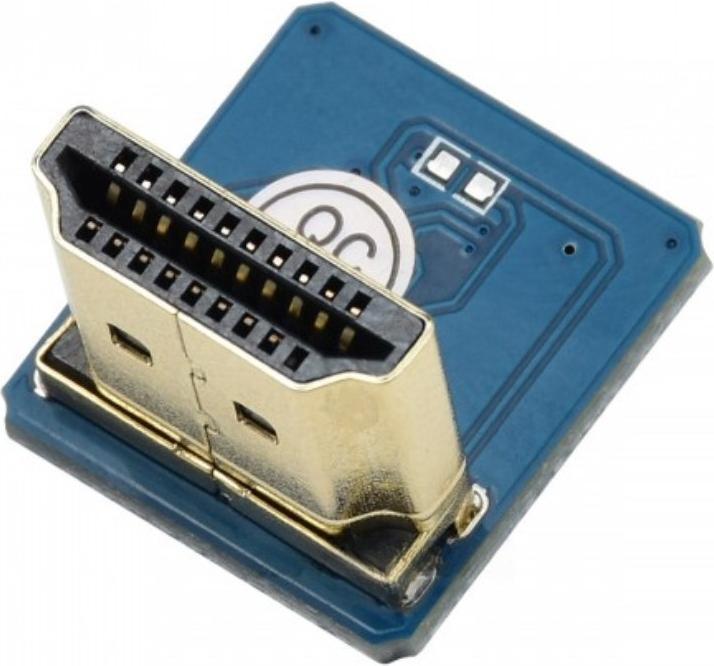

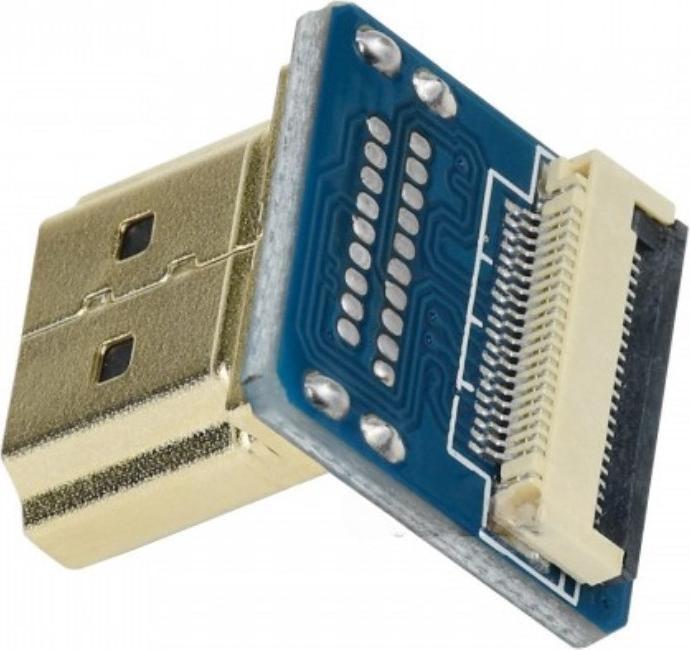

This is an HDMI connector from Waveshare's DIY HDMI system. The HDMI connector is mounted at a 90° angle to the board. Waveshare's DIY HDMI system allows you to create a custom HDMI cable tailored to your specific needs. It consists of modular FFC cables and connectors that you can combine as desired. Each cable requires one FFC cable and two connectors, resulting in an HDMI cable capable of transmitting video and audio data.

Recommended connection cables:
0.2 m DIY HDMI Cable FFC
0.5 m DIY HDMI Cable FFC
1 m DIY HDMI Cable FFC

Recommended HDMI connectors:
HDMI Male Connector Vertical 90°
HDMI Male Connector Horizontal
HDMI Female Connector Horizontal
Mini HDMI Male Connector Vertical 90°
Mini HDMI Male Connector Horizontal
Mini HDMI Female Connector Horizontal
Micro HDMI Male Connector Vertical 90°
Micro HDMI Male Connector Horizontal
Micro HDMI Female Connector Horizontal

Technical details:
Manufacturer: Waveshare
Manufacturer SKU: 14527
Type: HDMI Male
Orientation: Vertical
Dimensions: 18 x 16.5 x 16.5 mm
Weight: 3.3 g

Package includes:
1x HDMI Male Connector Vertical 90°.

Key specifications

Video cable type
HDMI cable
Cable connection
Connection (m/m)
Connection A
HDMI
Connection B
HDMI
Length
0.02 m
Item number
37769026

General information

Manufacturer
WaveShare
Category
Video cables
Release date
31.8.2023

Video cable properties

Video cable type
HDMI cable
HDMI cable type
HDMI standard
Type
Cable
Cable connection
Connection (m/m)

Plug type

Connection A
HDMI
Connection B
HDMI
Plug type
Gold-plated contacts

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Items per sales unit
1 Piece
Length
0.02 m
Depth
16.50 mm
Weight
3.30 g

30-day right of return
24 Months Warranty (Bring-in)
