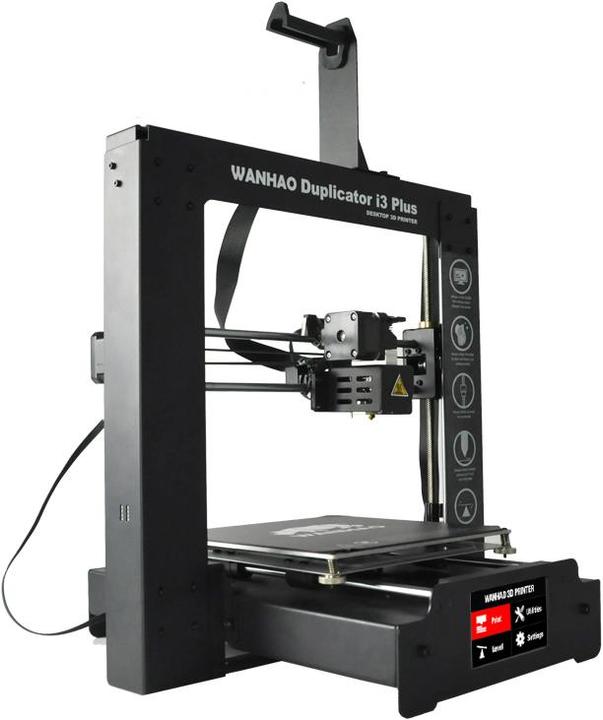

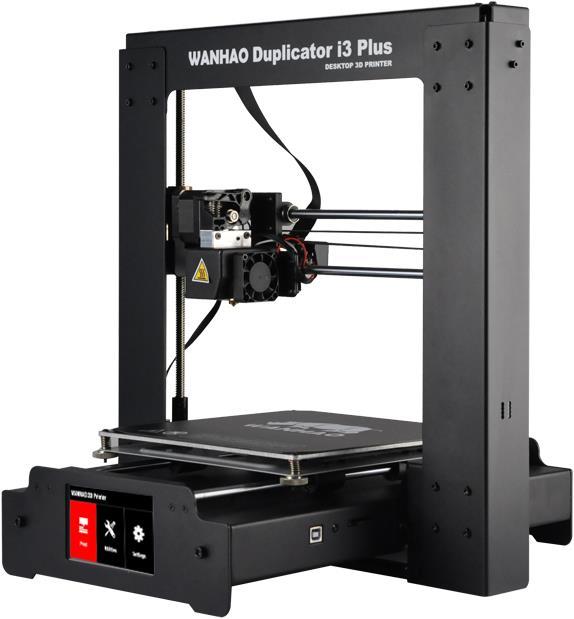

Wanhao Duplicator i3 Plus Mark II Actual product image
CHF 599.–

Wanhao Duplicator i3 Plus Mark II

Description

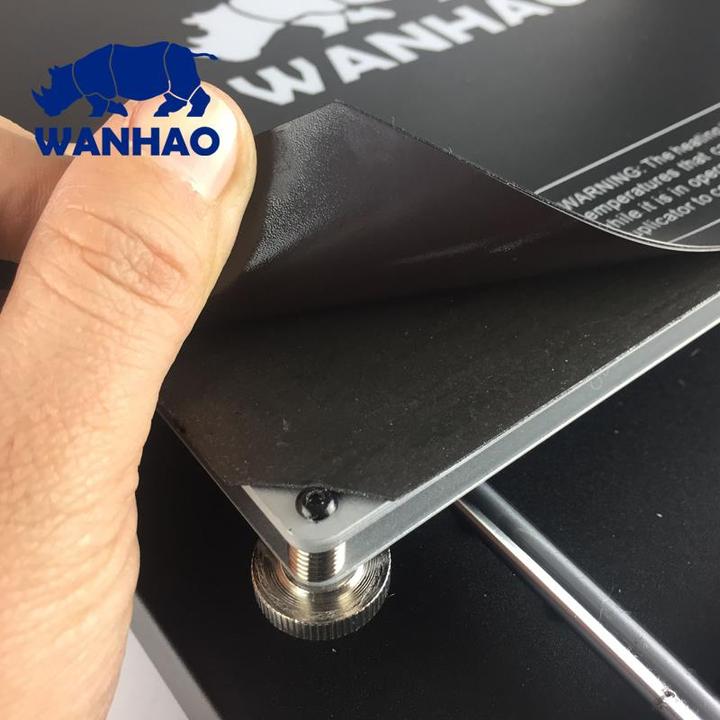

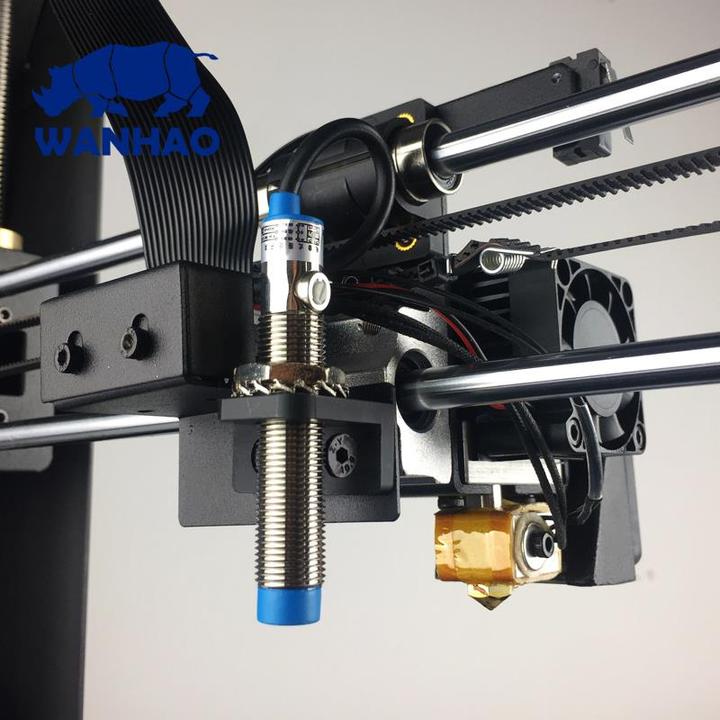

WANHAO Duplicator i3 Plus Mark II 3D Printer The new and improved version of one of the most popular printers of all time, the Wanhao i3 Plus. We are now introducing the i3 Plus MK2. The i3 Plus Mark II includes: New automatic levelling system You no longer have to worry about levelling your building panel. The i3 MK2 helps you to measure the distance between the building surface and the nozzle. If the surface is uneven for any reason, the software calculates the correct height and adjusts the pressure accordingly. Continue printing If the printer is not powered for any reason, the printer pauses and printing resumes when power is restored. This is a big improvement over the old version and also means that you no longer have to worry about faulty printouts after a power failure. Removable printing surface The new improved printing surface is equipped with a magnetic holding surface. This means that you can easily remove and bend the entire printing surface, then the finished print can be easily removed without having to remove your print with sharp instruments. Improved electronics Throughout the printing process Wanhao has improved the various components to make the MK2 more stable and reliable. Improved usability The MK1 was easy to use, but the MK2 has taken it one step further. The entire printer is now very intuitive and easy to use. Everything is displayed on the large touch screen, and even if you've never used a printer before, the step-by-step instructions make it easy to use. New MK10 all-metal direct drive extruder and hot end. The i3 Plus MK2 is equipped with the latest version of the well-known MK10 Het-End. This opens up new possibilities for you as a user, since you are no longer limited to materials with low temperatures. The hot end can now reach temperatures up to 300 ° C. SimpliFy3D compatible SimpliFy3D is one of the most popular slicing software on the market today. Very easy to use, but you can also go deeper than ever to manipulate any possible setting. SimpliFy3D gives you the freedom to manage your prints the way you want. The MK2 has a large display for easy operation and all electronics are integrated in the main structure, unlike many other printers in this segment that have a separate control box. The integrated electronics save a lot of space. The construction volume of 200 x 200 x 180 mm is more than enough for most users. The frame is made of metal, which of course provides a very stable and stable platform.

What's in the box:
the Duplicator i3 Plus Mark II printer

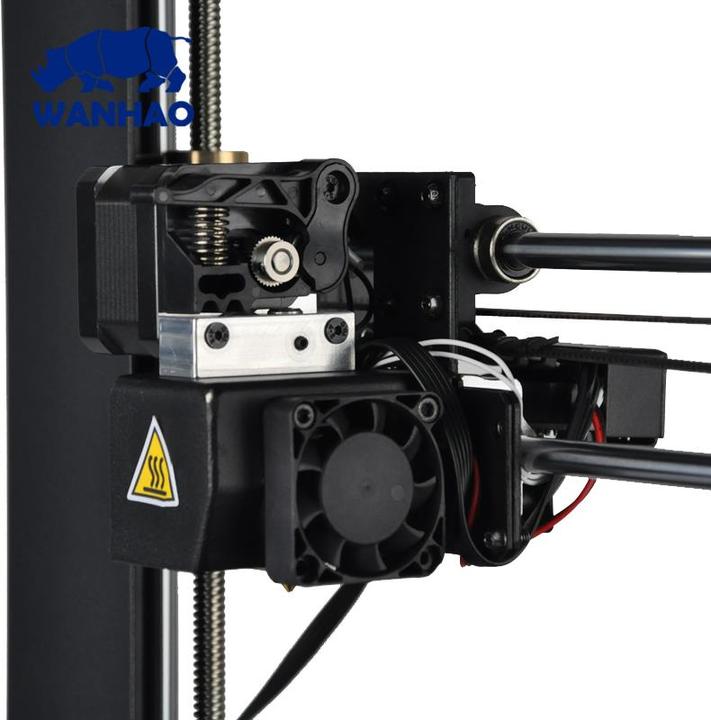

single step extruder MK10
1x spool holder
Hex wrench and bolt kit
1 x SD card
2 x Wanhao platform tape
10 meters PLA filament
1 x Power supply cable
1 x USB A to B cable
1 x filament stand
1 x Swiss Cable
more

Specifications

Key specifications

print materialABS, PLA, PVA, PET-G

General information

Manufacturer Wanhao
Product type 3D printers
Item number8193939
Manufacturer no.wanhao.i3.plus.Mk2
Release date13.04.2018

Colour

Colour group
Black
Colour designation
Black

3D printer properties

3D printer type
castes
3D printing resolution
100 microns (0.1mm)
3D printing method
Fused Filament Fabrication
i

Fused Filament Fabrication

Melt pressure process

Diameter filaments
1.75 mm
Number of extruders
1 x
Nozzle diameter
0.40 mm
Max. Print size (LxWxH)
200 x 200 x 180 mm
celerity
60 mm/s
heating
bald patch

Construction material / filament

print material
i

print material

3D printing filament is the thermoplastic feedstock for fused deposition modeling 3D printers. There are many types of filament available with different properties, requiring different temperatures to print.

More information...

ABS
i

ABS

ABS (Acrylonitrile Butadiene Styrene) is relatively hard and stiff and has a high toughness. It is characterised by high resistance to temperature changes and low water absorption. Compared to the PLA, the ABS filament is more stable and has a higher heat tolerance. However, ABS is more prone to warping (bulging and warping of a component). LEGO bricks are made of ABS.

,
PLA
i

PLA

Unlike ABS, PLA is not prone to warping and is therefore ideal for beginners. PLA also has a high surface hardness, stiffness and tensile strength. In addition, the UV resistance is very good and offers low flammability. A disadvantage compared to ABS filaments is the lack of impact strength of the polyester.

,
PVA
i

PVA

Like HiPS filaments, PVA (polyvinyl alcohol) serves as a support material for dual extruder printers. The most important advantage over HiPS is that PVA can be printed with more than just ABS.

,
PET-G
i

PET-G

PET-G (polyethylene terephthalate with glycol) is a PET material modified with glycol. Its main advantages over PET are its durability, impact resistance and that it does not become brittle and fragile when heated regularly. PET-G is also resistant to chemicals, flame-retardant and certified as a food-safe polymer.

Mechanical properties

Number of nozzle extruder units
1
Heated build plate
Yes

Connectivity

USB host
i

USB host

A USB device can be connected. Enables features such as recording or playback from USB flash drive (depending on the device).

Yes
USB
1 x
SD card
Yes

Software

Supported file formats
STL
,
OBJ
Operating system compatibility
Linux
,
Windows
i

Windows

Microsoft Windows is a series of graphical interface operating systems developed, marketed, and sold by Microsoft.

More information...

,
Mac OS X
i

Mac OS X

Mac OS X (official language: Mac OS Zehn, from the old Roman X for 10, since version 10.8 only OS X) is an operating system developed by Apple.

More information...

Product dimensions

Length
40 cm
Height
41 cm
Depth
40 cm
Weight
10 kg
