Wanhao Duplicator 6

Currently out of stock

Product details

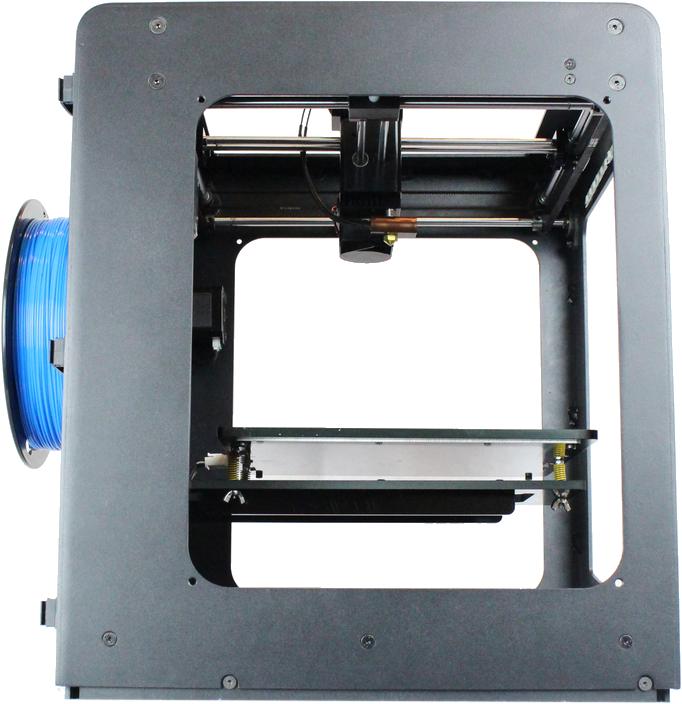

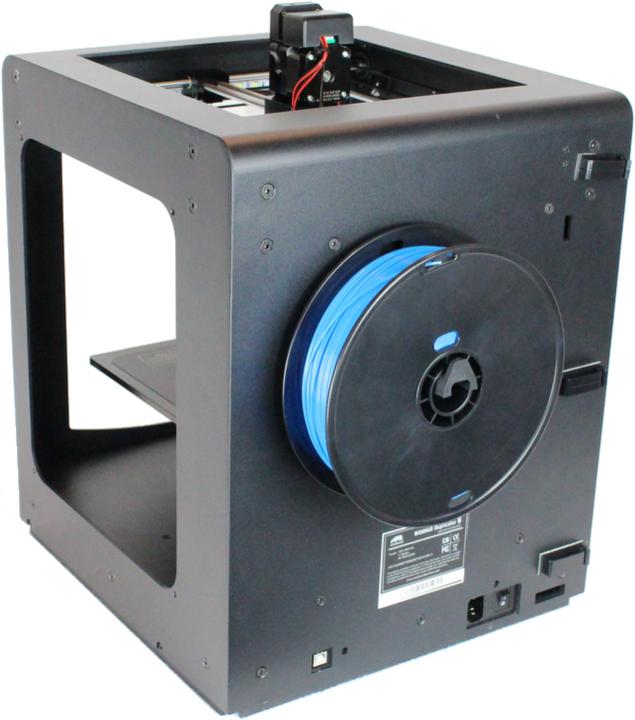

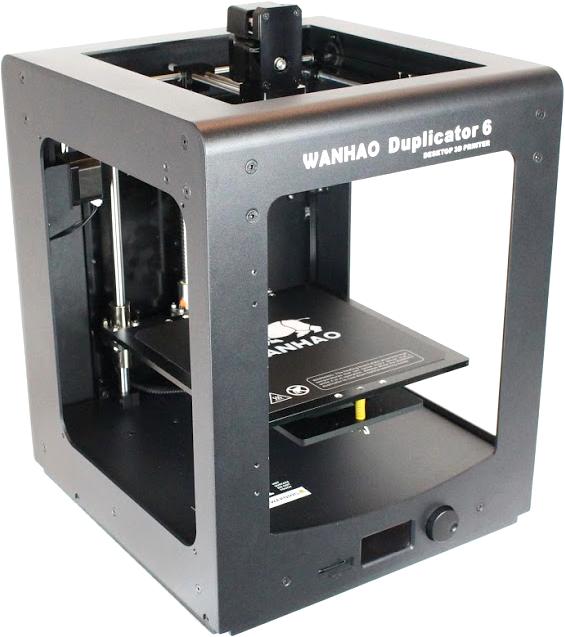

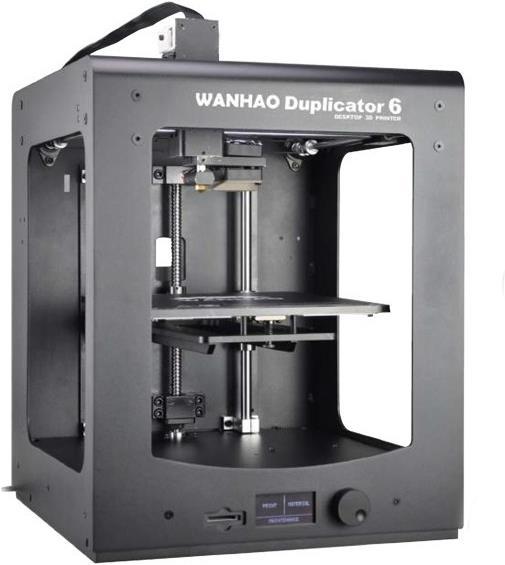

Wanhao Duplicator 6 with Enclosed Build Chamber

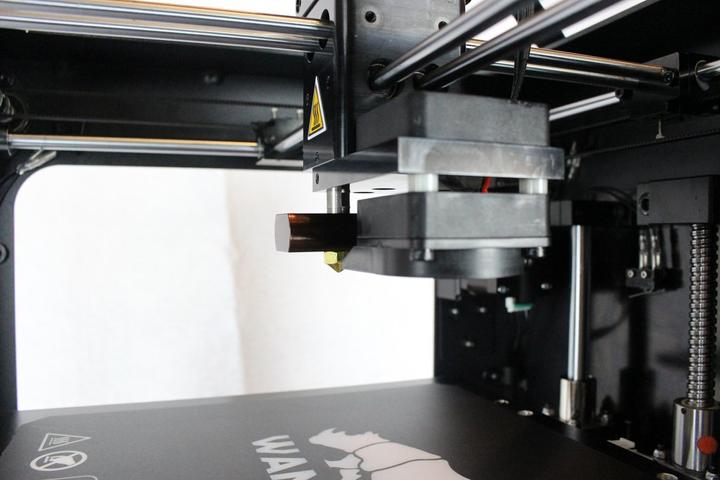

Completely new MK11 Extruder as standard
Includes 1 kg of Wanhao Filament
Wanhao Edition of Cura Software
Compatible with Simplify3D

The Wanhao Duplicator 6 is one of the best 3D printers in its class. The Duplicator 6 features an intuitively operated LCD display integrated into the housing. Printing can be done directly from the SD card slot without a PC, using all types of printing materials such as PLA, ABS, HIPS, PETG, ABS+, Wood, and Nylon. By default, the Duplicator is delivered with the Wanhao Cura Slicer Software, but it is also pre-installed with the popular Simplify3D software.

Technical Specifications
Technology: Fused Filament Fabrication (FFF)
Build Area / Print Volume: 200 x 200 x 180 mm
Layer Thicknesses: 20 microns, 60 microns, 100 microns
Print Speed: 30 mm - 150 mm/s
Tolerance: X 12.5 microns, Y 125 microns
Nozzle Temperature: 260 °C (short-term), 240 °C (long-term)
Heated Bed: Max. 100 °C
Materials: PLA, ABS, HIPS, PETG, ABS+, Wood, etc.
Filament Size: 1.75 mm
Connections: USB, Mini SD Card
Housing: Powder-coated heavy aluminum
Included Software: Cura - Wanhao Edition
File Format: STL, OBJ, DAE
Product Dimensions: 400 mm x 410 mm x 300 mm
Nozzle Diameter: 0.4 mm
Weight: 12 kg
Packed Weight: 17 kg.

Key specifications

Max. print size (LxWxH)
200 x 200 x 180 mm
3D printing resolution
100 microns (0.1mm)
3D printing method
Fused Filament Fabrication (FFF)
Print material
ABSNylonPLAWood
Connectivity
SD cardUSB hostUSB stick
Item number
6190331

General information

Manufacturer
Wanhao
Category
3D printers
Manufacturer no.
wanhao.duplicator.6
Release date
20.3.2017

Colour

Colour
Black

3D printer properties

3D printer type
Enclosure
3D printing resolution
100 microns (0.1mm)
3D printing method
Fused Filament Fabrication (FFF)
Filament diameter
1.75 mm
Number of extruders
1 x
Nozzle diameter
0.40 mm
Max. print size (LxWxH)
200 x 200 x 180 mm
Heating
Plate

Construction material / filament

Print material
ABSNylonPLAWood

Mechanical properties

Mechanical features
Heated building panel

Connectivity

Connectivity
SD cardUSB hostUSB stick

Software

Supported file formats
OBJSTL

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
40 cm
Height
41 cm
Depth
30 cm
Weight
12 kg
