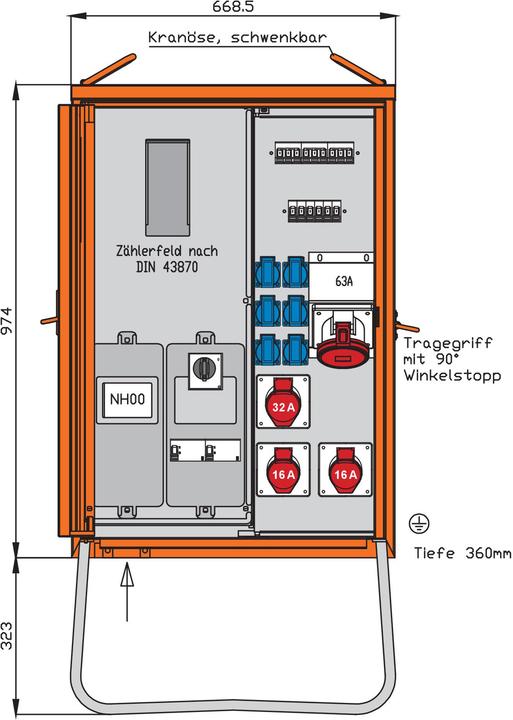

Walther Connection distributor WAV0170R1 44kVA meterpl.2 RCDs type B 9 LS 4

The Walther connection distributor WAV0170R1 is a robust and versatile cable box designed for a connection capacity of up to 44 kVA. It complies with the standards IEC61439-4 and DIN/VDE 43868/1, providing a reliable solution for the distribution of electrical energy. The housing is made of electrolytically galvanized steel sheet and is coated with a heavy metal-free plastic finish in RAL 2004 (pure orange). The distributor is equipped with a single door that can be secured with a padlock using a spring-loaded latch. Additionally, it features lifting eyes and side handles to facilitate transport. The connection distributor comes with a hot-dip galvanized base frame that includes eyes for ground stakes, offering protection ratings of IP 44 for the housing and IP 54 for the measuring device. These features make the WAV0170R1 an ideal choice for use in demanding environments.

• Compliance with standards IEC61439-4 and DIN/VDE 43868/1
• Robust housing made of electrolytically galvanized steel sheet
• Versatile connection options with various RCD circuit breakers and CEE socket outlets
• Protection rating IP 44 for the housing and IP 54 for the measuring device
• Includes hot-dip galvanized base frame with eyes for ground stakes.
