Wago Pin header

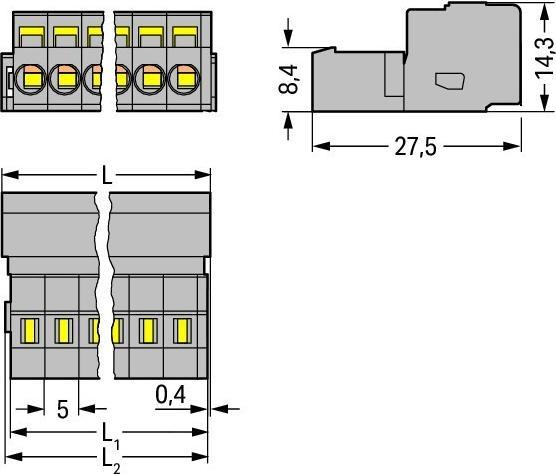

WAGO GmbH & Co. KG male connector 231-617. Manufacturer: WAGO GmbH & Co. KG. Designation: Male connector, 17-pin, 5mm. Type: 231-617. Connection type: PCB to cable. Contact design: Pin. Number of poles: 17. Number of rows of plug contacts: 1. Contact pitch: 5 mm. Terminal pitch: 5 mm. Angle contact/conductor connection: 180° (horizontal). Rated current: 12 A. Rated voltage: 320 V. Rated impulse voltage: 4 kV. Overvoltage category: III. Pollution degree: 2. Connectable conductor cross-section flexible without ferrule: 0.08 to 2.5 mm². Connectable fine-stranded conductor cross-section with ferrule: 0.25 to 1.5 mm². Connectable solid conductor cross-section: 0.08 to 2.5 mm². Connectable conductor cross-section stranded: 0.08 to 2.5 mm². Electrical connection type: spring-loaded connection. Connectable cable type: round cable. Material of contact coating: tin. Material of contact: other copper alloys. Material of insulating body: thermoplastic. Material of housing: plastic. Coating of housing: uncoated. Housing colour: grey. Flammability class of insulating material according to UL 94: V0. With protective conductor: no. Operating temperature: -60 to 100 °C. Protection class (IP), mounted: IP10. WAGO GmbH & Co. KG male connector 231-617: further details, 1-conductor male connector CAGE CLAMP® 2.5 mm², spacing 5 mm, 17-pole, 2.50 mm², grey, EAN: 4044918258982.
