Wago Pin header

Ratings
Delivered between Tue, 30.9. and Tue, 7.10.
Supplied by
Conrad CH
free shipping

Product details

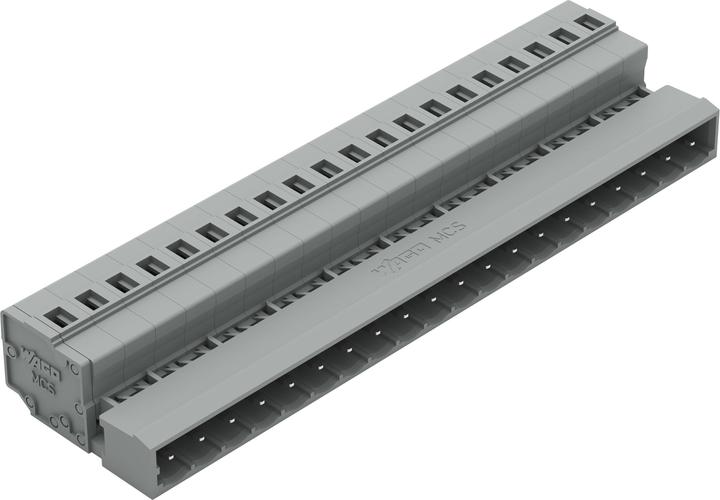

WAGO GmbH & Co. KG male connector 231-620. Manufacturer: WAGO GmbH & Co. KG. Designation: Male connector, 20-pin. Type: 231-620. Connection type: PCB to cable. Contact design: Pin. Number of poles: 20. Number of rows of plug contacts: 1. Contact pitch: 5 mm. Terminal pitch: 5 mm. Angle contact/conductor connection: 180° (horizontal). Rated current: 12 A. Rated voltage: 320 V. Rated impulse voltage: 4 kV. Overvoltage category: III. Pollution degree: 2. Connectable conductor cross-section flexible without ferrule: 0.08 to 2.5 mm². Connectable fine-stranded conductor cross-section with ferrule: 0.25 to 1.5 mm². Connectable solid conductor cross-section: 0.08 to 2.5 mm². Connectable conductor cross-section stranded: 0.08 to 2.5 mm². Electrical connection type: spring-loaded connection. Connectable cable type: round cable. Material of contact coating: tin. Material of contact: other copper alloys. Material of insulating body: thermoplastic. Material of housing: plastic. Coating of housing: uncoated. Housing colour: grey. Flammability class of insulating material according to UL 94: V0. With protective conductor: no. Operating temperature: -60 to 100 °C. Protection class (IP), mounted: IP10. WAGO GmbH & Co. KG male connector 231-620: further details 1-conductor male connector CAGE CLAMP® 2.5 mm². Spacing: 5 mm. 20-pole, 2.50 mm², grey. EAN: 4044918259149.

Key specifications

Cable + connector type
Cords
Cable length
0.03 m
Item number
36756368

General information

Manufacturer
Wago
Category
Cables + Plugs
Manufacturer no.
231-620
Release date
28.6.2023

Colour

Colour
Grey

Material

Material group
Plastic
Material
Plastic, Polyamide

Cable + Connector Features

Cable + connector type
Cords
Compatible hardware
Various
Max. temperature
100 °C
Min. temperature
-60 °C
Cable length
0.03 m
Manufacturer Type
231-620
Connectors Design
Plug, straight
Number of cores
20 x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
2.75 cm
Width
10.32 cm
Height
1.43 cm

30-day right of return
24 Months Warranty (Bring-in)
