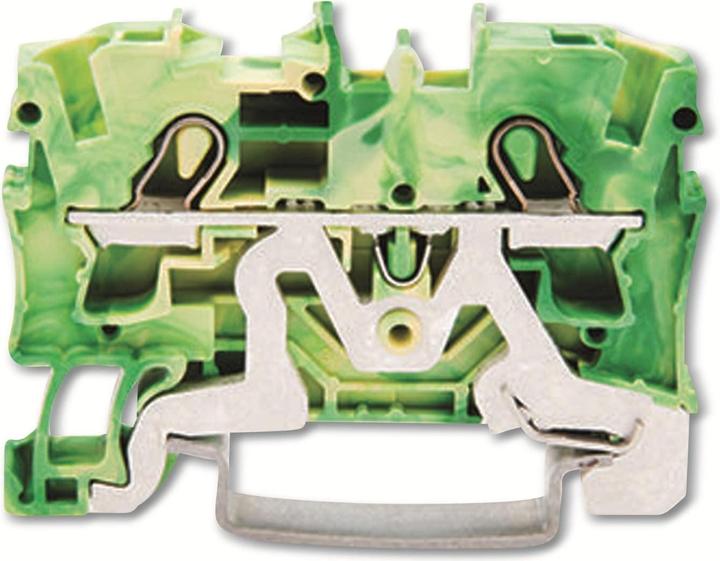

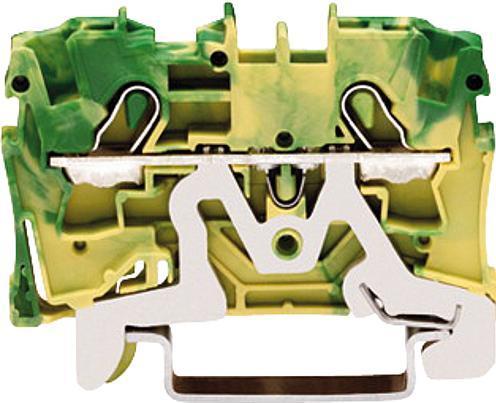

Wago Din Rail Terminal 2x 4 Mm2 Green/Yellow
Minimum order 10Supplied by
Elektro4000 DE
Free shipping starting at 50.–
Series: 2004
Wire size: 20 → 10 AWG
Cable cross section: 4 mm²
Color: Green/Yellow
Rated current: 32 A
Type of connection: Plug in
Operating voltage: 800 V
TOPJOBS series: 2 wires / 4 mm² terminal blocks. Terminal blocks for DIN rails TS 35 use CAGE CLAMP® technology and are up to 30% smaller than standard terminal blocks. Properties and advantages include direct insertion of rigid and flexible conductors with end tips, no tools required. Simple and fast bridging and test system. Easy and fast marking/labeling with clip-on markings on the central strip of the terminal block.
Item number | 9910438 |
Manufacturer | Wago |
Category | Electronics supplies + Casing |
Manufacturer no. | 2004-1207 |
Release date | 16.10.2018 |
Minimum order | 10 |
Order quantity steps | 10 |
Colour | Green, Yellow |
Compatible hardware | Various |
Manufacturer Type | 2004-1207 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | Green/yellow, Protective conductor terminal 4qmm |
Length | 142 mm |
Width | 6.20 mm |
Height | 52.30 mm |
