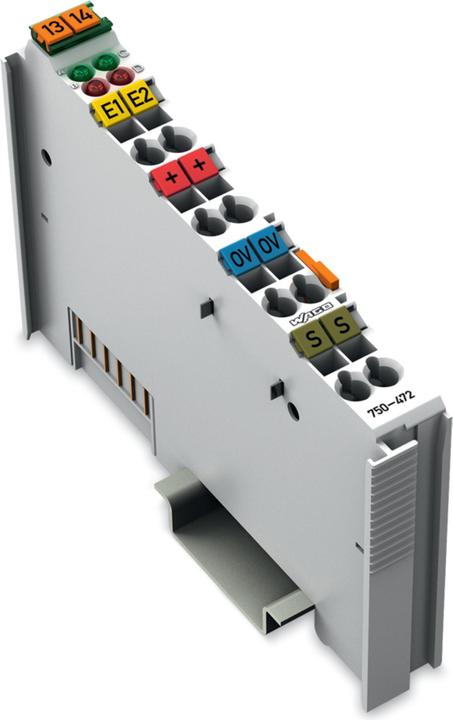

2-Channel Analog Input
0-20 mA
Single-Ended
16 Bit

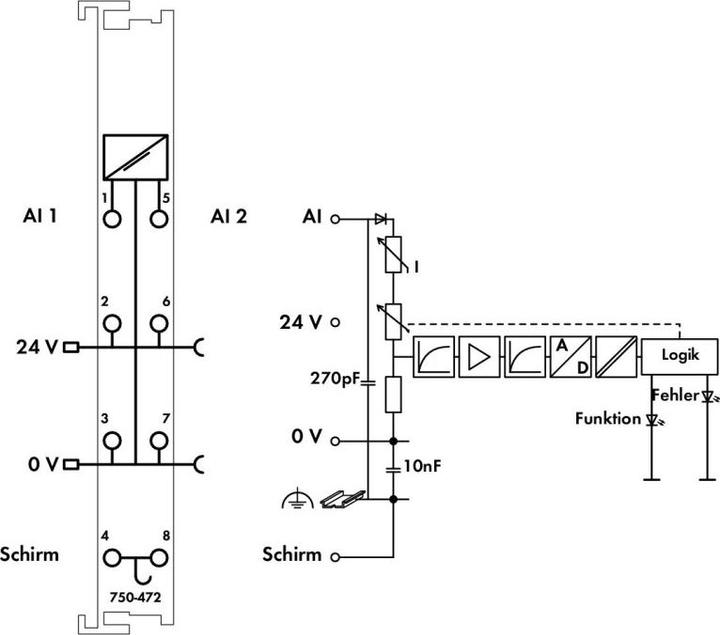

The analog input module is designed to power the field measuring transducers and to transmit analog measurement signals galvanically isolated to the bus system. The supply voltage of 24 V is fed through the power contacts for the field. The shield connection is directly routed to the mounting rail. The overload protection switches off the measurement input at a current of approximately 25 mA, putting it into a high-impedance state. This high-impedance state is automatically reset when returning to the normal measurement range. This module provides the power supply for 2-wire measuring transducers that do not have their own power supply.
Scope of delivery | 2-channel 0-20mA single |
Compatible hardware | Various |
Item number | 33052033 |
Manufacturer | Wago |
Category | Electronics modules |
Manufacturer no. | 750-472 |
Release date | 16.5.2023 |
Compatible hardware | Various |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2-channel 0-20mA single |
Length | 100 mm |
Width | 12 mm |
Height | 64 mm |
Weight | 55.50 g |
