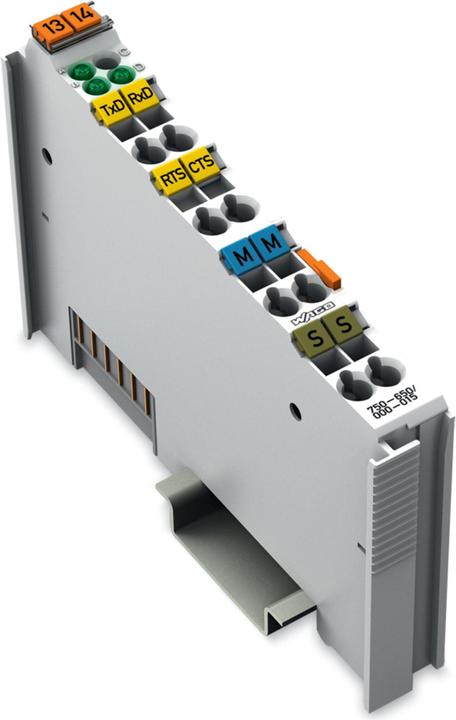

Product details
Serial Interface RS-232 C
4800 Baud
Even
8/1 Bits
5 Byte

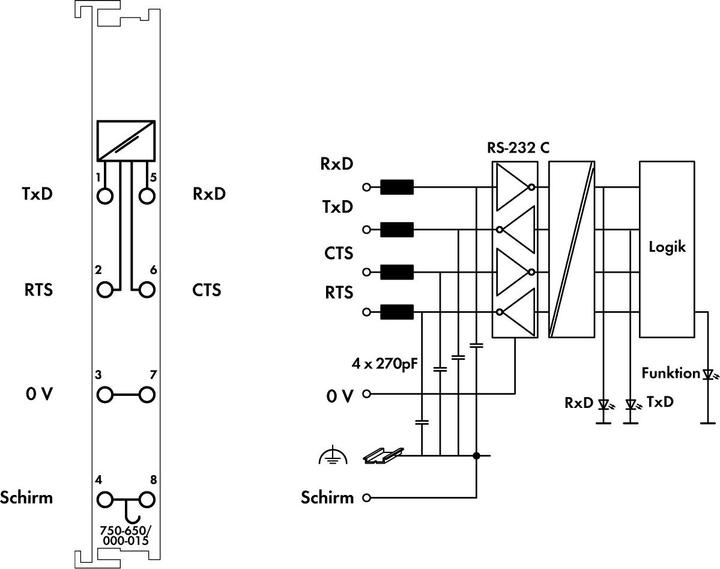

The integrated interface in the module allows for the connection of devices with an RS-232-C interface. The interface operates in accordance with TIA/EIA-F, CCITT V.28/DIN 66259-1 standards. The connected device can communicate directly with the control system via the used bus coupler. The active communication channel operates independently of the underlying bus system in full duplex mode at speeds of up to 4800 Baud. The RS-232-C interface ensures high noise immunity through galvanically isolated signals. The shield connection is directly routed to the mounting rail.
Compatible hardware | Various |
Scope of delivery | 1x serial interface |
Item number | 33376345 |
Manufacturer | Wago |
Category | Electronics modules |
Manufacturer no. | 750-650/000-015 |
Release date | 17.5.2023 |
Compatible hardware | Various |
Country of origin | Germany |
Scope of delivery | 1x serial interface |
Length | 100 mm |
Width | 12 mm |
Height | 69.80 mm |
Weight | 49 g |
