Product details

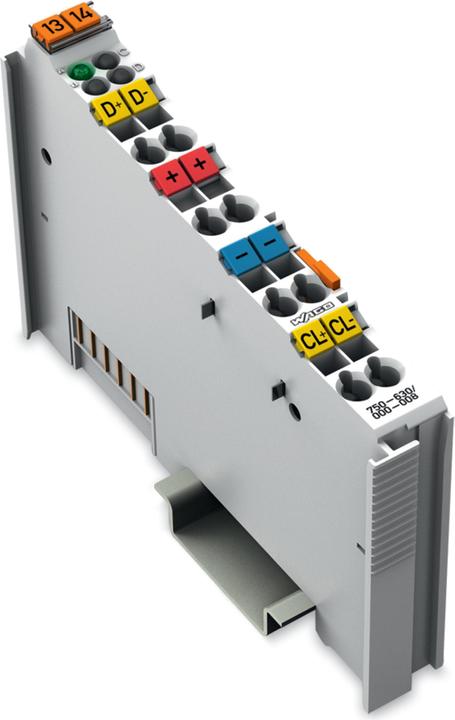

SSI encoder interface; 25 bit; 125 kHz; gray code. The terminal provides an SSI interface for the direct connection of an SSI encoder. The terminal outputs a clock signal for reading the encoder and makes the incoming data stream available to the control system as a data word in the process image. Different operating modes, transmission frequencies, and bit widths can be configured at the factory via control registers. The power supply for the encoder can be directly tapped from the terminal.
Compatible hardware | Various |
Item number | 33376322 |
Manufacturer | Wago |
Category | Electronics modules |
Manufacturer no. | 750-630/000-008 |
Release date | 17.5.2023 |
Compatible hardware | Various |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 100 mm |
Width | 12 mm |
Height | 69.80 mm |
Weight | 51.90 g |
