Wago 4-channel digital input and output terminal PROFIsafe 750-665/000-001 24 V/DC Content: 1 unit (

Safe digital input and output, 4/4 channels
DC 24 V
0.5 A

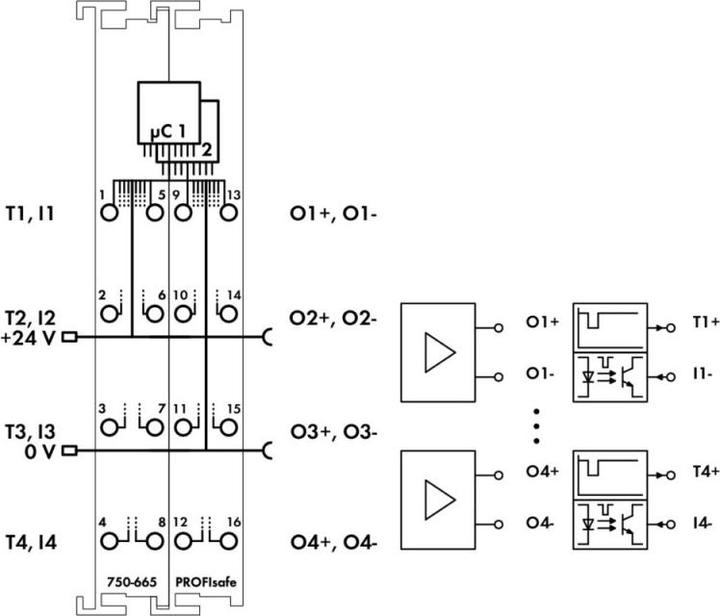

PROFIsafe The PROFIsafe input and output terminal 750-665/000-001 features 4 power outputs (O1 O4) and 4 clock-sensitive inputs (I1 I4), supplied by 4 differently clocked outputs (T1 T4).
The clock outputs are designed to be short-circuit proof. The inputs and outputs are continuously monitored for cross-circuit and external supply.
The signal state of the 4 input channels and the 4 output channels is indicated by a corresponding green LED for each. Additionally, 2 red LEDs signal internal or external errors.
The PROFIsafe address is set using the side-mounted coding switch.
Field and system levels are galvanically isolated from each other.
The arrangement of the individual input terminals can be configured freely in the fieldbus node during project planning. A block arrangement is not necessary.
Further information can be found in the manual!
When installing new systems, consider the safe 4-channel digital input and 4-channel digital output module PROFIsafe 75x-667/000-004.
The module can only be used under PROFIBUS in combination with the fieldbus coupler 750-333.
Please note that this module only supports PROFIsafe V1.3.
