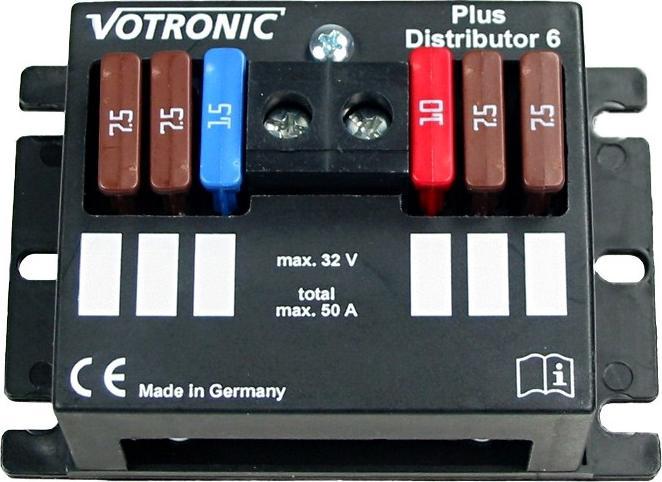

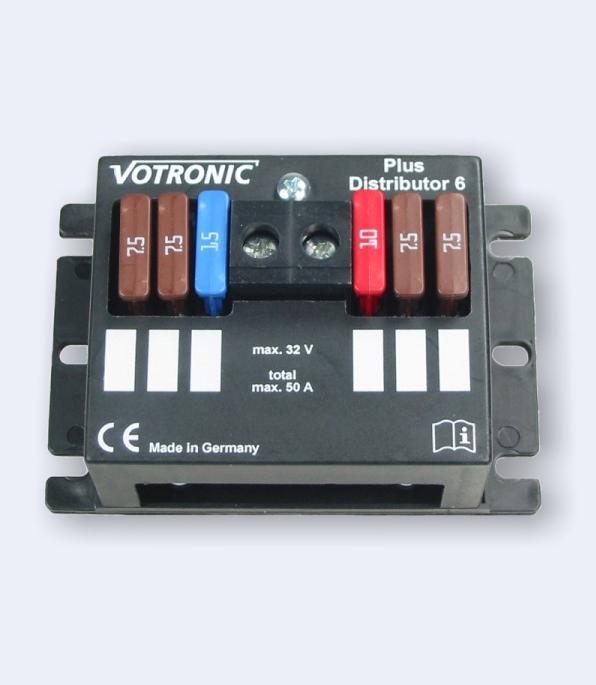

Votronic 3203 Plus Distributor 6 Circuit Distributor Motorhome

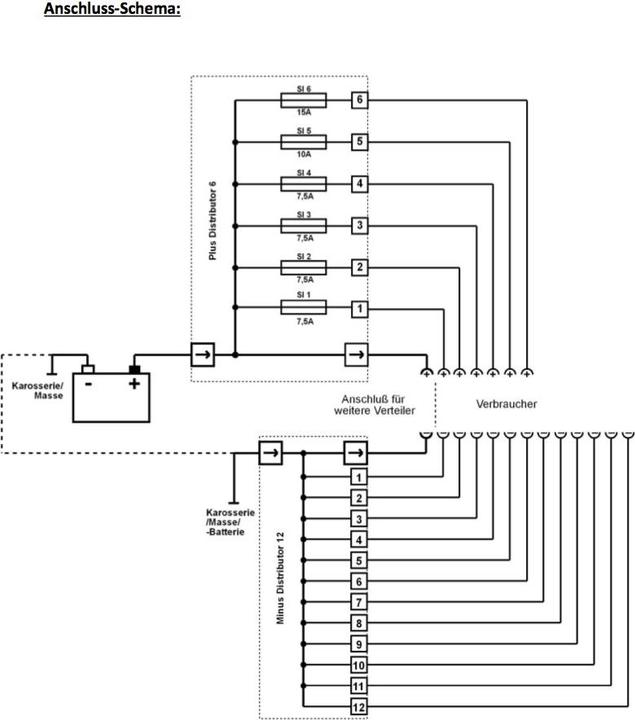

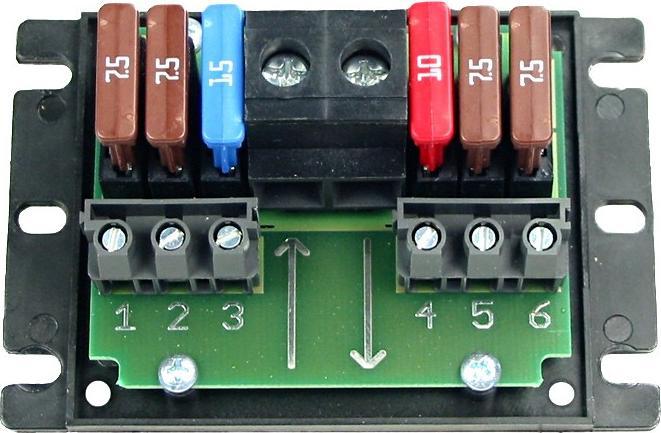

The compact, high-performance Plus distributor with 6 individual circuits allows for the proper distribution and protection of small to medium consumers on the battery's positive side. Two large terminal blocks (cable cross-sections up to 16 mm², maximum current load of 50 A) provide power supply from the battery and can also be used for additional positive pass-through distribution. The consumer-side fuse holders are designed for standard FKS fuses ranging from 1 A to 20 A; included are types 15 A, 10 A, and 4 x 7.5 A. The associated six distribution terminals allow for cable cross-sections up to 4 mm² with a maximum current load of 20 A. Labeling fields on the housing enable easy assignment of the fuses to their respective circuits. Suitable for 12 V and 24 V operation. Connection 1: Screw terminals with 2 large positive terminal blocks, cable cross-sections 6 mm², 10 mm², 16 mm², current loads: max. 36 A total current, max. 50 A total current. Connection 2: 6 small consumer-side terminal blocks, cable cross-sections: 0.75 mm², 1.5 mm², 2.5 mm², 4 mm², current loads: max. 6 A, max. 10 A, max. 15 A, max. 20 A.
