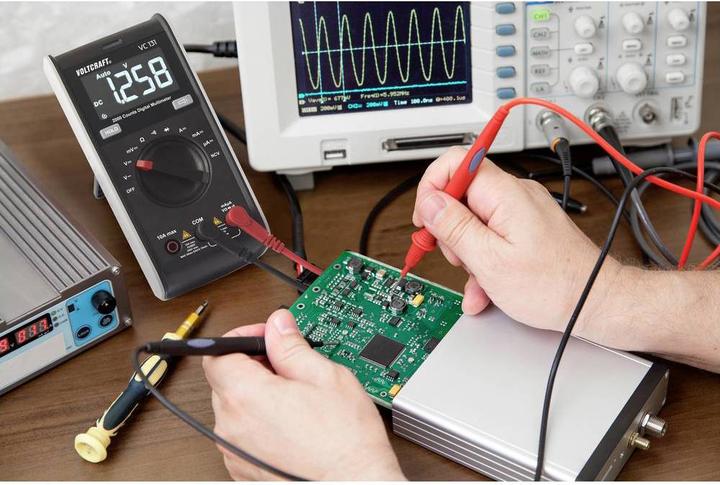

The Voltcraft Handheld Multimeter VC 131 is your robust entry-level device for various measurement tasks and replaces the highly successful predecessors (VC-130 and VC-135). The device features automatic range selection and can measure both DC and AC voltages. However, for current measurement, this entry-level device is limited to measuring direct current only.

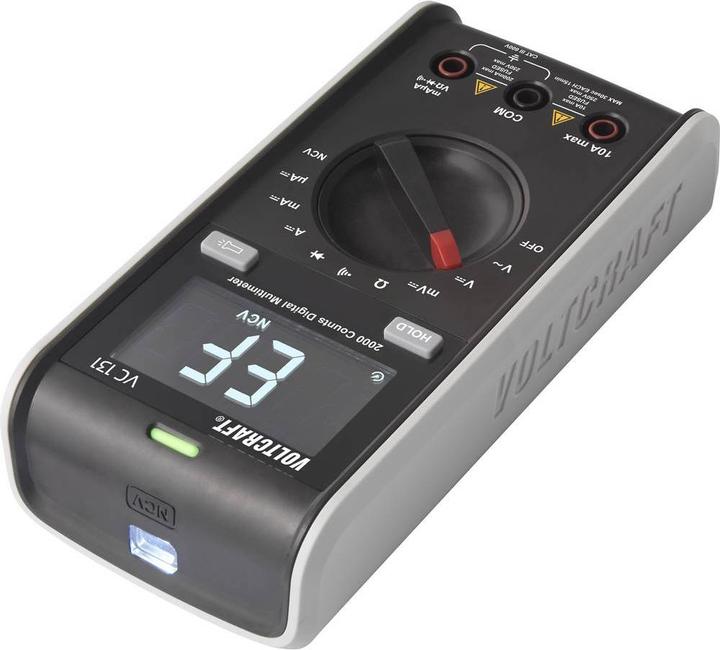

The impressive, clearly readable EBTN display is easy to read in both bright environments and darkness. With a display diagonal of 5.6 cm (2.2 inches), all digits and symbols are presented significantly larger, reducing the likelihood of reading errors.
Subtly integrated edges protect the display, the rotary switch, and all buttons. A meticulously crafted 2-component housing with integrated soft rubber protection not only ensures a good grip but also protects the measuring device during tougher applications.

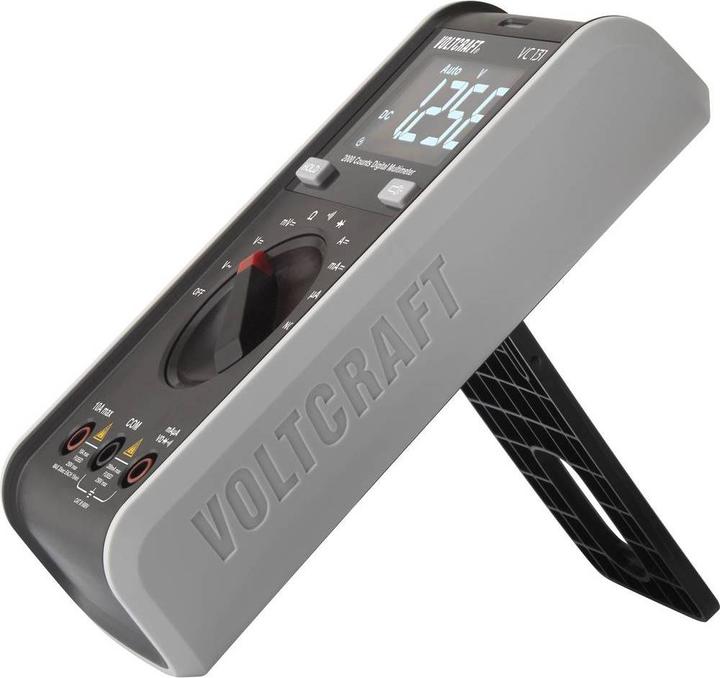

The wide soft rubber base provides significantly more stability when the stand is extended. The device remains in position whether lying down or standing with connected measurement leads. When stored without measurement leads, the rubberized edge protection prevents slipping, even when the device is lying on the display side.

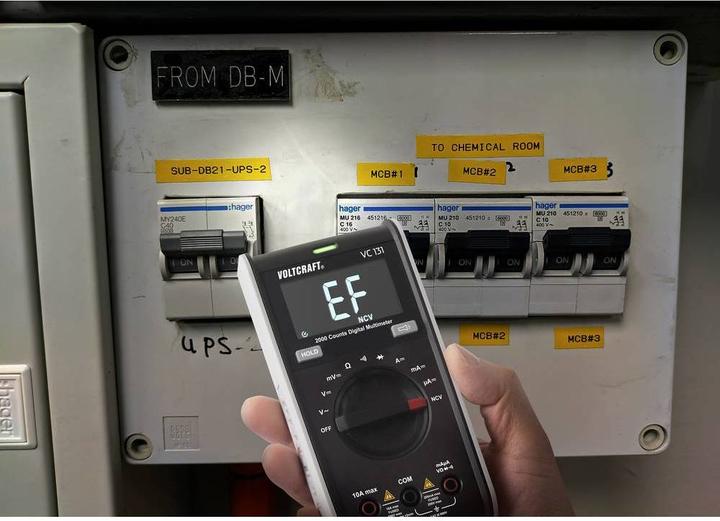

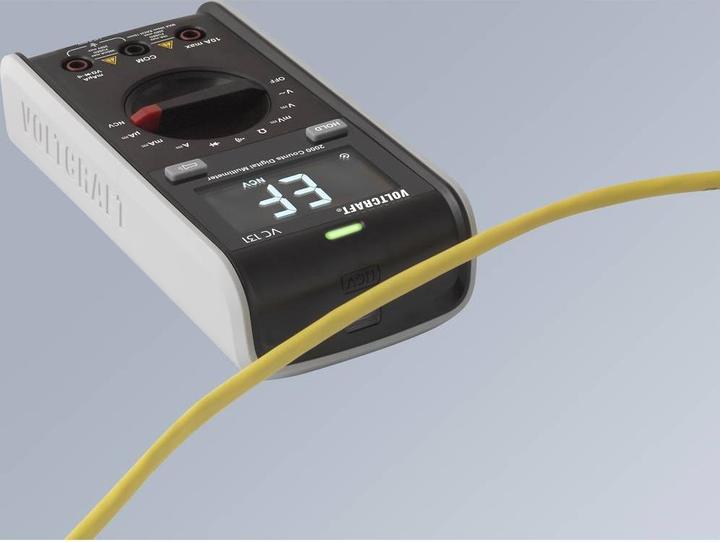

The built-in LED light makes it easier to navigate in the dark to the fuse box. An NCV sensor is integrated into the front of the housing, which detects the electromagnetic field generated by a live cable. This allows you to locate, for example, the position that leads to a break in a pinched extension cord, even through the insulation.

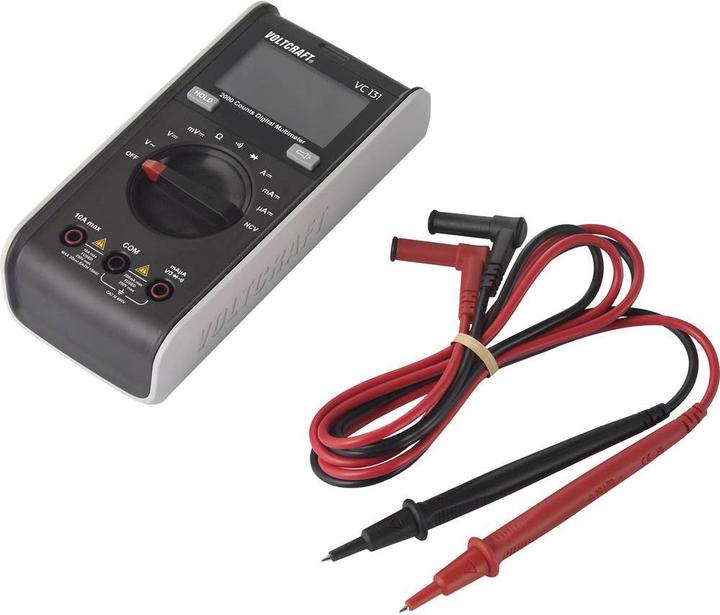

The measuring probes are optimally protected against contact. If necessary, a protective cap can be removed to measure, for example, in terminal blocks. The measuring lead is double insulated in two colors and features a wear indicator.
Multimeter type | Handheld multimeter |
voltage type | AC/DC |
measurement tolerance | 0.80 ± % |
multimeter technology | Digital |
measurement type | Mean value |
Item number | 20450928 |
Manufacturer | Voltcraft |
Category | Multimeter |
Manufacturer no. | VC-12232380 |
Release date | 8.4.2022 |
Sales rank in Category Multimeter | 37 of 3151 |
Material group | Plant materials |
Material | Rubber |
Multimeter type | Handheld multimeter |
multimeter technology | Digital |
Calibrated according to | Factory standard (without certificate) |
display type | Digital |
Manufacturer Type | VC131 |
voltage type | AC/DC |
current type | DC |
measurement tolerance | 0.80 ± % |
measurement type | Mean value |
measurement category | CAT III 600V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Multimeter 1 x 9 V battery 1 pair of test leads Instructions |
Length | 4 cm |
Width | 7.65 cm |
Height | 15.75 cm |
Weight | 0.26 kg |
Length | 17.50 cm |
Width | 12.70 cm |
Height | 6 cm |
Weight | 440 g |
