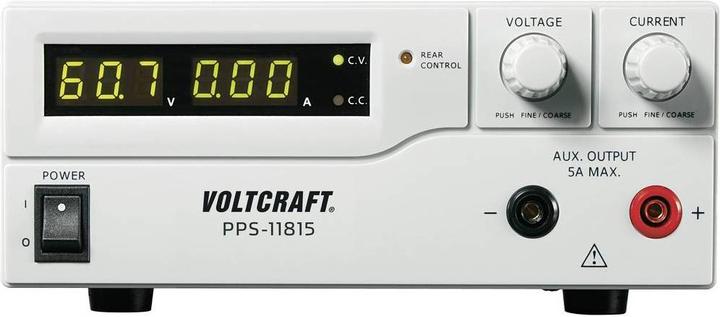

The PPS series laboratory power supply serves as a floating DC voltage source for operating low-voltage consumers. The adjustable output can be accessed from the front up to a maximum of 5 A and from the rear up to the full rated current (1 - 60 V/DC / 0 - 5 A). Connections are made at the front via 4 mm safety sockets and at the rear via high-current screw terminal sockets. Voltage and current settings are made continuously using digital rotary knobs with coarse and fine adjustments to allow for quick and precise value settings. The values are displayed on a clear screen. The current limit for constant current operation can be preset without a short-circuit bridge. Three freely programmable memory slots can be assigned different fixed voltages and current limits. Additionally, the power supply can be controlled via the included software and USB connection for operating cyclic processes through a PC. Up to 20 programmable voltage and current sets with varying durations can be programmed for operation. The cyclic processes can be repeated up to 999 times. Special feature: programmable.
Output voltage | 60 V |
Power | 300 W |
Electric current output | 5 A |
Item number | 8424211 |
Manufacturer | Voltcraft |
Category | Lab power supply |
Manufacturer no. | PPS-11815 |
Release date | 20.4.2018 |
External links |
Output voltage | 60 V |
Electric current output | 5 A |
ripple | 5 mW |
Power | 300 W |
Manufacturer Type | Pps-11815 |
Power supply | Electrical connection |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Power cable - USB cable - Software CD - Plug for remote connection - Operating instructions |
Additionally required (not included) | Software CD, USB cable |
Length | 208 mm |
Width | 200 mm |
Height | 80 mm |
Weight | 2400 g |
