Voltcraft Programmable laboratory power supply unit

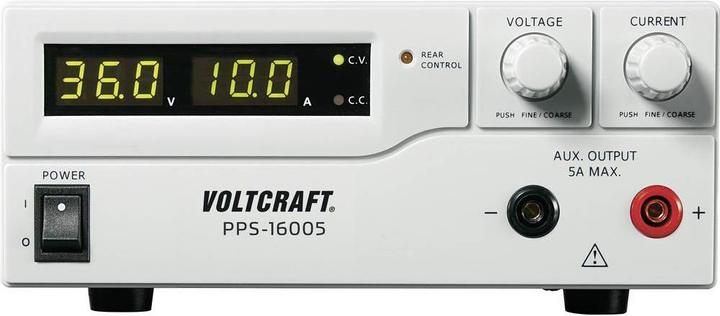

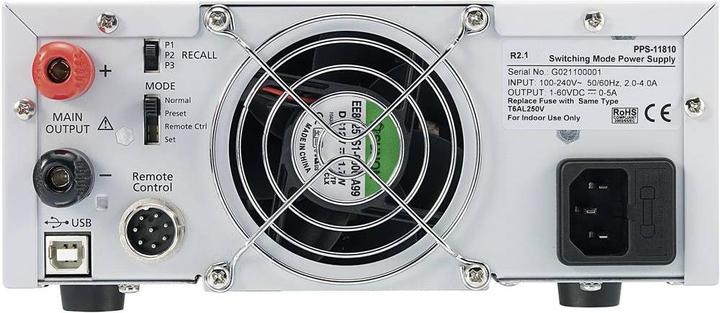

The PPS series laboratory power supply serves as a floating DC voltage source for operating low-voltage consumers. The adjustable output can be accessed from the front up to a maximum of 5 A and from the rear up to the full rated current (0 - 10 A). Connections are made at the front via 4 mm safety sockets and at the rear via high-current screw terminals. Voltage and current settings are made continuously using digital rotary knobs with coarse and fine adjustment to allow for quick and precise value setting. The values are displayed on a clear screen. The current limit for constant current operation can be preset without a short-circuit bridge. Three freely programmable memory slots can be assigned different fixed voltages and current limits. Additionally, the power supply can be controlled via a PC using the included software and USB connection for operating cyclic processes. Up to 20 programmable voltage and current sets with different durations can be programmed for operation. The cyclic processes can be repeated up to 999 times. Special feature: programmable.
