The linear regulated laboratory power supply provides distortion-free voltage across all load ranges and additionally features USB outputs for development, quality assurance, and charging processes. It is suitable for all applications in the lab where switch-mode power supplies reach their physical limits. The device is robust, short-circuit proof, overvoltage protected, and has a temperature shutdown feature.

USB Test and Development Socket: With the VOLTCRAFT VLP-2403 USB, a connected USB device can be stressed. More and more devices with USB host connections are being developed. Devices to be tested should be able to handle USB ports that do not always adhere to USB specifications. The VLP-2403 USB has this test and development socket built-in.

USB Current Limiter: An adjustable current limiter at the USB test socket simulates a USB connection that provides less than 500 mA. This allows for testing USB sticks to see if they can operate with lower power.

USB Under and Overvoltage: The USB voltage at the test socket can be continuously adjusted from 3.9 V to 6.2 V. At 5.1 V, the potentiometer clicks into place. For safety, the overvoltage mode must be activated separately. Undervoltage can be set at any time.

Precise Laboratory Voltage Adjustment: The 10-step potentiometer facilitates the exact adjustment of the output voltage from 0 - 40 V.

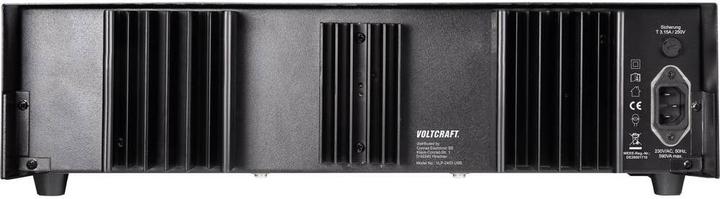

Silent Cooling: Unlike switch-mode power supplies, linear regulated power supplies must be adequately cooled. The VLP-2403 USB features oversized passive heat sinks. Fans are not necessary, and there is sufficient thermal reserve to fully load the laboratory power supply.

QuickCharge 2.0 Charging Socket: In addition to the USB test and development socket, another USB charging socket is built-in. Mobile devices or laboratory equipment with USB power supply can be easily supported in everyday lab use. Special feature: OVP.

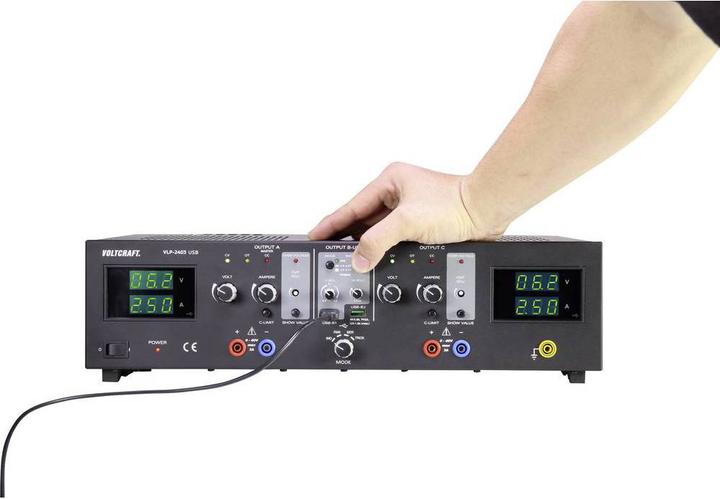

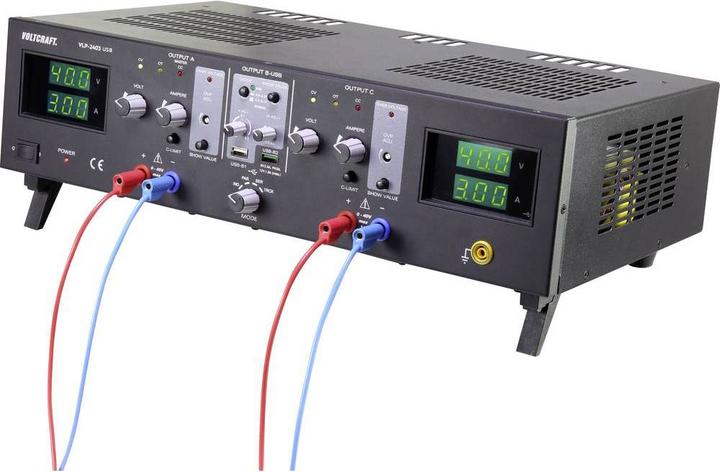

Actual product image Voltcraft Laboratory power supply unit, adjustable

Key specifications

Output voltage

Electric current output

Power

Switzerland

Conrad

Laboratory power supply unit, adjustable

Lab power supply

Cables + Plugs

Single board computer kits

Robotics kit

30-day right of return

General information

Power Supply Features

Power supply

Origin

Voluntary climate contribution

Scope of delivery

Product dimensions

The Voltcraft power supply provides a regulated voltage of 0-40 volts.

Adjustable output power

An independent USB charging port enables the power supply of mobile devices.

Integrated USB charging port
