Name: DOV1004 Digital-Oszilloskop 100 MHz 4-Kanal 1.25 GSa/s 50 Mpts 12 Bit
Brand: Voltcraft
SKU: 55132160
Price: 341 CHF
Availability: InStock

productDetailPageQuery

Voltcraft

High-quality, innovative, and compact. The DOV oscilloscope series from Voltcraft impresses with a host of technical highlights and maximum user comfort: a 12-bit resolution analog-to-digital converter is part of the standard equipment, along with USB, LAN, and HDMI interfaces. At the center is a 7-inch touchscreen with a resolution of 1024 x 600 pixels. It responds not only to touches but also to gestures, making cumbersome menu navigation largely unnecessary.

Outstanding technical specifications. All digital DOV oscilloscopes from Voltcraft operate with a maximum sampling rate of 1.25 GSa/s. The real-time capture is at 50,000 wfms/s, and the segmented capture is at 700,000 wfms/s, allowing for quick and accurate capture of irregular signals. The horizontal sampling speed ranges from 1 ns/div to 1000 s/div (1-2-5 steps).

Numerous trigger functions. One of the strengths of the DOV series from Voltcraft lies in its extensive trigger functions. Even difficult-to-trigger signals can be captured thanks to trigger types such as edge, video, pulse, slope, runt, window, timeout, Nth, logic, RS232/UART, I2C, SPI, CAN, and LIN triggers.

Specifications of the Voltcraft DOV1004. The DOV1004 features a bandwidth of 100 MHz and four analog inputs. The signal recording length is 50 M, and for clear display and analysis, real-time signal waveform display on the PC is possible. The four inputs CH1 to CH4 serve as trigger sources, and users can choose between sampling modes: sample, peak, high resolution, average, and segmentation. The vertical sensitivity is adjustable from 500 µV/div to 10 V/div.

Delivery package with accessories. The Voltcraft DOV1004 comes with a USB Type-C power supply, USB cable, four test probes, and two probe adjustment sets. Additionally, the package includes software with an English manual on CD, a quick start guide, and the safety data sheet.

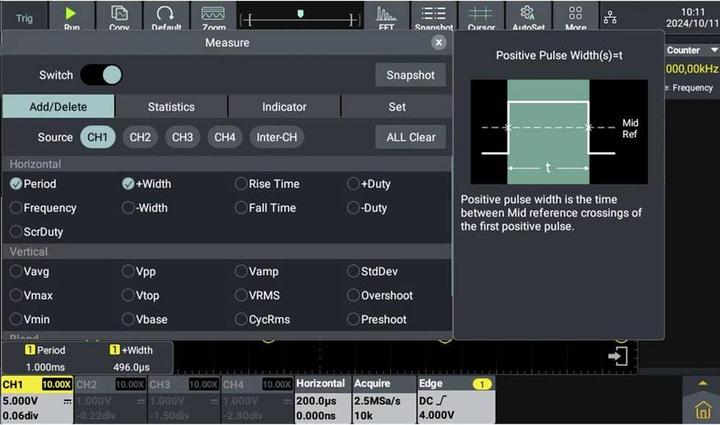

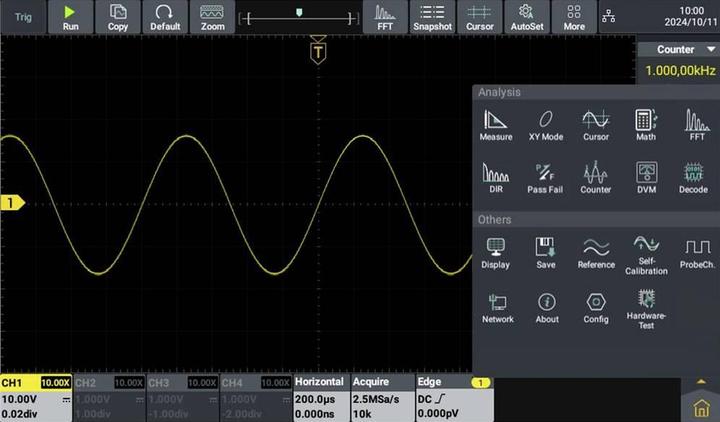

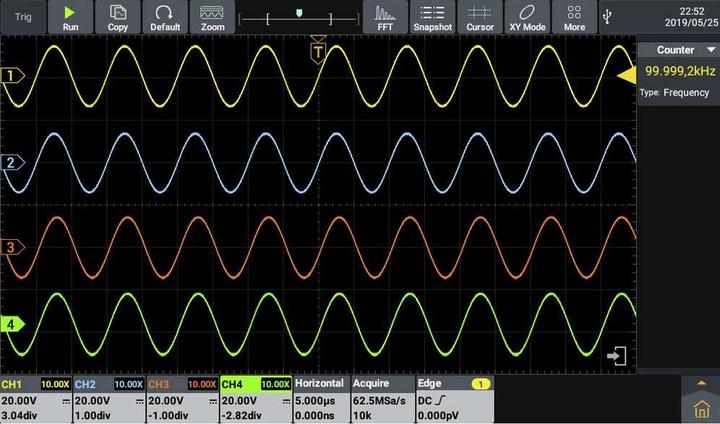

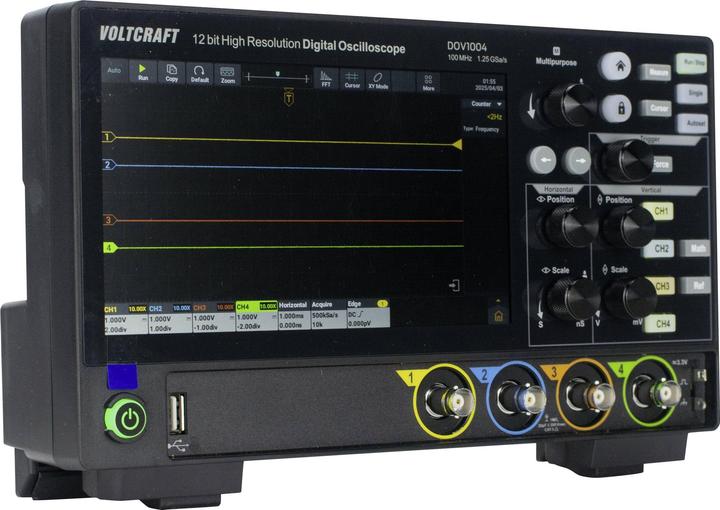

Actual product image Voltcraft DOV1004 Digital-Oszilloskop 100 MHz 4-Kanal 1.25 GSa/s 50 Mpts 12 Bit (CAT II, Oscilloscope)

Key specifications

Multimeter type

multimeter technology

measurement category

The measurement category specifies the permissible areas of application of measuring and testing devices for electrical equipment and systems (e.g. voltage testers, multimeters, VDE testing devices) for use in low-voltage networks.
