VM-4H2 - Video/Audio Splitter - 4 x HDMI

Ratings
BrandMore from Kramer
Currently out of stock
Free shipping starting at 50.–

Product details

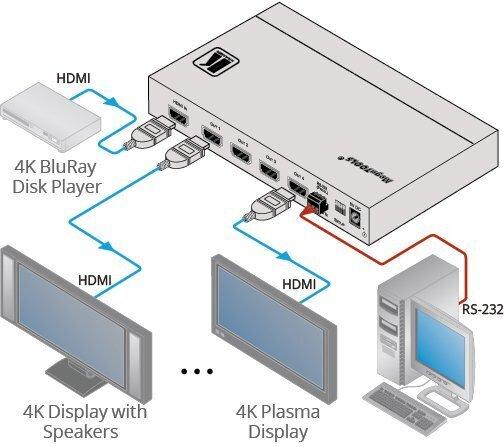

The VM-4H2 is a 1:4 distribution amplifier for up to 4K HDR, HDMI 2.0 signals that comply with the HDCP 2.2 content protection standard. The device features one HDMI input, equalizes and synchronizes the signal, and distributes it to four identical outputs.

  • Max. Data Rate: 17.82 GBit/s (5.94 GBit/s per video channel).
  • Max. Resolution: 4K @60 Hz (4:4:4).
  • HDMI Signal Transmission: HDR, HDMI 2.0, and HDCP 2.2 compliant signal, supports Deep Color, x.v.Color, LipSync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC (only OUT 1), 2K, 4K, and 3D.
  • I-EDIDPro: Kramer's intelligent EDID processing - An intelligent EDID algorithm for handling, locking, processing, and forwarding ensures plug and play operation for HDMI source and display systems.
  • Kramer's reKlocking and equalization technology: Rebuilds the digital signal to cover longer distances.
  • Forced RGB: If the display lacks YCbCr capabilities, the user can force the native output of the RGB color format in HDMI content to enhance image quality.
  • Selectable HDCP Authorization: Allows the user to control the appearance of an HDCP or non-HDCP input to the source, enabling the transmission of unprotected content, such as personal clips and diagrams, without HDCP encryption. HDCP-protected content will not be passed through in non-HDCP mode.
  • On-Site Maintenance: RS-232 connection for easy field firmware updates with the Kramer K-Upload tool, simple EDID handling with the Kramer EDID Designer tool, status indicators for signals connected to the HDMI input and output, and power indicator for maintenance and troubleshooting.
  • Easy Installation: Compact, fanless MegaTOOLS housing for ceiling mounting or side-by-side rack installation.

Key specifications

Connectable devices (input)
1
Switch Box Type
Video Switch
Connectable devices (output)
4
Main device port
HDMI
Video connections
HDMI (4x)
Audio Connections
HDMI (1x)

General information

Item number
18615863
Publisher
Kramer
Category
Switch box
Manufacturer no.
VM-4H2
Release date
4.5.2021
External links
Manufacturer's site (de)

Switch box properties

Connectable devices (input)
1
Switch Box Type
Video Switch
Connectable devices (output)
4
Max. picture resolution
3840 x 2160 pixels
HDMI version
2.0
Max. data transfer rate
2227.50 MB/s

Connection main unit

Main device port
HDMI

Connection to external devices

Video connections
HDMI (4x)
Audio Connections
HDMI (1x)

Origin

Country of origin
Ukraine

Scope of delivery

Scope of delivery
Optional

Product dimensions

Length
11.50 cm
Width
18.75 cm
Height
2.54 cm
Weight
400 g

Package dimensions

Length
35.50 cm
Width
17 cm
Height
6 cm
Weight
1.09 kg
