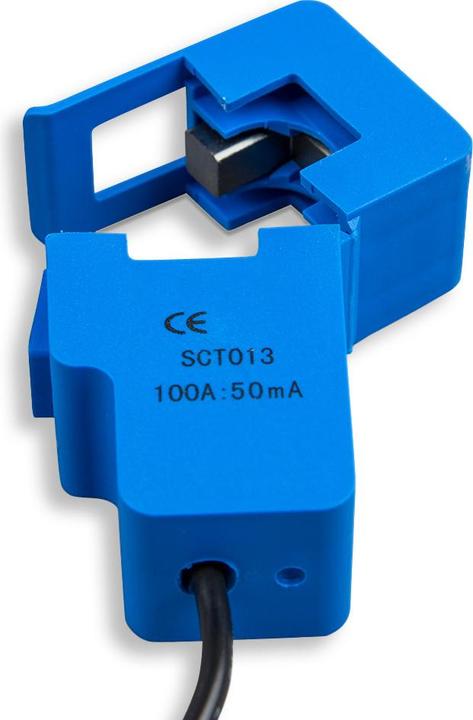

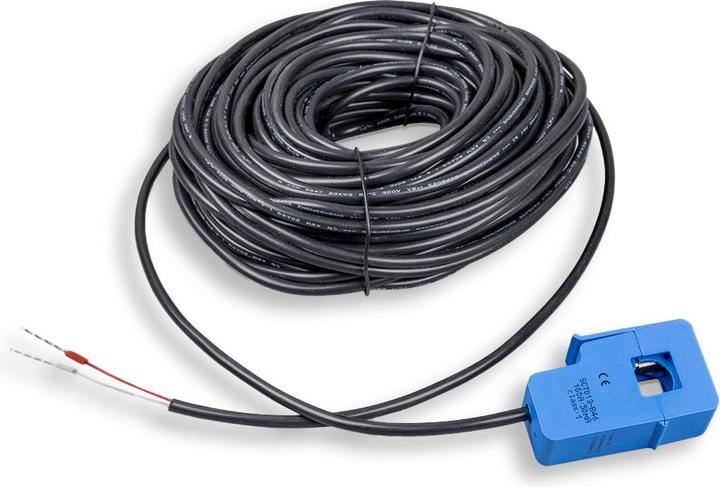

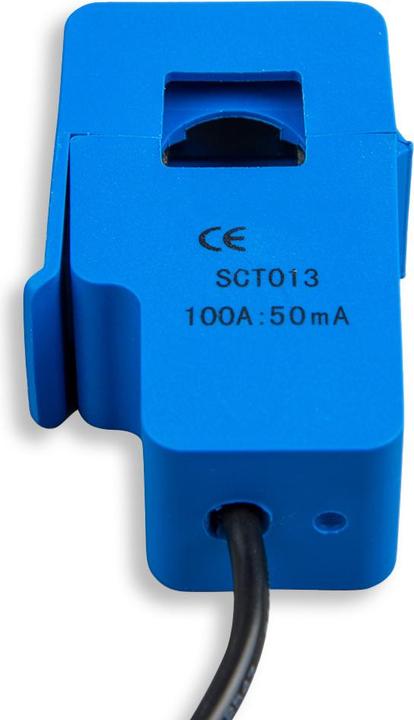

Victron Energy Victron Current Transformer 100A:50mA for MultiPlus-II (20m) Wire end

The current transformer 100 A:50 mA from Victron (MPN CTR120000500) is an extension to the MultiPlus-II / MultiGrid-II series and, unlike its predecessor, has a wire end instead of a connection socket. The transformer can be used to implement the PowerControl and PowerAssist functions and to optimise self-consumption with external current measurement.

Properties

• For MultiPlus-II and MultiGrid-II series

• Cable length: 20m

• Max. Current: 32A

• Installation via one wire end

PowerControl - optimisation of power supply with limited AC current

The MultiPlus-II / MultiGrid-II can deliver a very high charging current. This means a heavy load for the AC power supply or the generator. For this reason, a maximum current can be set. The MultiPlus-II then takes into account the consumption that is already present and only uses the amount of current that is still free for battery charging.

PowerAssist - Extended use of generator or shore connection: the "assist" function

This function adds a new dimension to the PowerControl principle, as the MultiPlus-II can support an alternative source that is too weak. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II ensures that AC mains power or generator power that is too weak is immediately compensated for by energy from the battery. If the load is reduced, i.e. if consumers are switched off, the energy that is then sufficiently available again can be used to charge the batteries.

Further information and offers on the MultiPlus series can be found here.

Scope of delivery:

1x Victron Energy power transformer for MultiPlus-II 20m (CTR120000500).
