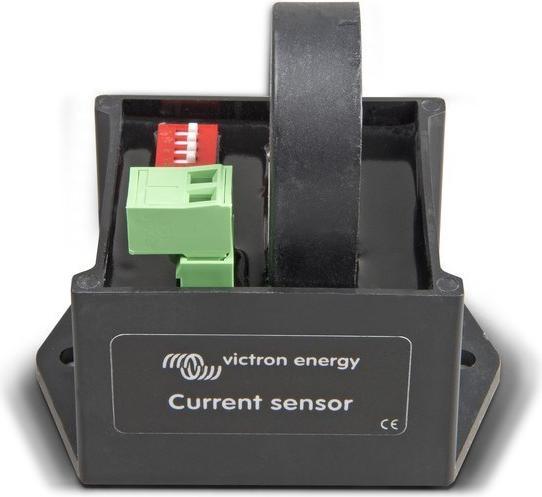

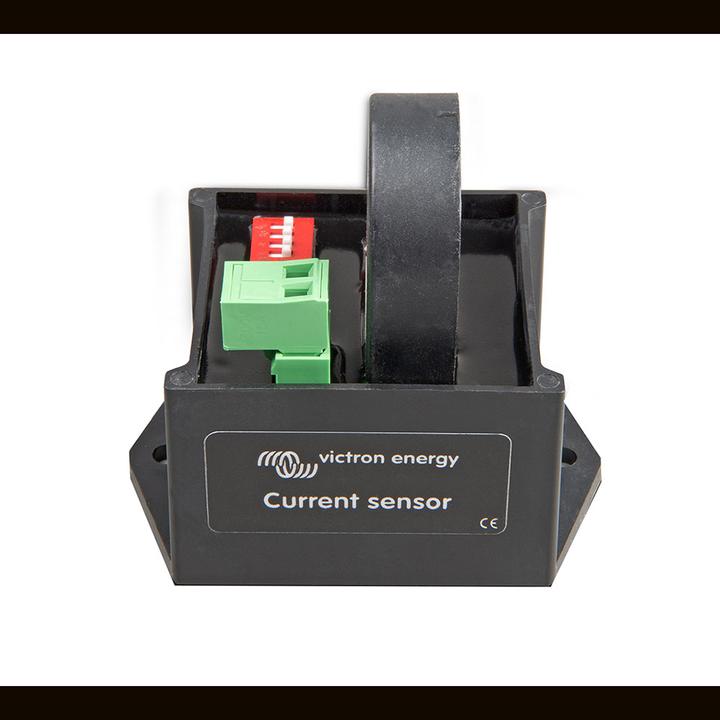

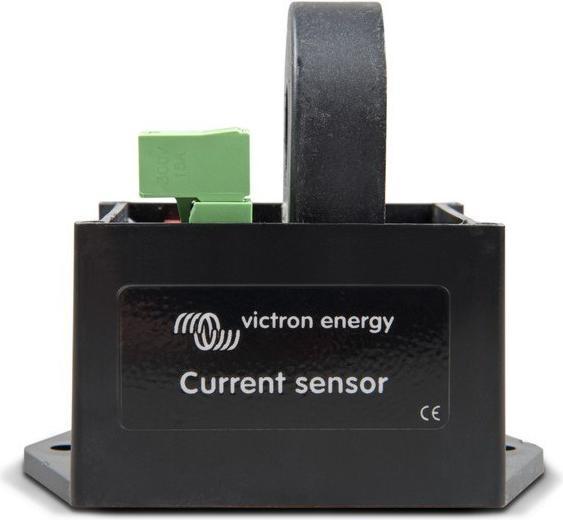

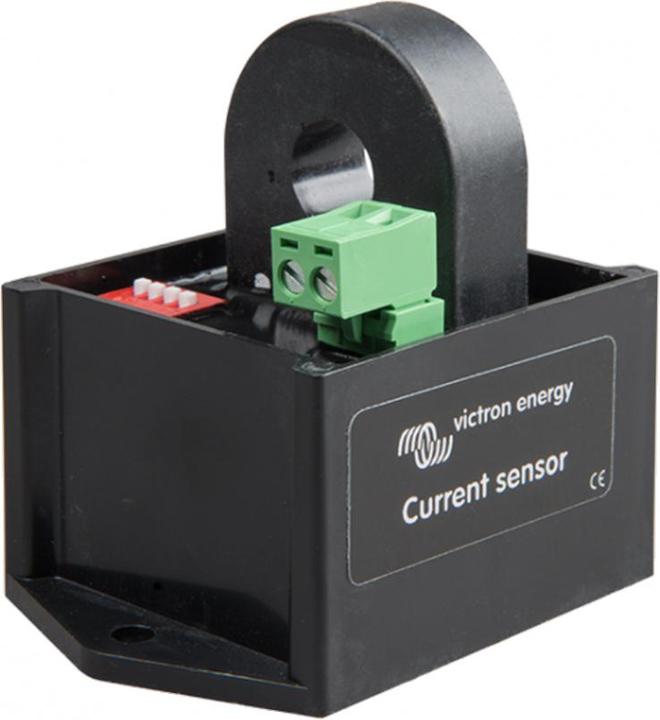

Victron Energy Victron AC current sensor 40A single phase

The Victron Energy AC current sensor (MPN CSE000100000) is a simple external current sensor for a maximum input current of 40A. It is used to measure the AC current, power (VA), and calculate the energy (kWh) of a PV inverter. The sensor connects to the AC input or output of a Multi or Quattro. The values can then be displayed and sent from the color control to the VRM website or a GX device. The two measuring cables can be connected to the AUX and/or temperature detection input of a Multi or Quattro.

Multi and Quattro hardware requirements:

• The Multi or Quattro must have the new microprocessor: Ensure that the 7-digit firmware version number indicated on the microprocessor starts with 26 or 27.

• The TEMP-Sense input of all Multi and Quattro is suitable for the AC sensor.

• On Multiplus II hardware version 0 to 8, the AUX input is located on the RJ12 connector, pins 1 and 5. In later versions, the AUX input is available again as a normal connector.

• The Multi or Quattro must be connected to the VE.Bus connector of the Color Control GX: The display does not work if the VE.Can connector is connected via a VE.Bus-to-VE.Can interface cable.

Installation:

• Pull one of the PV inverter's AC cables through the AC sensor.

• Connect the sensor to the AUX or TEMP sensor input of an inverter, Multi, or Quattro, in the same phase in which it is measured by this current sensor.

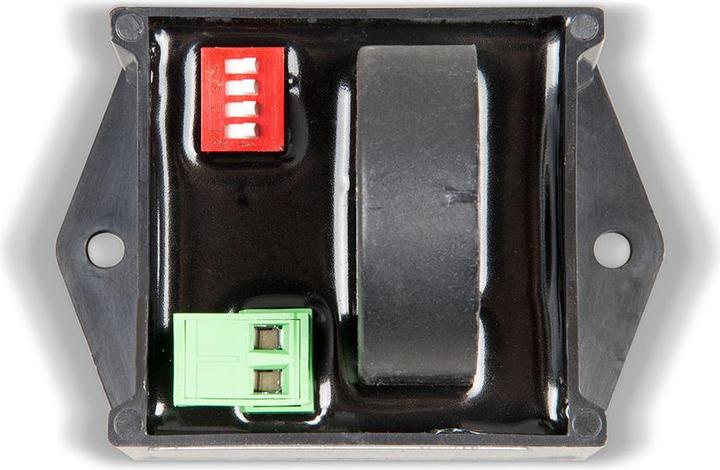

• Configure the power range with the DIP switches. Select a power equal to or higher than the maximum expected power. For example, for a 4 kW PV installation, the correct DIP switch setting is 5 kW.

• Multi-phase installations: Add an AC sensor for each phase of the PV inverter. Wire it in the same phase with the multi.

Scope of delivery:

1x Victron Energy AC current sensor 40A (CSE000100000).
