Victron Energy VE.Can adapter for resistive tank transmitters

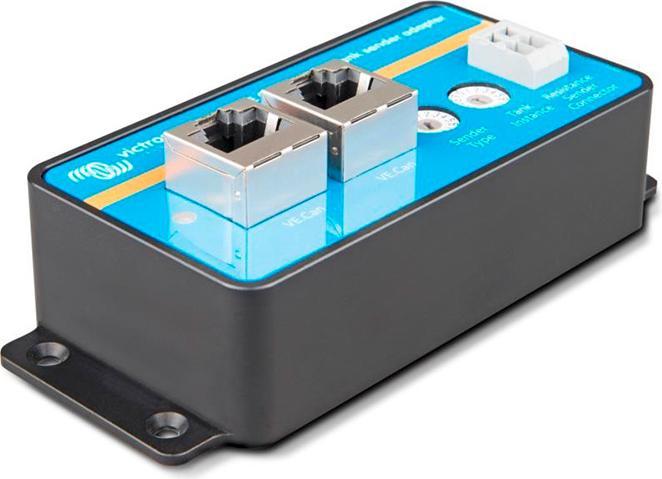

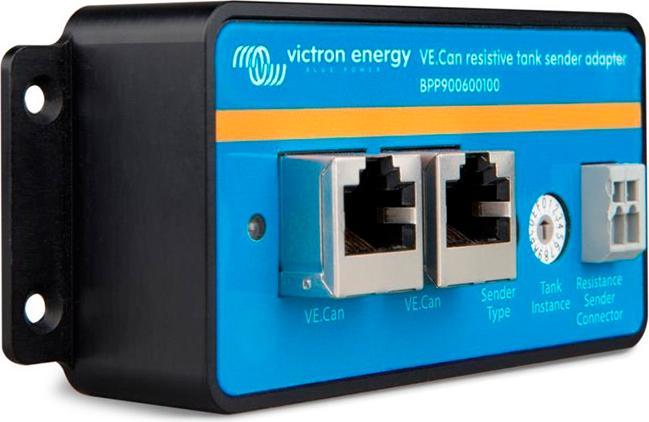

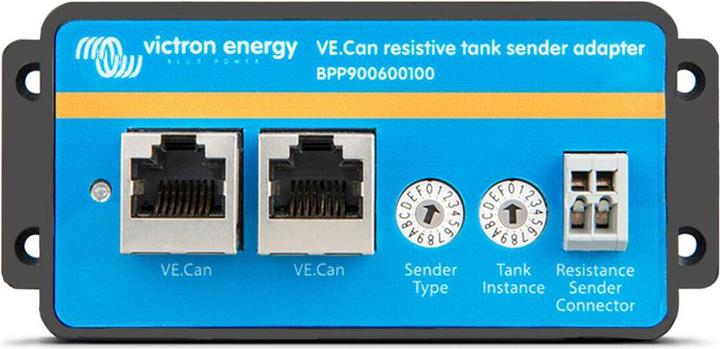

The VE.Can Adapter for resistive tank senders allows for the connection of a resistive tank level sender to a GX device. It is compatible with tank level senders according to European standards with 0-180 Ohm as well as US standards with 240-30 Ohm, and is accurate to within ±1%. The adapter can be easily configured for different resistive senders, such as for fuel, fresh water, wastewater, spring water, oil, and black water (sewage) tanks. It supports up to 16 tanks of any type. The device has a simple design with two small rotary switches and receives its power through the VE.Can network. If you are using a Skylla-i or an MPPT with CAN BUS in the system, the power for the CAN Bus will be supplied by one of the two. If the CAN BUS is not powered by a Skylla-i or an MPPT, the new VE.Can power cable is required for power supply.

Technical specifications:
Victron number: BPP900600100
Number of sensor inputs: 1 piece
Signal type: 4 to 20 mA and 0 to 10 VDC
Interface to GX: VE.CAN
Weight: 0.13 kg.
