Victron Energy SmartSolar MPPT RS 450/200-Tr
More than 10 items in stock at supplier
Product details

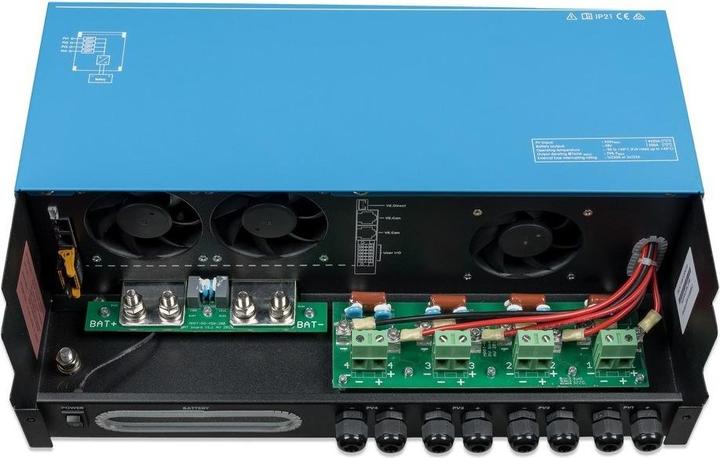

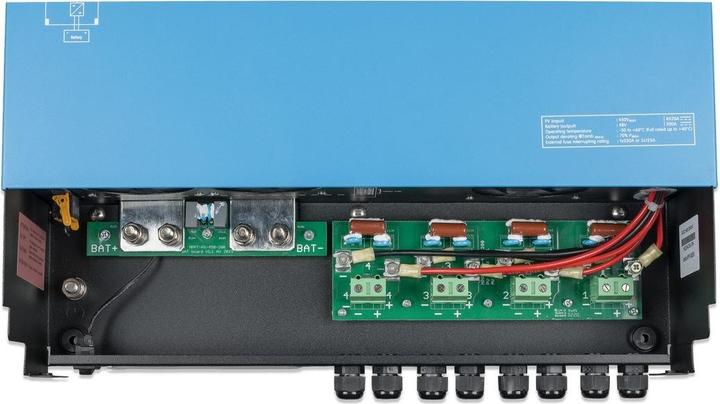

SmartSolar MPPT RS
450/100-Tr and 450/200-Tr
The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series-connected PV arrays that charge 48 VDC battery banks. This product is ideal for large off-grid and grid-tied battery systems.
Available in a 5.76 kW and 11.52 kW model. Features include a wide 80-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, a display, fully programmable battery charging parameters, and active cooling. The new design of the metal housing and fully covered electrical connections enhance safety and modernize the presentation in line with Victron's latest product range.
VictronConnect
With VictronConnect, you can query live status information and configure all Victron products that either have a built-in Bluetooth function or are connected via a VE.Direct Bluetooth Smart Dongle.
For more information, refer to the VictronConnect manual.
Nominal voltage | 48 V |
Nominal current | 200 A |
Safety function | Undervoltage |
Item number | 22986063 |
Manufacturer | Victron Energy |
Category | Charge controller |
Manufacturer no. | SCC145120410 |
Release date | 4.11.2022 |
Colour | Blue |
Exact colour description | Black, Blue |
Material group | Metal |
Material | Steel |
Nominal voltage | 48 V |
Nominal current | 200 A |
Power output | 200 W |
Safety function | Undervoltage |
Display type | Analogue |
Protection type (IP code) | IP21 |
Country of origin | India |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 14.60 cm |
Width | 43.40 cm |
Height | 48.70 cm |
Weight | 13700 g |
Length | 57.50 cm |
Width | 41.30 cm |
Height | 25.60 cm |
Weight | 17.06 kg |
