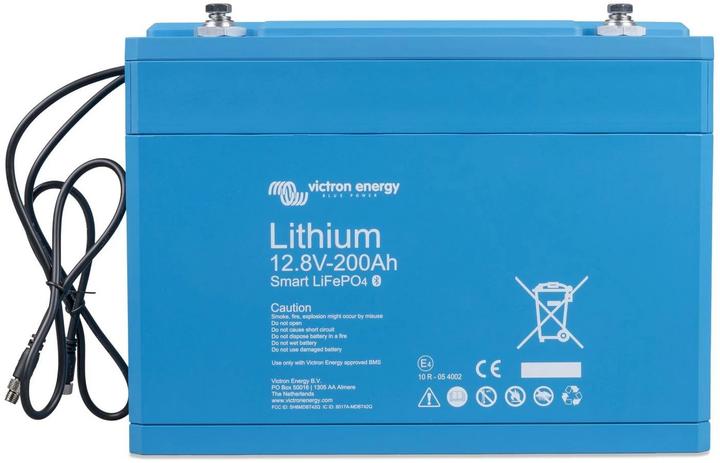

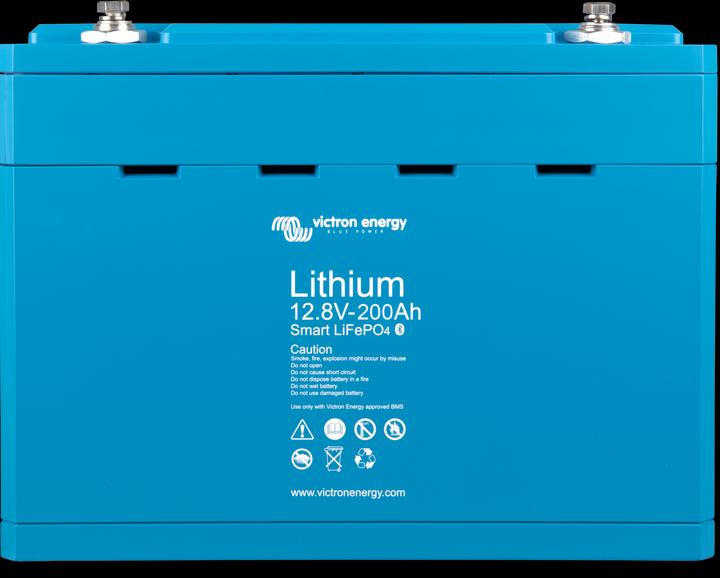

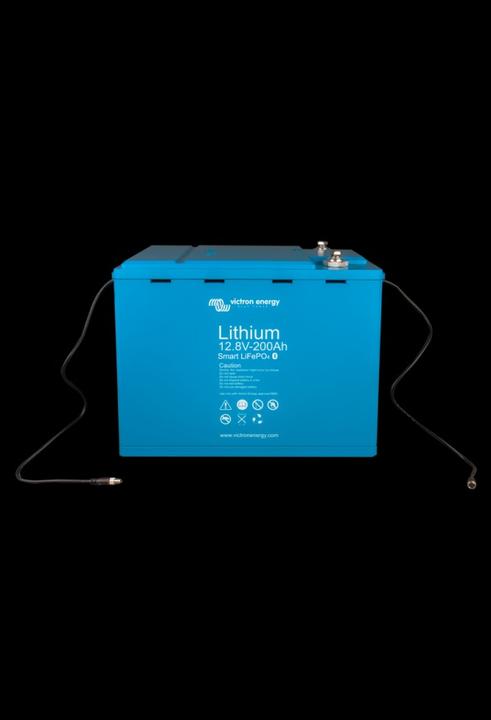

Victron Energy LiFePO4 Battery 12.8V/200Ah - Smart
12.80 V, 200 AhOnly 4 items in stock at supplier
Product details

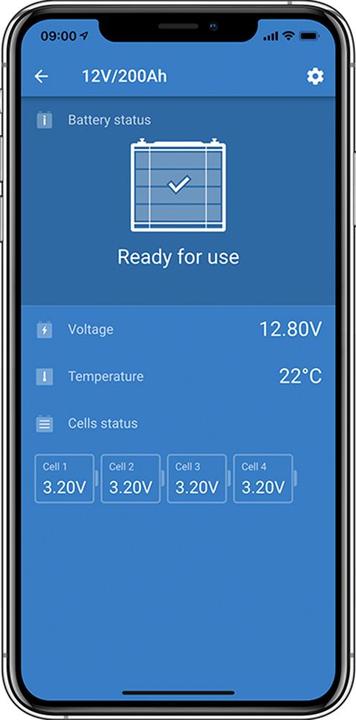

Lithium battery 12.8V 200Ah Smart - With integrated cell balancing and control lines for Victron BMS. Can be connected in parallel and in series. A Bluetooth app for monitoring cell voltage and temperature is available.
Requires one of these BMS: All Victron Smart Lithium batteries require an external BMS. Without a BMS, there is no warranty coverage. The BMS controls charging (ATC) and discharging (ATD) based on the battery's information. This control varies depending on the BMS but requires additional wiring for both charging and discharging in all cases.
The following BMS options are available:

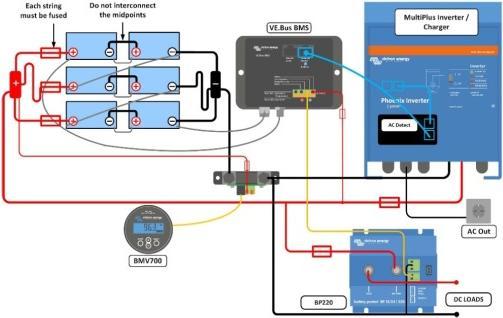

- VE.Bus BMS and VE.Bus BMS V2 - recommended for systems with our MultiPlus inverters/chargers.
- smallBMS - recommended for use in small systems.
- Battery Management System BMS 12/200 - recommended for use in automotive and marine systems with DC loads and alternators.
- Smart BMS CL 12/100 - recommended for use in automotive and marine systems with DC loads and alternators.
- Lynx Smart BMS - recommended for larger systems and loads in combination with Lynx Distributor and Battery IN products.
Guide for system design and BMS selection.
With VictronConnect, you can query live status information and configure all Victron products that either have a built-in Bluetooth function or are connected via a VE.Direct Bluetooth Smart Dongle. For more information, please refer to the VictronConnect manual.
Length | 152 mm |
Width | 321 mm |
Battery technology | Lithium |
Voltage | 12.80 V |
Capacity | 200 Ah |
Item number | 15694176 |
Manufacturer | Victron Energy |
Category | Leisure batteries |
Manufacturer no. | BAT512120610 |
Release date | 16.4.2021 |
Battery type | Supply battery |
Battery technology | Lithium |
Voltage | 12.80 V |
Capacity | 200 Ah |
Cold start current (EN) | 500 A |
Starting current at 0°C | 400 A |
Gas discharge | Not required |
Delivery condition | Ready for immediate use (Filled & Loaded) |
Battery category | Vehicle battery |
Battery | Battery |
Battery type | LiFePO4 |
Power capacity | 2560 Wh |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Items per sales unit | 1 x |
Length | 152 mm |
Width | 321 mm |
Height | 237 mm |
Weight | 22 kg |
Length | 42 cm |
Width | 20 cm |
Height | 29 cm |
Weight | 4 kg |
