Replacing the active material of the negative plates with a lead-carbon composite may reduce sulfation and improve the charge acceptance of the negative plates. Lead-carbon batteries thus offer the following advantages: less sulfation when operating in a partially charged state, lower charging voltage, and therefore higher efficiency, as well as reduced corrosion of the positive plates. Overall, this results in a longer operational lifespan.
Technical Data:
Nominal Voltage: 12V
Capacity C5: 138 Ah
Capacity C10: 150 Ah
Capacity C20: 160 Ah
Charging Voltage for Cycle Operation: 14.1 - 14.4 V
Charging Voltage for Float Charging: 13.5 - 13.8 V
Charging Voltage for Storage: 13.2 - 13.5 V
Dimensions (LxWxH): 532 x 207 x 220 mm
Weight: 55 kg

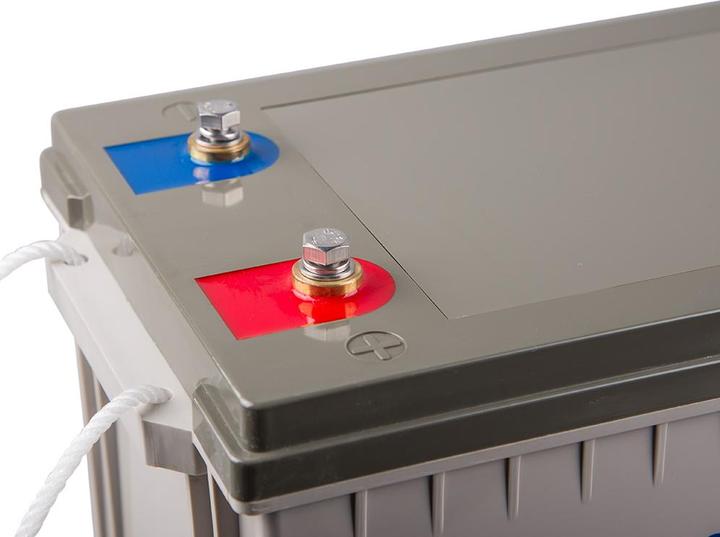

Connections: M8
Usage:
Cycles (100% Capacity Discharge): 500 cycles
Cycles (60% Capacity Discharge): 1000 cycles
Cycles (100% Capacity Discharge): 1400 cycles.
Length | 532 mm |
Width | 207 mm |
Battery technology | AGM |
Voltage | 12 V |
Capacity | 160 Ah |
Item number | 22985990 |
Manufacturer | Victron Energy |
Category | Leisure batteries |
Manufacturer no. | BAT612116081 |
Release date | 4.11.2022 |
Battery type | Supply battery |
Battery technology | AGM |
Voltage | 12 V |
Capacity | 160 Ah |
Terminal type | M08 |
Delivery condition | Ready for immediate use (Filled & Loaded) |
Battery category | Industry battery |
Battery | Battery |
Battery type | Lead–acid battery |
Power capacity | 160000 Wh |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x Victron Energy BAT612116081 12V 160Ah lead-carbon battery |
Items per sales unit | 1 x |
Length | 532 mm |
Width | 207 mm |
Height | 226 mm |
Weight | 55 kg |
