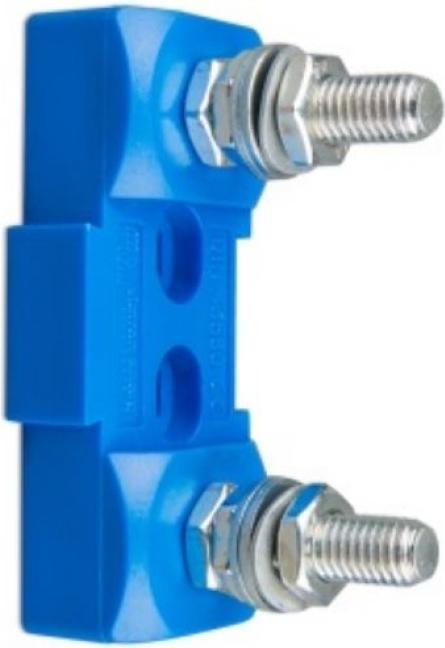

Victron Energy Fuse holder

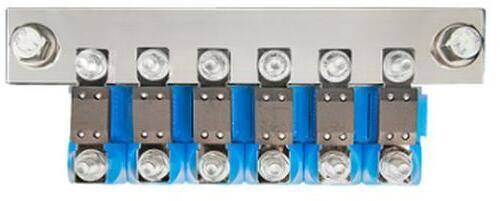

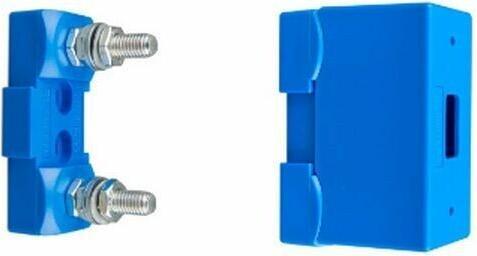

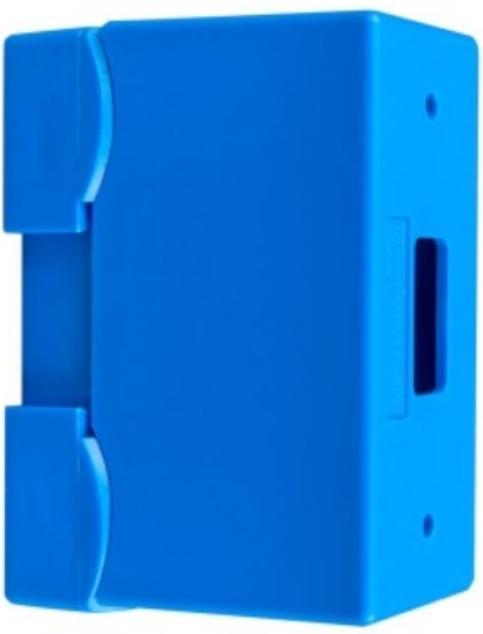

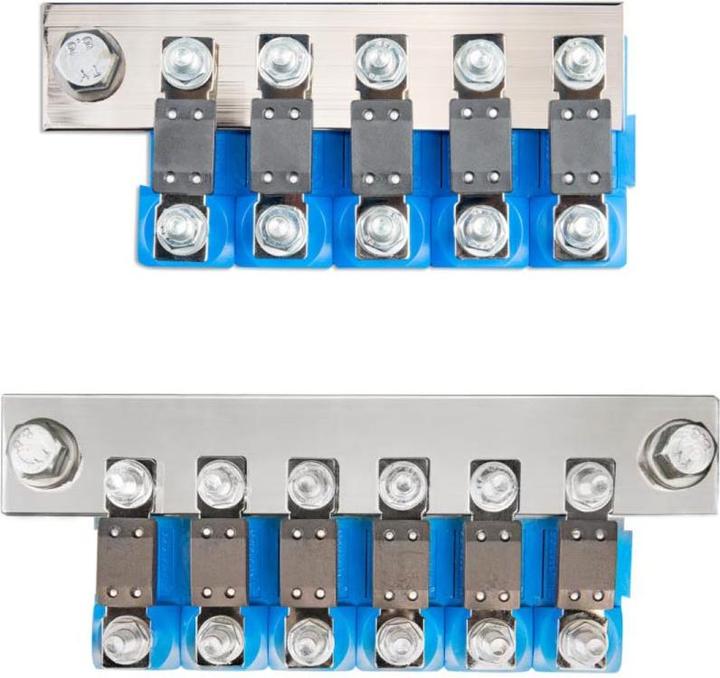

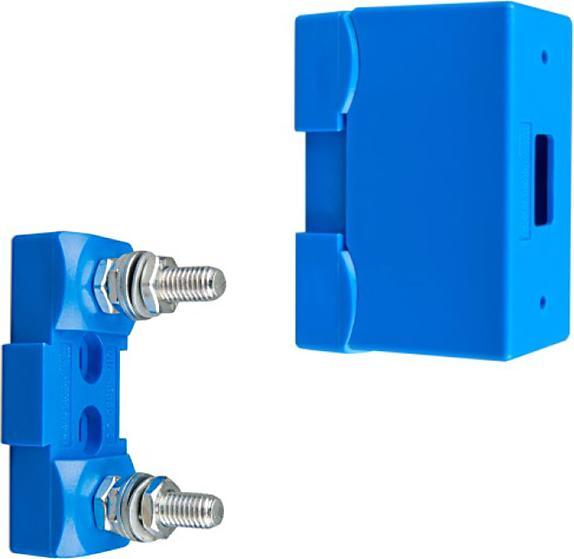

The modular Mega-Fuse fuse holder from Victron Energy (MPN CIP100200100) with cover is used for the safe installation of DC Mega-Fuse strip fuses together with up to 5 other fuses on a common busbar. This solution is ideal for protecting Multiplus or Quattro inverters connected in parallel or inverters from other manufacturers. The fuse holders can be plugged together so that all fuse holders are firmly anchored in position on the busbar. The housing provides solid protection for the fuse against external influences. There are currently two busbar versions that can be used with the modular holder: Victron Busbar 5 CIP100400060 - for 5 holders of type CIP100200100, max. 500A. Victron Busbar 6 CIP100400070 - for 6 holders of type CIP100200100, max. 2000A. Important article features at a glance: 500A max. current at max. 32V DC. 300A max. current at 58V DC. For joint use with the 5 and 6 busbar from Victron Energy. For Mega-Fuse type fuses. Material: high-strength plastic compound. About the Mega fuse. Mega-Fuse fuses are strip fuses and are screwed to the holder to ensure optimum contact. The corresponding nuts and snap rings are already pre-assembled on the holder. Mega fuses can be used to protect up to 500A at 32V DC. Up to 300A is possible with the 58V variants. 32V Mega-Fuse fuses - 60A to 500A. 58V Mega-Fuse fuses - 125A to 300A. Scope of delivery: 1x Victron CIP100200100 modular Mega-Fuse fuse holder.
