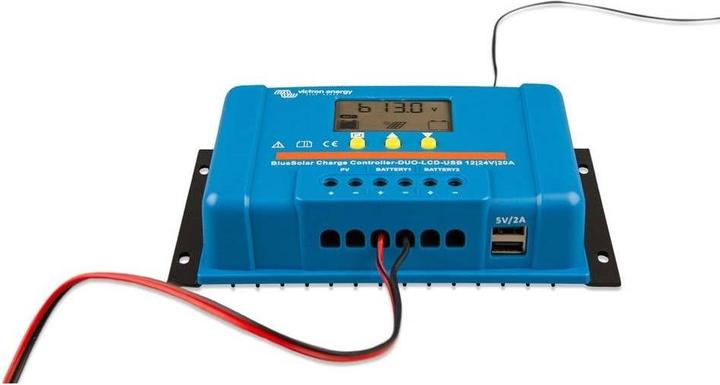

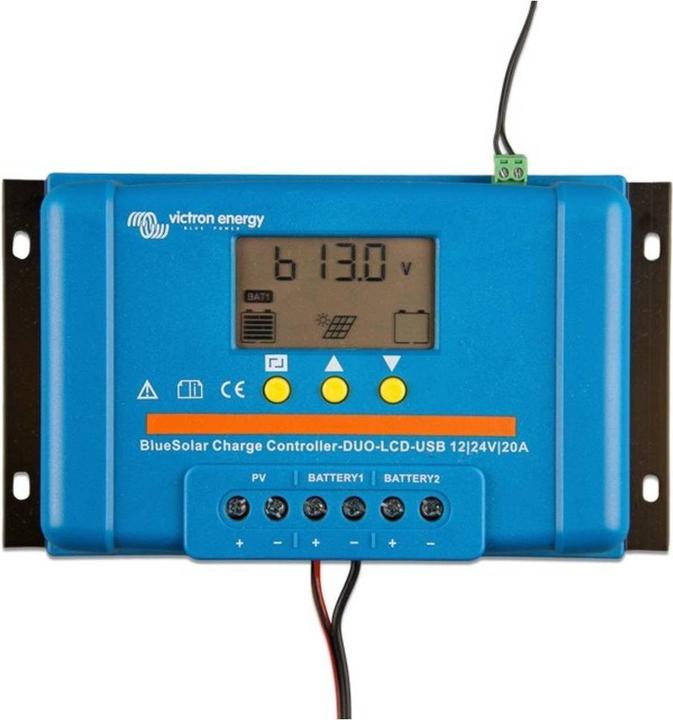

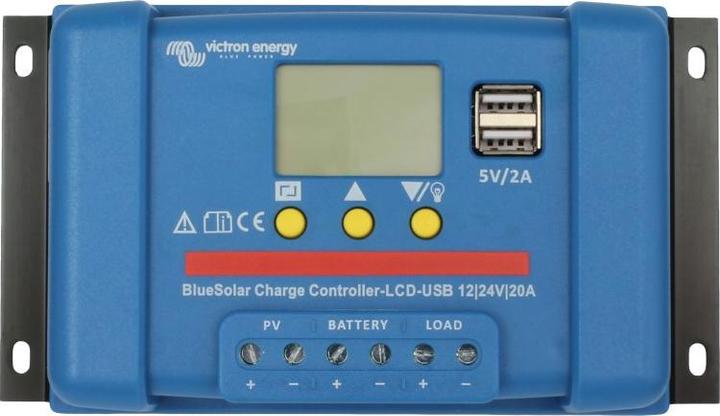

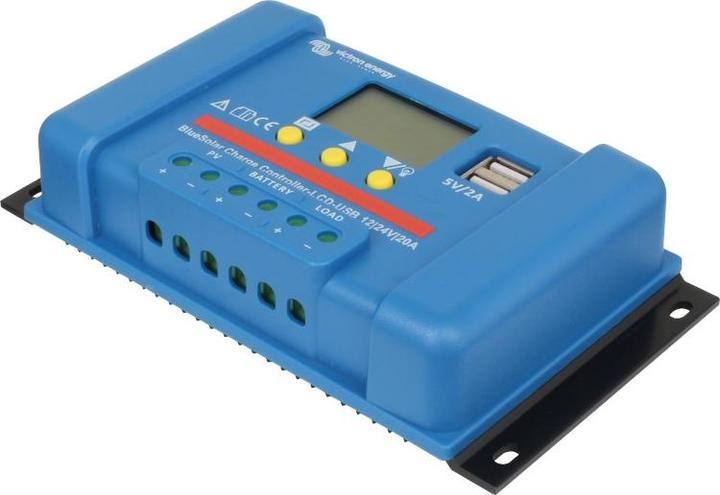

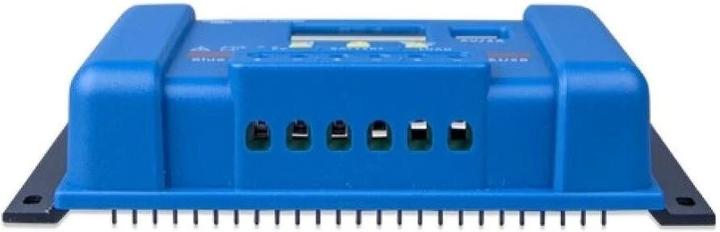

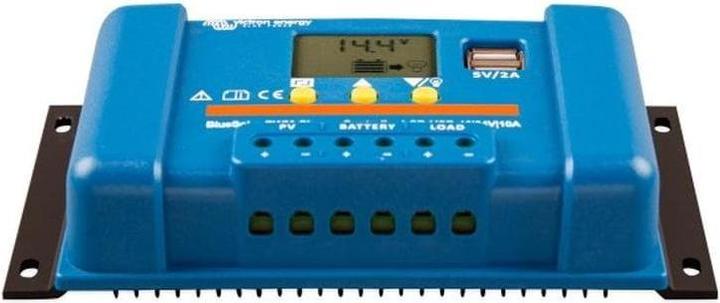

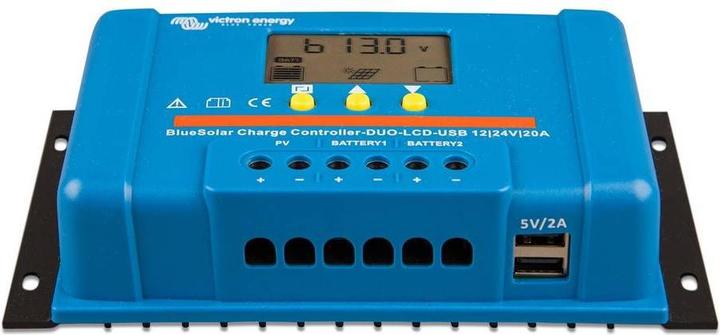

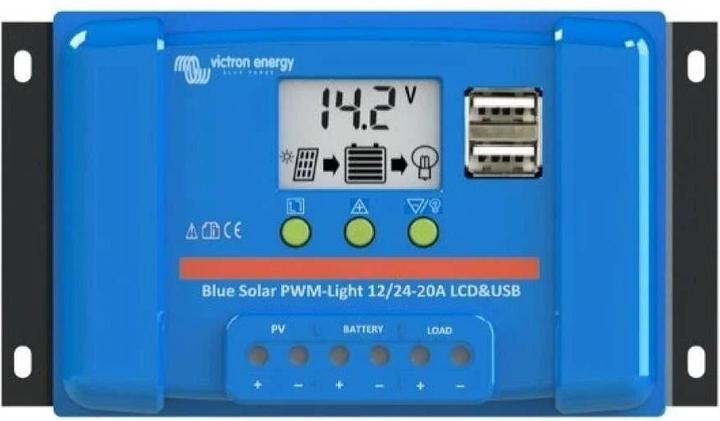

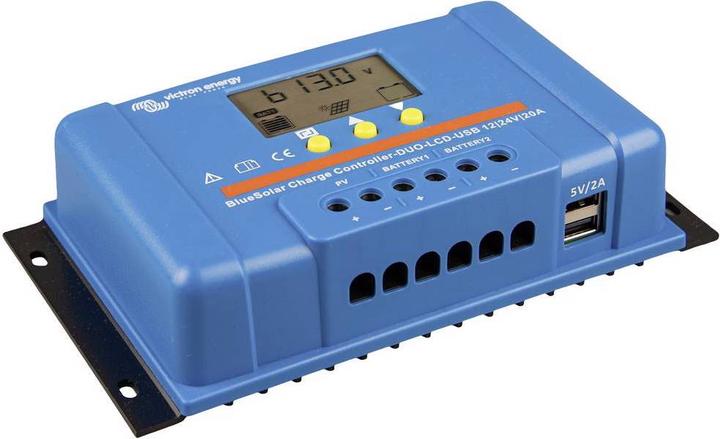

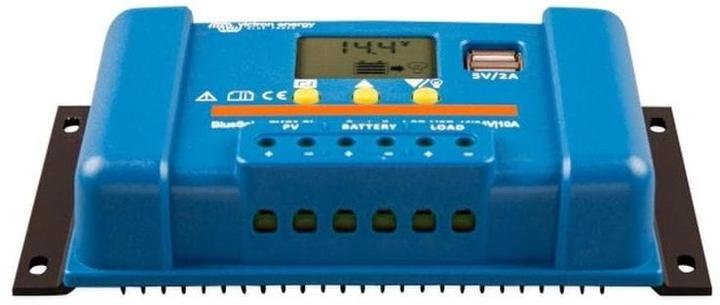

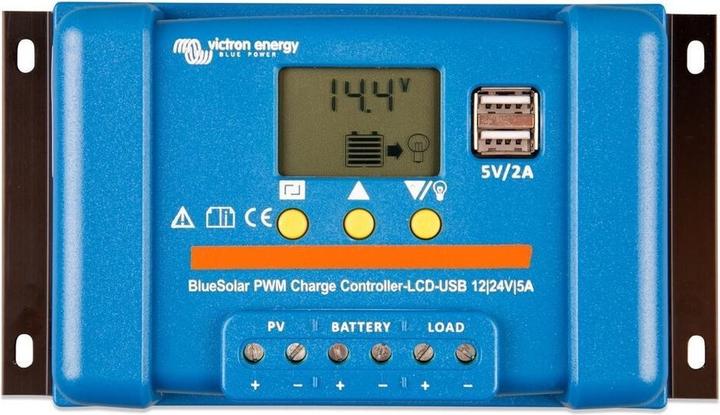

Victron Energy Charge controller

Liquid crystal display for status monitoring and setup of the load output. Overloading of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery is discharged to a predetermined voltage level. Some loads, especially inverters, are best connected directly to the battery. The inverter remote control is best connected to the load output. A special interface cable may be required; please refer to the manual for this.

The voltage values for connecting and disconnecting are adjustable. Day/Night time setting for the load output: This option allows you to set a specific ON time after sunset.

Programmable battery charging algorithm: Pre-programmed algorithms for AGM, GEL, liquid electrolyte, or LiFePO4 batteries (only with built-in BMS).

Two 5 V USB outputs: Maximum current (both outputs combined): 2 A.

Technical specifications:

• Battery voltage: 12/24 V
• Nominal charging current: 20 A
• Automatic load disconnection: Yes
• Maximum solar voltage: 28 V / 55 V
• Self-consumption: < 10 mA
• Load output: Manual control + disconnection at low voltage + timer
• Grounding: Common positive grounding
• Operating temperature range: -35 to +60 °C (full load)

USB output:

• Voltage: 5 V
• Current: 2 A (total from 2 USB outputs)

Housing:

• Protection class: IP20
• Terminal size: 6 mm²
• Weight: 0.15 kg

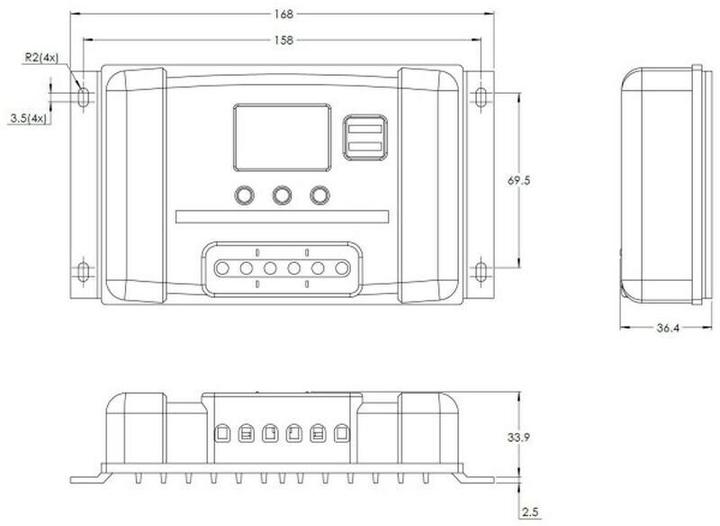

• Dimensions: 96 x 169 x 36 mm

General information about batteries can be found under "Things to Know About Batteries." General information about charging batteries can be found under "Things to Know About Charging Batteries." General information about solar technology can be found under "Things to Know About Solar Technology.".
