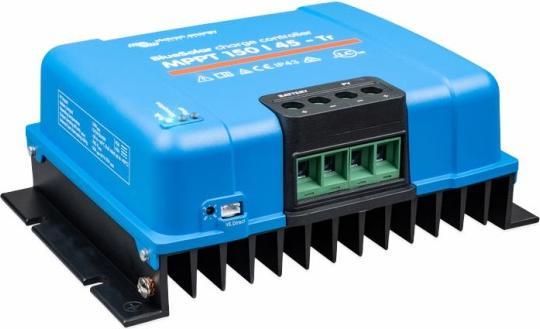

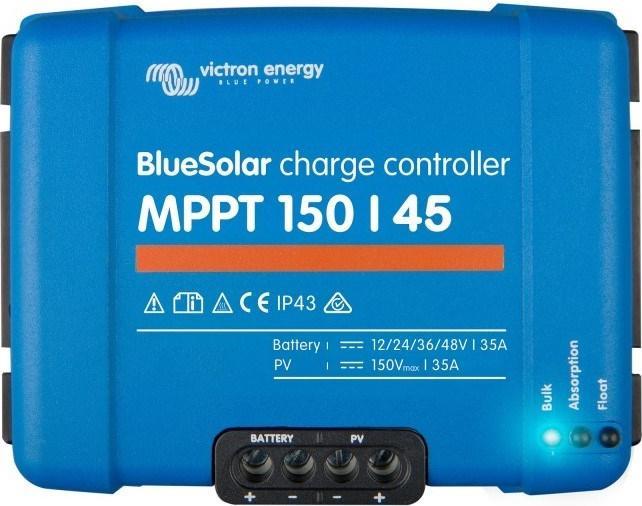

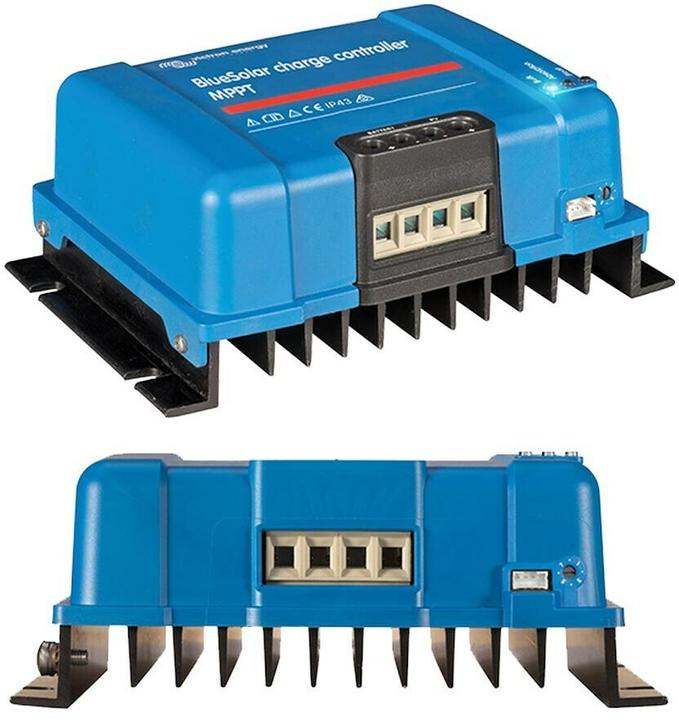

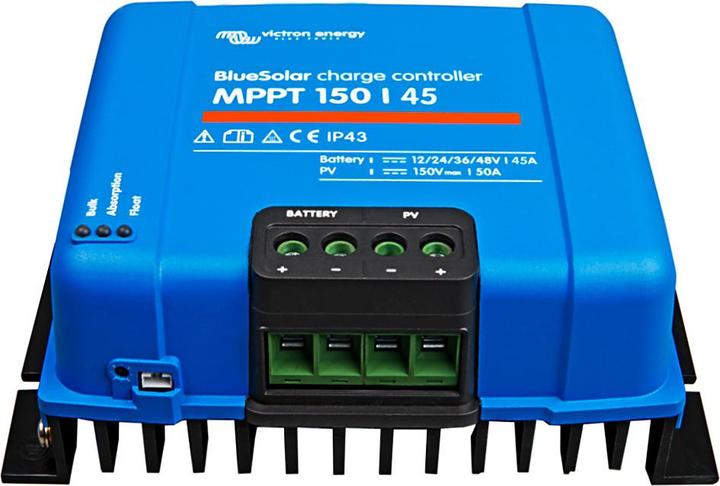

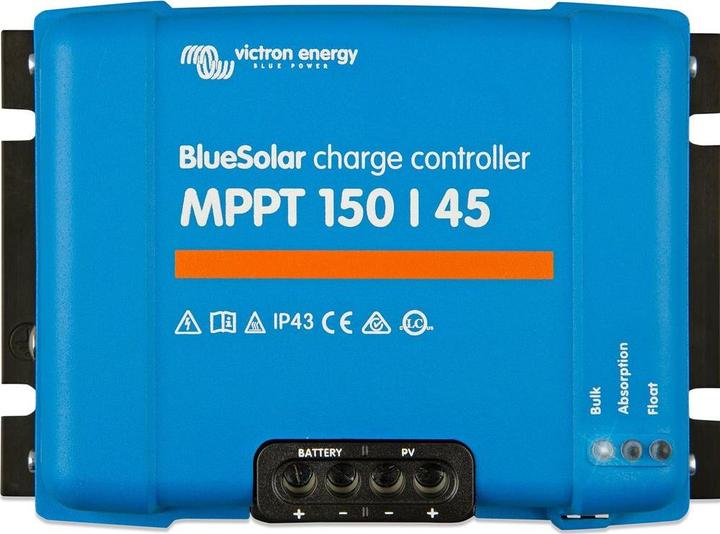

Victron Energy BlueSolar MPPT 150/45

was CHF161.–
Delivered tomorrow
Only 2 pieces in stock
free shipping

Product details

MPPT controller with an efficiency of over 98%. Fast MPPT controller for maximum energy yield. Fully programmable charging algorithm. Protection against overheating and short circuits. The algorithm maximizes energy output. Rated PV power, 12 V: 650 W. Rated PV power, 48 V: 2600 W. Especially in overcast conditions, when light intensity is constantly changing, an extremely fast MPPT controller can improve energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. In the case of partial shading, there may be two or more maximum power points on the current-voltage curve. Conventional MPPTs tend to lock onto a local maximum power point, which may not be the optimal point. The device's innovative algorithm maximizes energy yield by locking onto the optimal maximum power point. Fully programmable charging algorithm as well as eight pre-programmed algorithms that can be selected via a rotary knob. Overheating protection and load reduction at high temperatures. Protection against PV short circuits and PV reverse polarity. PV backflow protection.

Key specifications

Nominal voltage
48 V
Nominal current
45 A
Safety function
OvervoltageReverse polarityShort circuit

General information

Item number
22986028
Manufacturer
Victron Energy
Category
Charge controller
Manufacturer no.
SCC115045222
Release date
31.5.2024
Sales rank in Category Charge controller
11 of 417
External links

Colour

Colour
Blue
Exact colour description
Blue

Material

Material
Open ends 16mm2

Charge controller properties

Nominal voltage
48 V
Nominal current
45 A
Power output
2600 W
Safety function
OvervoltageReverse polarityShort circuit
Display type
Analogue
Protection type (IP code)
IP43

Origin

Country of origin
GermanyIndia

Voluntary climate contribution

CO₂ emissions
82.79 kg
Climate contribution
CHF 1.98

Scope of delivery

Items per sales unit
1x

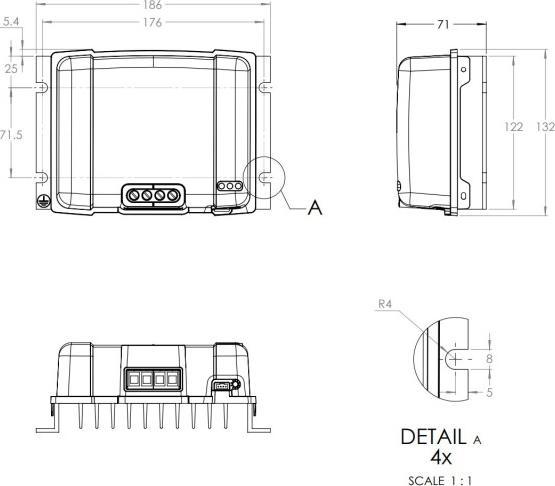

Product dimensions

Length
13 cm
Width
18.60 cm
Height
7 cm
Weight
1250 g

Package dimensions

Length
20.80 cm
Width
13.50 cm
Height
9.60 cm
Weight
1.79 kg
