Velleman Ethernet Relay Card

Add-on
Currently out of stock
Free shipping starting at 50.–

Product details

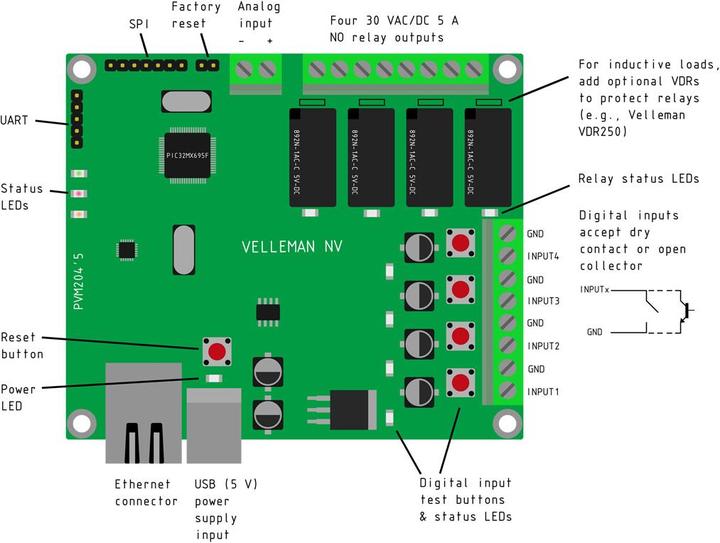

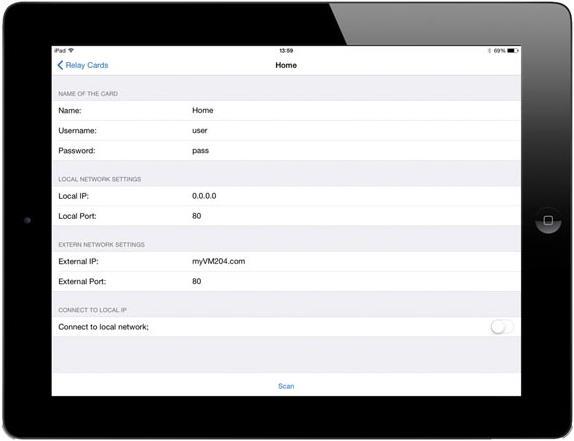

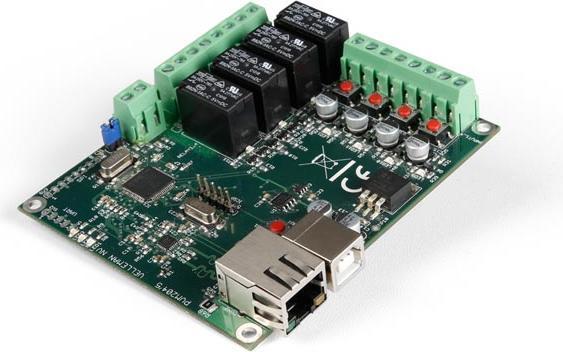

VM204 is an Ethernet card with 4 relay outputs, 4 digital inputs, and 1 analog input. VM204 can send emails when the input status changes and features an embedded web server. There are free apps available for Android and iOS.

Technical Specifications

Power Supply: 5 Vdc power supply (min. 5 V / 500 mA) via USB B port
Outputs: 4 relay outputs (30 V / 2 A rated)
Ethernet: 100 Mbit
Inputs:
4 digital inputs (compatible with open collector)
1 analog input (max. 6 V)
Ports:
free UART port
free SPI port.

Key specifications

Item number
5774701

General information

Manufacturer
Velleman
Category
Electronics modules
Manufacturer no.
VM204
Release date
14.12.2015

Electronic module properties

Module type
Add-on
Shield
Ethernet shield

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Package dimensions

Length
17 cm
Width
15.50 cm
Height
4 cm
Weight
244 g
