Product details

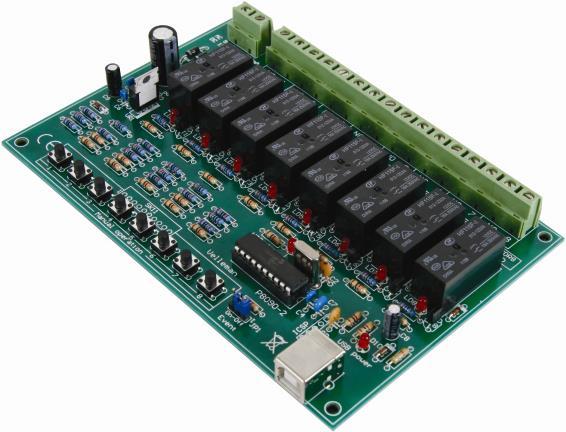

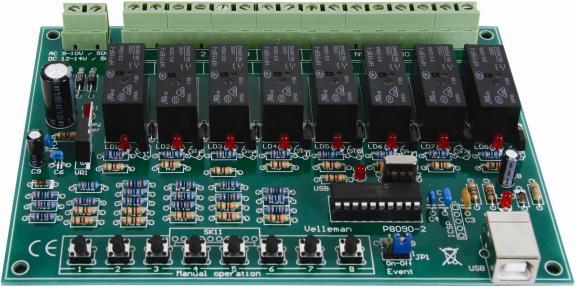

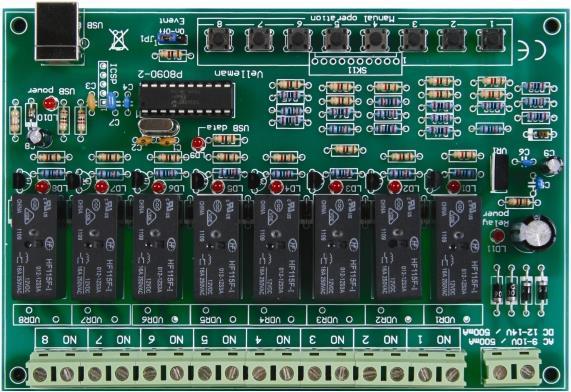

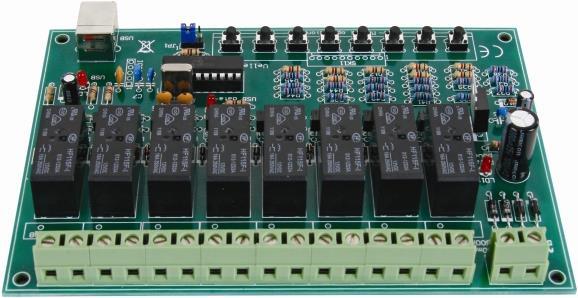

Control 8 relay channels from your PC! Use the computer's USB port to connect to the world. Connect up to 16A to each powerful relay. There is additional space for extra VDR noise filters. All relays can be tested or operated via built-in push buttons.

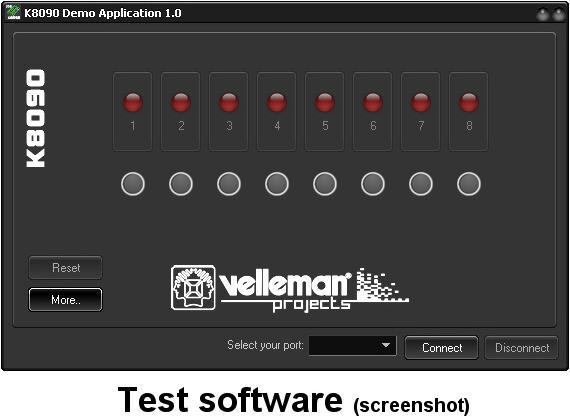

A DLL for custom software development can be downloaded. Test software completes the package.
Features
- USB-controlled relay board
- Manual operation for switching, momentary, or timer functions (selectable via software)
- Timer adjustable up to a duration of 18 hours (DLL function)
- Optional open-collector output (push button simulation)
- DLL for custom software development (download only)
- Event-driven and open protocol
- 2-way PC communication (USB event)
- Optional VDR surge protection (Type VDR300) for applications with resistive loads
- LED indicators for power supply and activated relay
- Minimum system requirements:
- PC with USB-compatible version of Windows
- USB1.1 and USB2.0 high speed
- Internet connection for downloading software

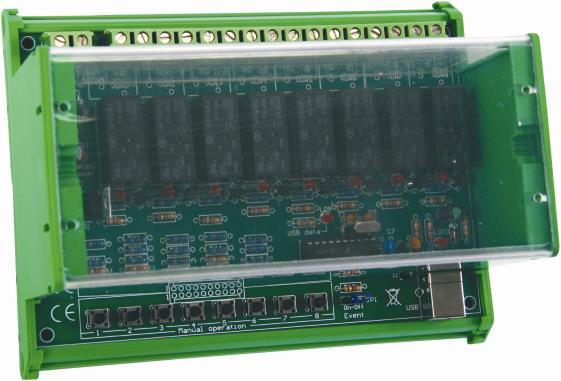

- Optional DIN rail enclosure: B8006 (Note: cut out opening for USB connector)
Technical Specifications
- Relay power supply: 9VAC ~ 10VAC or 12VDC~14VDC (500mA), e.g., PS1205
- 8 high-performance relays: 16A each (resistive load)
- Dimensions: 160 x 107 x 30 mm.
Item number | 5775324 |
Manufacturer | Velleman |
Category | Electronics modules |
Manufacturer no. | K8090 |
Release date | 15.3.2010 |
Module type | Add-on |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 107 mm |
Width | 160 mm |
Height | 30 mm |
Specifications may include unverified machine translations.
