V-TAC DC field panel 2 strings 2 MPPT 1000 VDC 16 A with IP65 switch panel 18 LSP modules
Delivered between Thu, 24.7. and Tue, 5.8.
Supplied by
Venova CH
free shipping
Product details

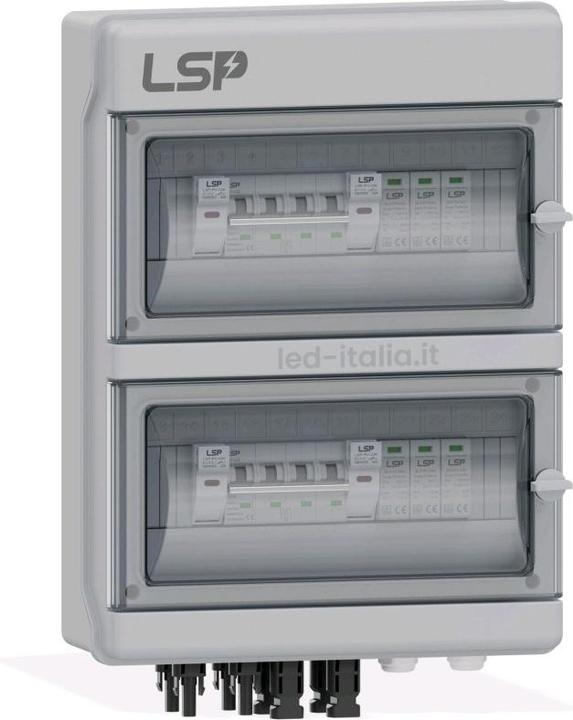

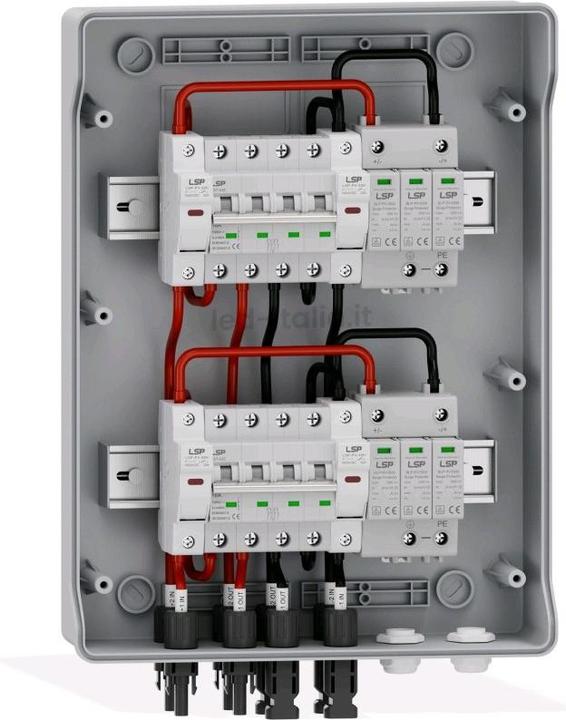

The Solar Protection Box SLP-PV1000-S-2.2 is an advanced solution for protecting photovoltaic systems. V-TAC SKU 11951 is designed for safety and efficiency, featuring surge protection that safeguards solar modules from harmful voltage spikes. Made from high-quality ABS material, the box offers durable longevity and weather resistance with an IP65 protection rating and IK08 impact protection class.
Technical Data
Protection Class: IP65
Material: ABS
Size: 381 x 365 x 118 mm
Impact Protection Class: IK08
Square Type: Display
Number of Strings/MPPT: 2/2
String Voltage: 1000V
String Current: 16A
SPD DC: LSP 1000V
DC Fuse Holder: LSP Fuse Holder Fuses 16A 1000V
DC Circuit Breaker: LSP 16A 1000V Circuit Breaker.
Item number | 50347690 |
Manufacturer | V-TAC |
Category | Solar energy equipment |
Manufacturer no. | 11951 |
Release date | 9.10.2024 |
Material | ABS |
Protection type (IP code) | IP65 |
Number of outlets | 2 x |
Electric current output | 16 A |
CO₂-Emission | |
Climate contribution |
Length | 36.50 cm |
Width | 38.10 cm |
Height | 11.80 cm |
