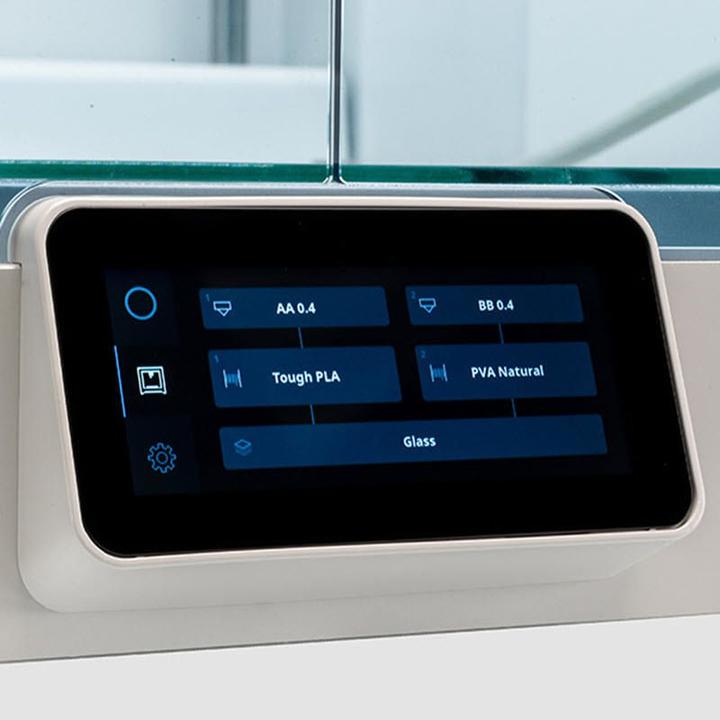

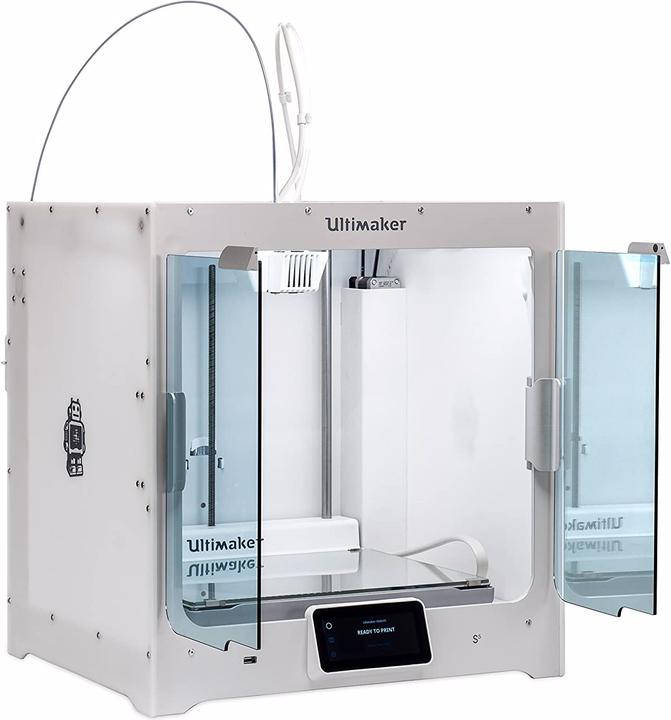

The Ultimaker S5 is an office-friendly desktop FDM printer that features a large build volume and is capable of producing components with precision and industrial quality. The Ultimaker S5 has been specifically designed to deliver industrial-quality results in an office environment, with a high degree of user-friendliness. This professional FDM printer achieves this through a variety of features and enhancements. A significant change compared to the Ultimaker 3 is the full-color touchscreen display, which ensures intuitive operation, provides a straightforward setup, and additionally conveys detailed status information to the user. The enlarged build volume with a print bed, which can be equipped as usual with a glass plate and in the future with a second glass plate, offers a considerable advantage by guaranteeing even greater material variety. In terms of user-friendliness, the device has also been upgraded with a filament sensor and simplified material change, ensuring that high production quality and reliability are maintained.
Max. print size (LxWxH) | 330 x 240 x 300 mm |
3D printing resolution | 20 microns (0.02mm) |
3D printing method | Fused Filament Fabrication (FFF) |
Print material | ABS, Breakaway, CPE, CPE+, Nylon, PC, PLA, PP, PVA, Though PLA |
Connectivity | LAN, USB, USB host, USB stick, WLAN |
Documents | |
Item number | 8606267 |
Manufacturer | Ultimaker |
Category | 3D printers |
Manufacturer no. | PRUM-S5 |
Release date | 15.5.2018 |
External links | |
May include power adapter | Yes |
Colour | Silver |
Exact colour description | Silver |
3D printer type | Enclosure |
3D printing resolution | 20 microns (0.02mm) |
3D printing method | Fused Filament Fabrication (FFF) |
Filament diameter | 2.85 mm |

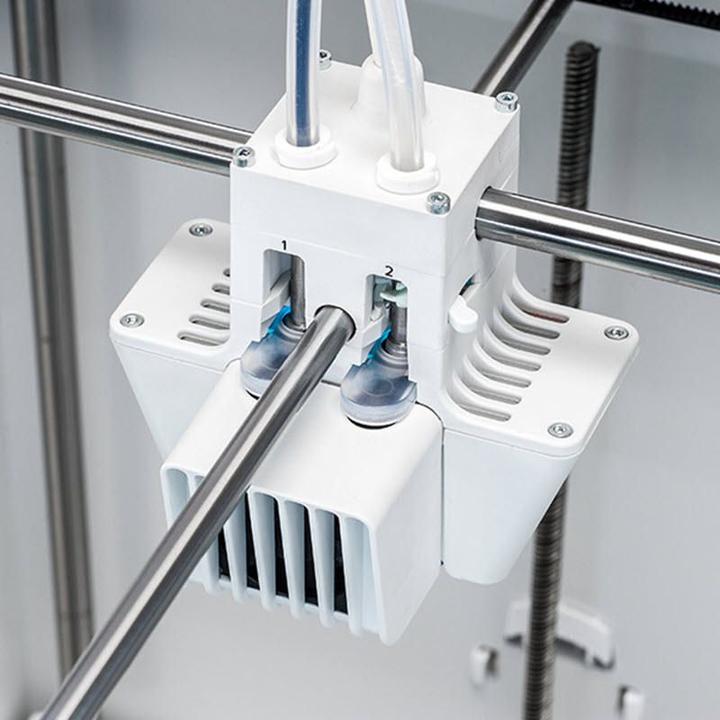

Number of extruders | 2 x |
Nozzle diameter | 0.25 mm |
Max. print size (LxWxH) | 330 x 240 x 300 mm |

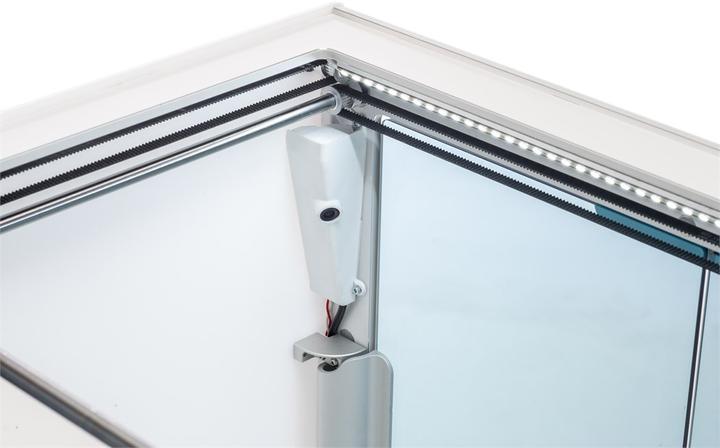

Printer features | Display, Integrated camera |
Build plate material | Glass |
Speed | 24 mm/s |
Noise emission | 50 dBA |
Heating time | 2 min |
Heating | Plate |
Print material | ABS, Breakaway, CPE, CPE+, Nylon, PC, PLA, PP, PVA, Though PLA |
Number of nozzle extruder units | 2 |
Build plate material | Glass |
Mechanical features | Heated building panel |
Connectivity | LAN, USB, USB host, USB stick, WLAN |
Supported file formats | JPEG, OBJ, PNG, STL, Windows Bitmap (BMP) |
Operating system compatibility | Linux, Mac OS, Windows |
input voltage | 110 - 250 V |
Power consumption | 500 W |
CO₂-Emission | |
Climate contribution |
Length | 49.50 cm |
Height | 78 cm |
Depth | 58.50 cm |
Weight | 20.60 kg |
Length | 78 cm |
Width | 61 cm |
Height | 55 cm |
Weight | 2 kg |
How often does a product of this brand in the «3D printers» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «3D printers» category returned?
Source: Digitec Galaxus
Ultimaker gelingt es, wohnzimmertaugliche 3D-Drucker mit Leistung und Zuverlässigkeit industrieller Drucker zu fertigen. Beides sind erwachsene Geräte, die im Praxistest zuverlässig und äußerst akkurat arbeiteten. Die Preis sind gesalzen und dürften derzeit nur Profis oder absolute Fans locken, die zum Beispiel ein nicht mehr erhältliches Oldtimer-Ersatzteil benötigen.
