Tumaker Automatic pellet feeder

TUMAKER Automatic Pellet Feeder

The perfect complement to your 3D printer with pellets. The Automatic Pellet Feeder independently and directly feeds the head hopper. This mechanism frees the user and allows them to ignore the routine of manually feeding the extruder. Unifying in the same 3D printer the advantages of additive manufacturing with pellets and the automation made possible by the Automatic Feeder forms a unique machine in the sector.

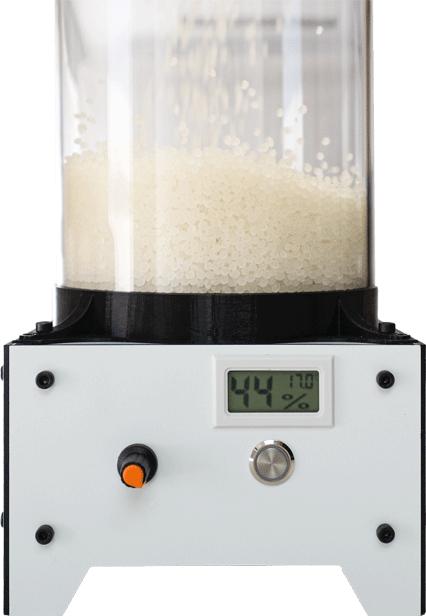

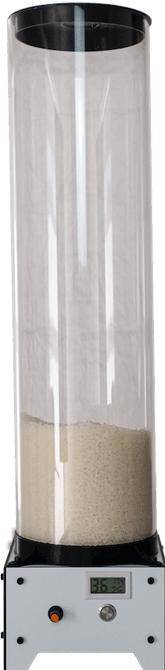

The feeder has an initial tank 40 cm high to hold 7.06 dm³ of pellets. In addition, it incorporates a material end sensor at the tip to manage the automatic supply of pellets. At the base of the feeder, a temperature and humidity sensor manages this data to keep it in optimal conditions.

Dimensions:

• Printing Volume: 290 x 180 x 200 mm
• Printer Size: 550 x 440 x 460 mm
• Package Size: 605 x 501 x 500 mm
• Package Weight: 33 kg
• Printer Weight: 31 kg

Nozzle:

• Nozzle Diameter: 0.4 - 0.6 - 0.8 - 2.0 - 4.0 - 5.0 mm
• Extruder Maximum Temperature: 350ºC
• Two Temperature Control Points

Print Materials in Pellet Format:
ABS, Catamould 316L, PA6 + 30% GF, PLA, PCL, ASA, PETG, PC + PBT, PC, LDPE, PEKK, PP, PP + 30% CF, SEBS, Soft TPU Sh18A, PEI Ultem, Ceramic Al2O3, PVC, ABS + CF, FLEXA 93, Wood, PA16 + Ferrite, PA12 + Neodymium, PP + Mineral Filler, Grilon BK-30, PPC 7712, SAN, PC/ASA, PC + 20% CF, PA66 + 30% GF.
