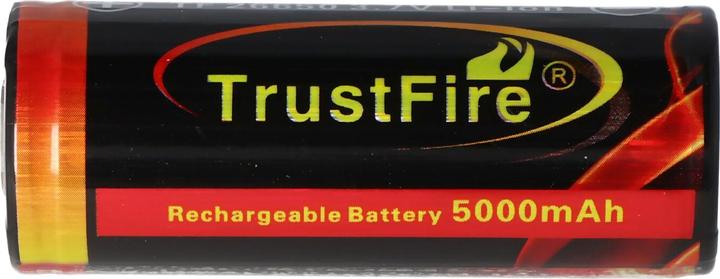

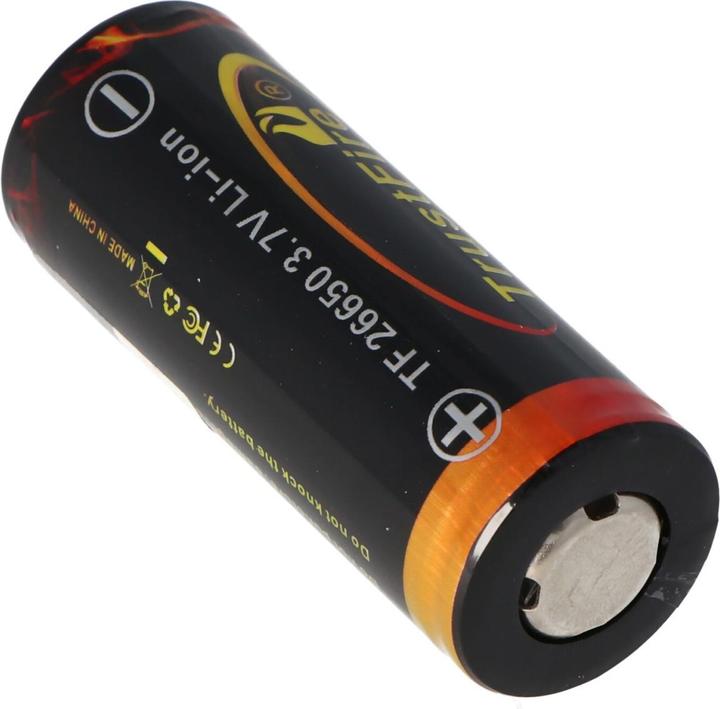

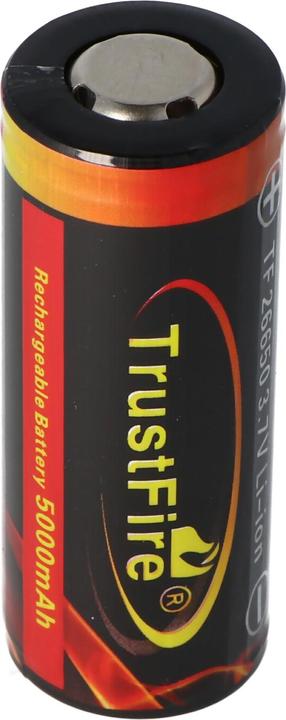

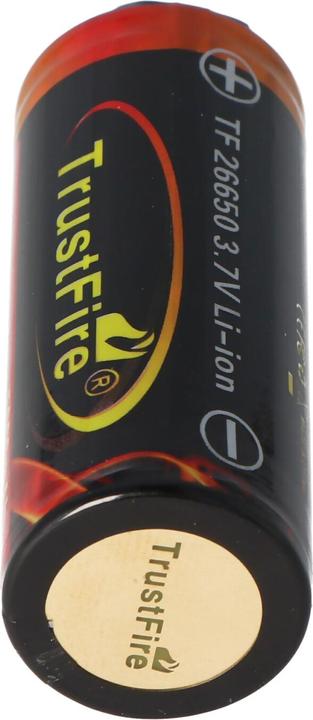

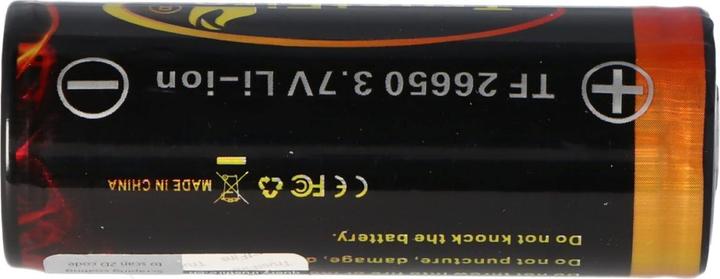

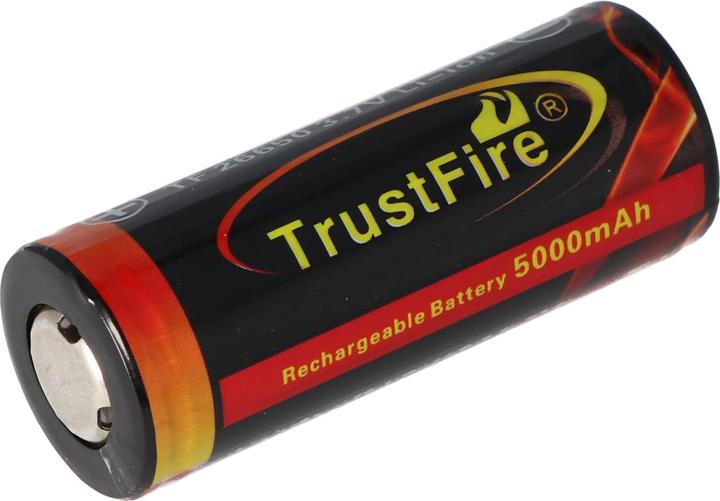

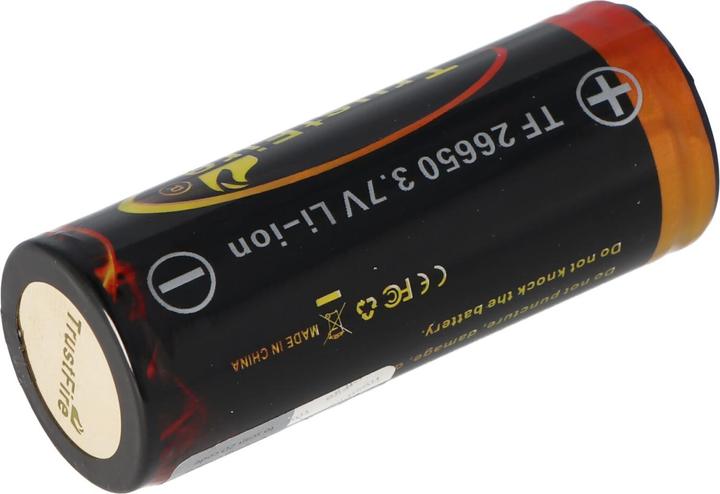

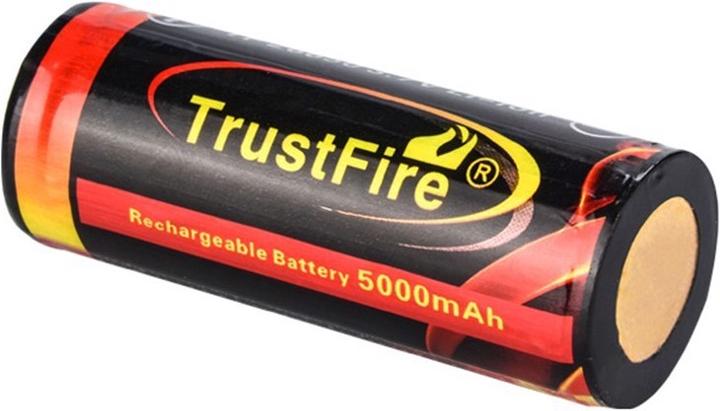

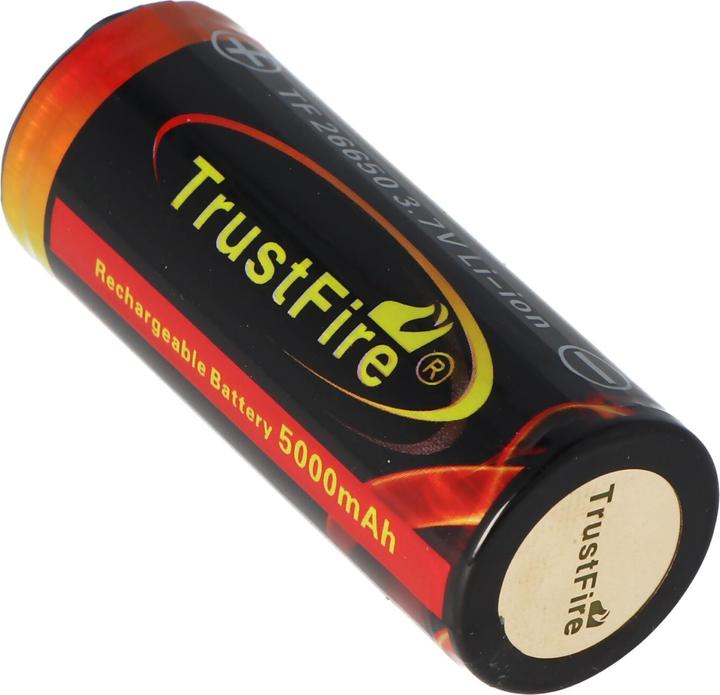

Trustfire Akku 26650, geschützter

The high-quality cells with long lifespan and high cycle stability. Equipped with IC protection/PCB featuring short circuit, overcharge, and deep discharge protection. Specifically designed for flashlights.

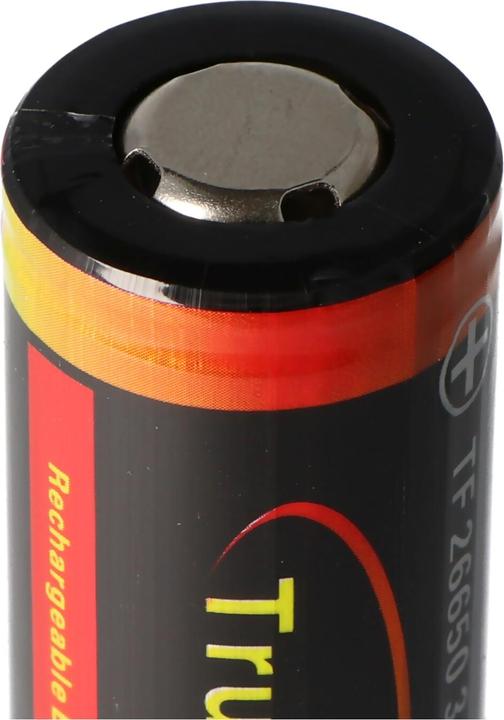

Original Trustfire ICR 26650 protected with PCB protection electronics. Maximum capacity of 5000 mAh, minimum 4500 mAh. Nominal voltage of 3.7 volts, charging cut-off voltage of 4.2 V ± 0.05 V. Continuous discharge maximum of 10 A. Discharge cut-off voltage of 2.5 volts. Internal resistance of 23 mΩ. Integrated protection available for a maximum of 10 A. Positive terminal slightly raised. Chemistry: LiNiCoAlO2. Diameter approximately 26.40 mm ± 0.15 mm. Height approximately 68.75-69.80 mm ± 0.15 mm. Weight 92 grams. Charging method: CC-CV.

Safety instructions: Lithium-ion batteries must only be operated with a so-called protection electronics! Please note that lithium cells may only be used by authorized personnel. Improper handling or short circuits can lead to fire or explosion.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from the memory effect. They operate based on lithium and are characterized by a high energy density.

Technical specifications for Trustfire 26650 5000 mAh 3.6 V - 3.7 V protected Li-ion battery.

Notes: Charging lithium-ion batteries (Li-ion) requires a special charger that charges the batteries using a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged beyond a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to approximately 4.1 volts, as this significantly increases their lifespan and number of charge cycles (potentially up to a doubling). Only lithium-ion chargers should be used for charging. However, inexpensive chargers sometimes have the disadvantage of not shutting off safely after the charging process is complete.
