Triton RSX-42-XD8-CXX-A1 - 19" Rack Frame, 42 U, 600 x 800 mm, double-sectioned

19" rack frame, 42U, 600 x 800 mm, two-part

Model: RSX-42-XD8-CXX-A1

The 19" rack frame is suitable for installation in protected areas with a load capacity of up to 400 kg.

Single-part rack frames

Single-part rack frames are recommended for simple installations without heavy components.

Two-part rack frames

The two-part 19" rack frame is suitable for the installation of larger and heavier components.

High construction stability

The vertical profiles ensure a high load capacity and stability of the rack frame.

Wheels, leveling feet

Mounting options for wheels, heavy-duty casters, and leveling feet.

Tip-over protection

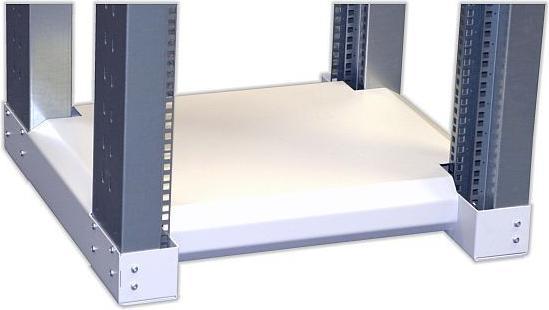

This is additionally mounted at the base of the two-part rack frame and increases the stability of the entire construction when extendable components, such as servers, are installed. It is included in the package of the two-part frame.

Dimensions:

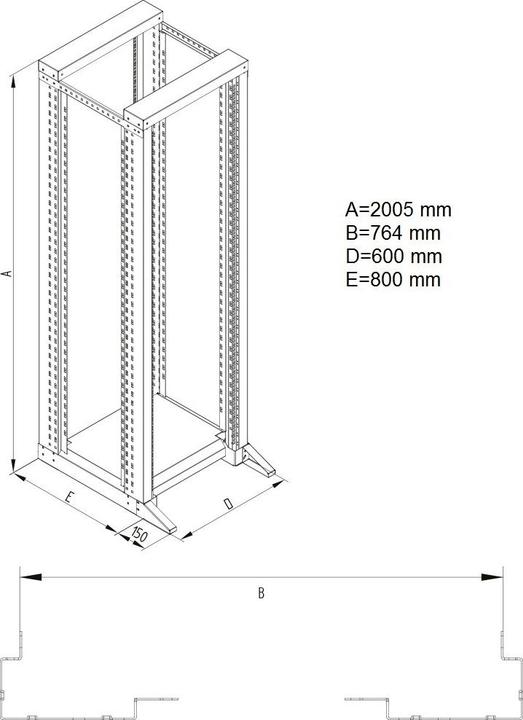

• Height 2005 mm x Width 600 mm x Depth 800 mm

Included:

• 6x leveling feet

• Tip-over protection

Material:

• Steel deep-drawn sheet

• The 19" rack frames are used for installations in designated areas.

• 19" rack frames are manufactured in single and two-part versions.

• Due to their higher stability, the use of the two-part version is more advantageous.

• Frame construction: Disassemblable; metal parts; The 19-profile frame can be placed directly on the floor or set up with the help of leveling feet or wheels (wheels are not included in the package).
