Triton RBA-15-AD6-CAX-A1 - Wall-mounted 19" cabinet, 2-sectioned, 15 HU, 615 mm depth

15 RU, 19 inch rack
was CHF440.–
Ratings
Delivered between Sat, 2.8. and Fri, 8.8.
Only 1 piece in stock at supplier
free shipping

Product details

Description, Purpose

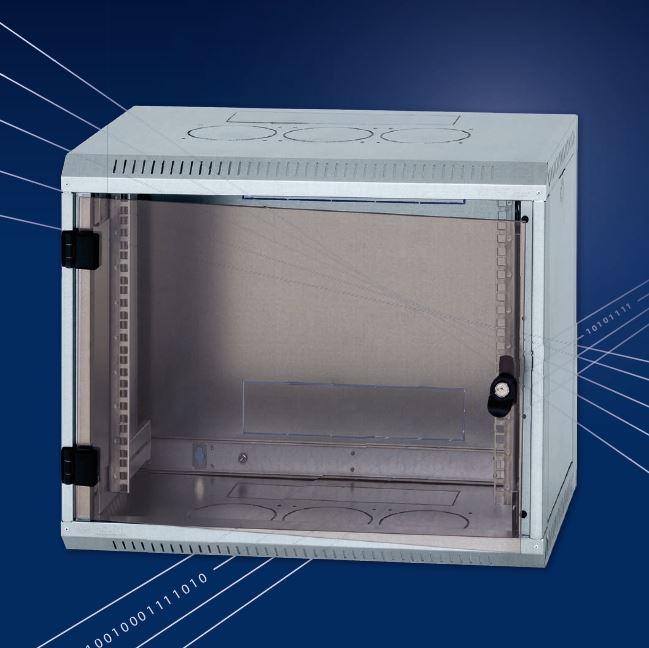

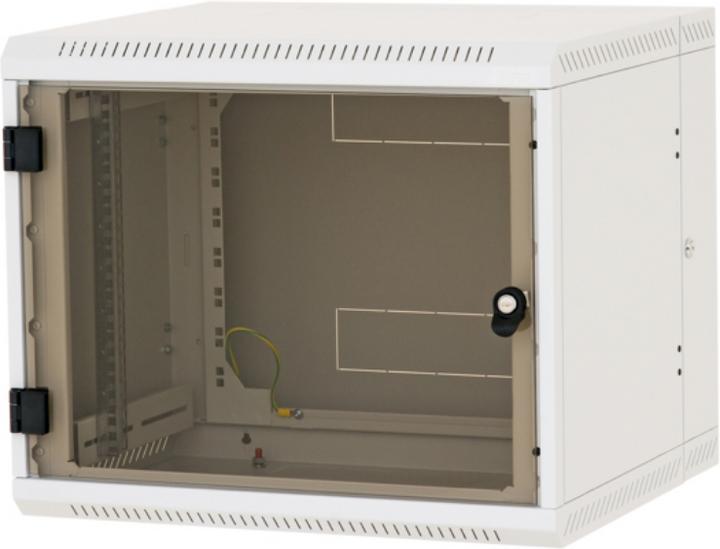

  • Two-part 19" wall-mounted distribution cabinet with protection class IP30
  • The housing is directly mounted to the wall.
  • The cabinet includes two adjustable vertical mounting rails.
  • Cabinet construction:
  • Compact welded construction

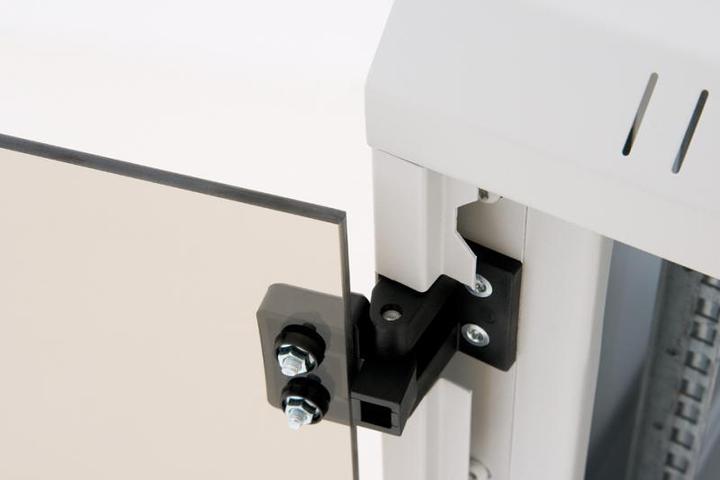

  • Full glass door made of 4 mm thick safety glass, with optional solid metal or perforated door.
  • The permissible load capacity of each door is a maximum of 10 kg.
  • The minimum coating thickness is 65 µm.
  • The cabinets are designed for the installation of data and telecommunications systems and their distribution systems.

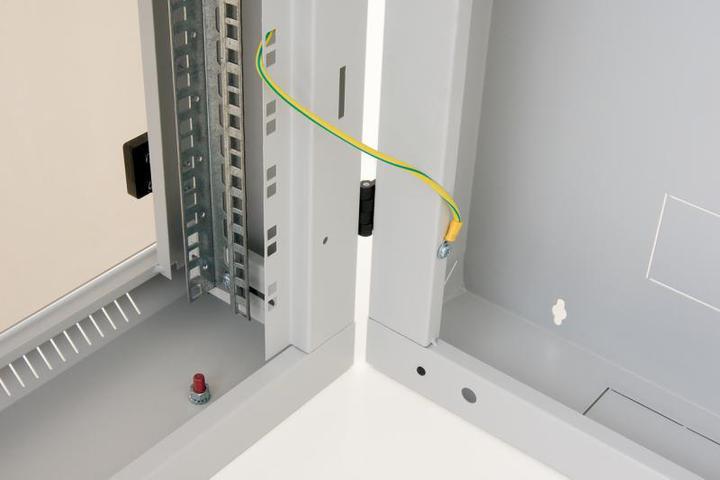

  • The distribution frame and all removable parts (side and rear panels, doors, etc.) are connected with grounding cables, which must be properly secured and plugged in throughout the entire service life of the cabinet.
  • At the bottom of the cabinet, there is an M8 screw as the main grounding point.
  • Cable entry points with break-out covers are located at the top and bottom of the rear panel, as well as one additional point in the roof and floor.
  • The A6 version has break-out openings in the roof and floor of the cabinet for the installation of fans.

Key specifications

Type
Cabinet
Protection type (IP code)
IP30
Ventilation
Passive
Server cabinet features
Lockable
Item number
16168669

General information

Manufacturer
Triton
Category
Server cabinets
Manufacturer no.
RBA-15-AD6-CAX-A1
Release date
25.6.2021

Colour

Colour
Grey
Exact colour description
Light grey Ral 7035

Material

Material group
Plastic
Material
Plastic

Server cabinet properties

Type
Cabinet
Rack size
19 inch rack
Form factor size
15 RU
Max. weight
30000 kg
Protection type (IP code)
IP30
Wall thickness
1.50 mm
Ventilation
Passive
Server cabinet features
Lockable

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 pieces 19" profile rails, 8 cage nuts and fastening material, also on the top and bottom edge of the rear panel, Housing earthed in accordance with VDE, Infinitely variable depth adjustment, Natural ventilation, Roof and base with pre-moulded cut-outs for cable entry, Supplied with brush set, TÜV-tested quality

Product dimensions

Height
770 mm
Width
600 mm
Length
615 mm
Weight
31.70 kg
