Triton RAB-RV-X61-Y6 - Additional cover for mounting the air conditioning unit type Y1, Y2, lengthwise on

For the active temperature regulation of our distributors, we offer air conditioning units from the leading European manufacturer STULZ-Cosmotec under the Triton brand. The compact ETE air conditioning units are designed for cooling components in the RDE and RIE series data distributors, which have an IP54 degree of protection.

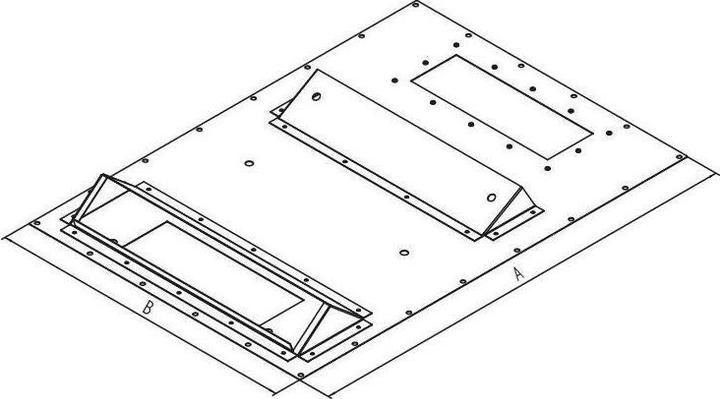

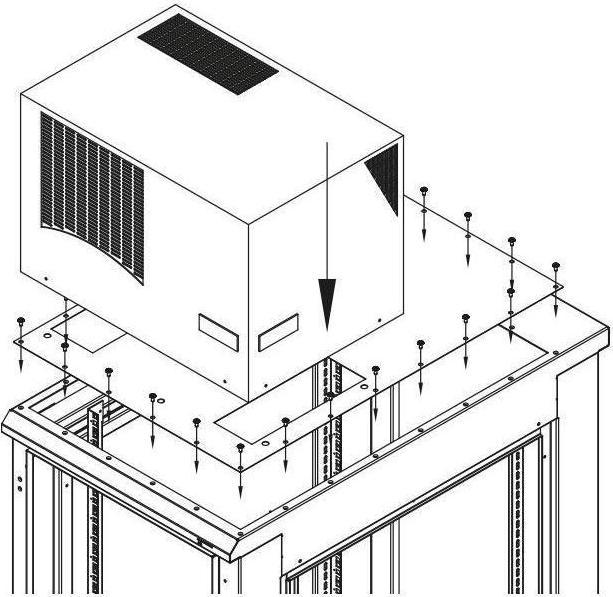

To fully utilize the potential of the air conditioning units by controlling the cooling air as required by the installed components, we supply additional panels for mounting on the RDE and RIE series distributors. This is a metal plate that is screwed onto the large opening in the distributor roof and on which the air conditioning unit is installed. The additional panels are symmetrical, allowing the airflow to be redirected by rotating them. For easy access to the control panel of the thermostat, it can be mounted in two positions by simply plugging it in.

The 800 mm wide air conditioning unit can only be mounted on 800 mm wide distributors. The 600 mm wide climate control unit can be mounted on both 600 mm and 800 mm wide manifolds.

• Type: RAx-RV-X61-Y6
• A (mm) manifold depth: 1000, 1100, 1200
• B (mm) manifold width: 600
• Type of climate control unit: Y1, Y2
• Mounting direction of the climate control unit: in depth
• Accessory pack: B (20 M5x12 screws with integrated washer, 20 rubber seals)
• Cable entry (number of cables): RAx-PB-X01-X1 (29 x Ø 7-12 mm; 4 x Ø 7-14 mm; 4 x Ø 11-20 mm; 1 x Ø 16-29 mm)
• Colour: black.
