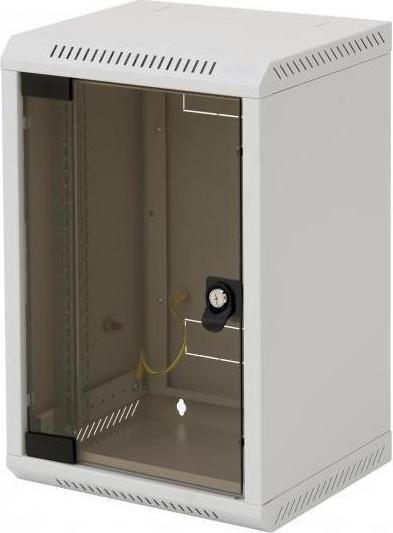

Triton 10" wall cabinet one-piece 4HE300mm, glass door, black

4 RU, 10 inch rack
Ratings
BrandMore from Triton
Delivered between Fri, 15.5. and Sat, 20.6.
free shipping

Product details

Enclosure for small home networks (SOHO), IP20, load capacity 20 kg. An ideal solution for the installation of 10-inch components. The distributor is often used in the realization of small projects, such as home connections or the networks of smaller companies (SOHO). It is a popular addition to classic 19-inch distributors.

Specification

  • Color: black
  • Material: 4 mm tempered safety glass; deep-drawn steel sheet

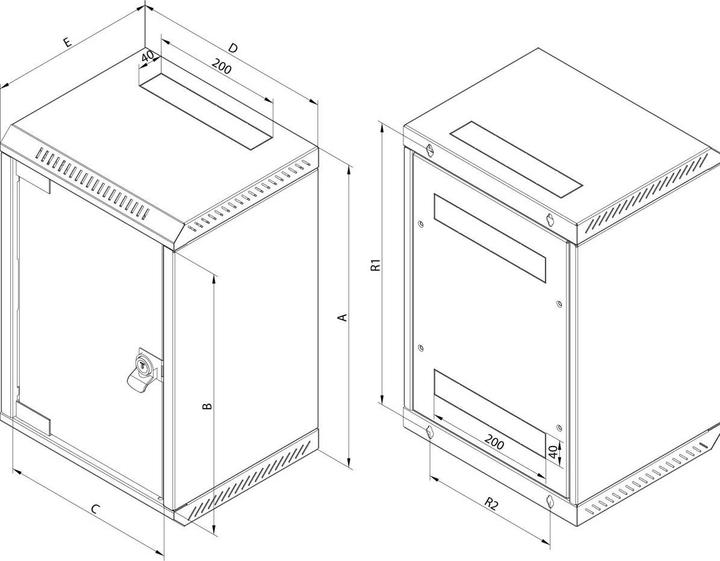

  • Dimensions (W x H x D) mm: 248 x 310 x 260
  • Gross weight kg: 5.5
  • Net weight kg: 5.4
  • Recommended maximum load kg: 20
  • With solid side walls
  • IP20
  • Glass left-hinged
  • One-piece
  • With lock
  • 10 inches
  • Included:

Door keys: 2x
Wood screw M6x50: 4x
Washer 6.6: 4x
Dowels 10: 4x
Cage nut M6: 8x

Product details

  • High stability of the construction: The distributor features a robust welded construction. The high quality of workmanship and the latest technologies ensure the great appearance of the enclosure.

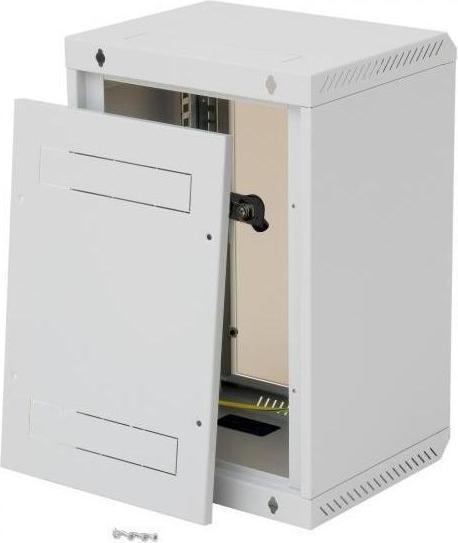

  • Doors: These enclosures are standardly supplied with full glass doors with a lock. Full metal or perforated doors are also available upon request.
  • Flexible door opening: The hinge system allows the door to open up to 130°.
  • Full glass: The full glass doors are made from 4 mm thick impact-resistant tempered glass. In case of breakage, they shatter into many small pieces like automotive glass. For safety reasons, we recommend closing the full glass door after installing components to avoid collisions with other objects. Our full glass doors have been tested at a certified testing facility and meet the requirements of ČSN EN 12150-1+A: Glass in construction – thermally toughened soda-lime-silicate safety glass. The tested glass complies with the standard for fragmentation after glass breakage, conformity certificate CQ-24-2023, test protocol IKATES 58A-2024.
  • Door lock: Easy and quick access to the enclosure.

Key specifications

Type
Cabinet
Protection type (IP code)
IP20

General information

Item number
53994816
Manufacturer
Triton
Category
Server cabinets
Manufacturer no.
RBA-04-AS3-BAX-C1
Release date
14.1.2025

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Glass, Metal
Material
Deep-drawn steel sheet, Tempered safety glass 4 mm

Server cabinet properties

Type
Cabinet
Rack size
10 inch rack
Form factor size
4 RU
Max. weight
20 kg
Protection type (IP code)
IP20

Voluntary climate contribution

CO₂ emissions
1.98 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
Door key: 2x, wood screw M6x50: 4x, washer 6.6: 4x, dowel 10: 4x, cage nut M6: 8x

Product dimensions

Height
248 mm
Width
260 mm
Length
310 mm
Weight
5.40 kg

30-day right of return
24 Months Warranty (Bring-in)
