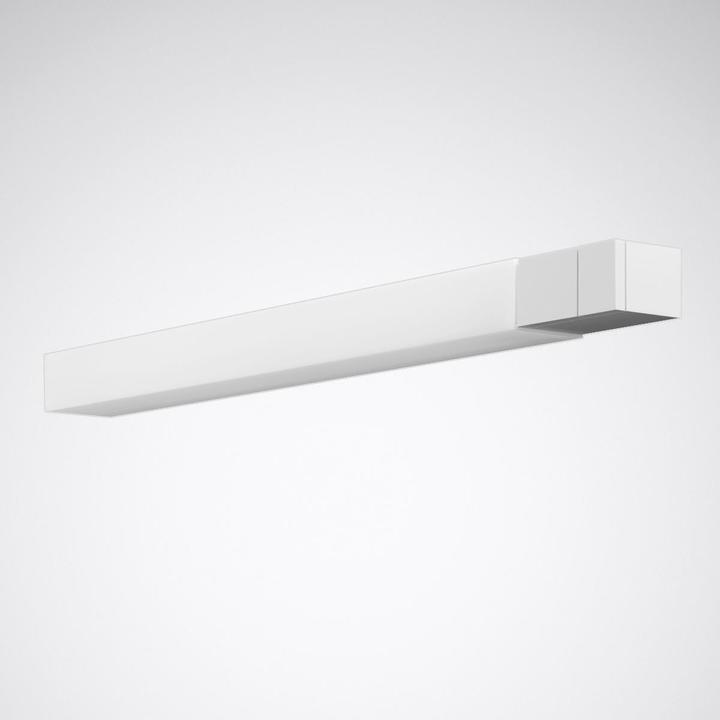

Trilux TRIL LED mirror luminaire

Luminaire type
Surface-mounted LED luminaires for ceiling and wall mounting.

Applications
Corridors, waiting zones, hospitals, care homes, patient rooms, sanitary areas.

Mounting methods
For horizontal or vertical mounting.

Optical system
With PMMA diffuser, opal. Finely structured surface. With symmetric wide light intensity distribution. Glare evaluation (EN 12464-1) according to UGR < 25.

LED system
Luminaire luminous flux 1000 lm, connected load 8.00 W, luminous efficiency of luminaire 125 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 50,000 h.

Luminaire body
Luminaire body of extruded aluminium. With integral cable channel on rear for cable routing with offset wall outlets. Surface coated white (RAL 9016). Dimensions (L x W) 700 mm x 54 mm, luminaire height 85 mm. Permissible ambient temperature (ta): -20 °C - +25 °C.

Electrical version
With electronic transformer, switchable. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.

Supplementary equipment
With integral safety socket and push button switch, protection rating IP20.
