Trilux 6066140

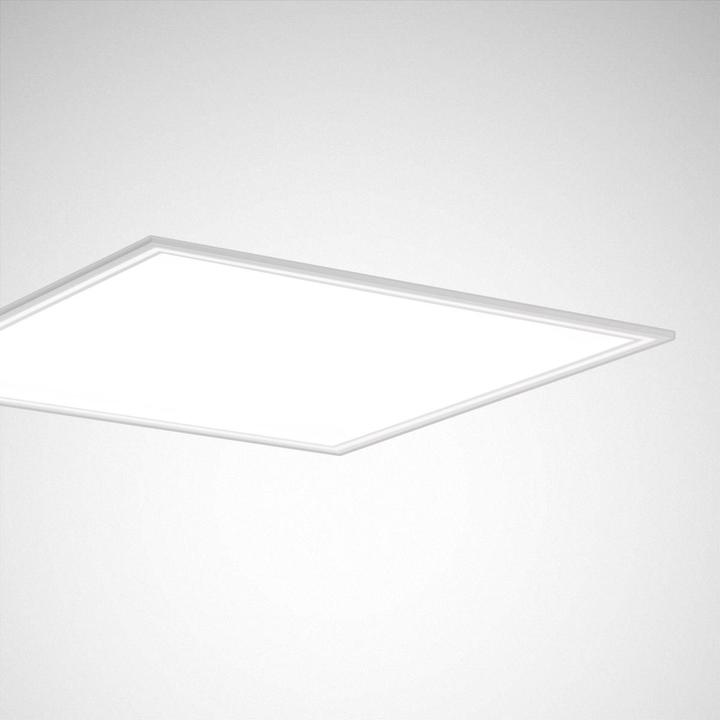

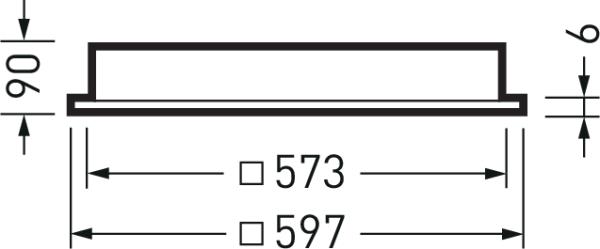

LED recessed light with microprismatic cover CDP. Featuring a continuous, flat light frame. Universally applicable in cut-out installation openings and in system ceilings with concealed or visible support rails. Installation in system ceilings with asymmetrical, concealed support rails available upon request. Designed for system dimensions of 600 mm x 600 mm. For ceiling cutouts of 580 mm x 580 mm, installation depth of 330 mm. Equipped with highly efficient microprismatics CDP. Directly emitting light. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screen workstations according to EN 12464-1. Completely harmonious light effect due to uniformly illuminated light exit. Rated luminous flux 4000 lm, rated power 27.00 W, luminous efficacy of the luminaire 148 lm/W. Light color neutral white, color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average rated lifetime L80(tq 25 °C) = 70,000 h, average rated lifetime L85(tq 25 °C) = 50,000 h. The light source is replaceable according to eco-design requirements. Luminaire body made of sheet steel. Surface coated in white (RAL 9016). Dimensions (L x W): 597 mm x 597 mm, luminaire height 92 mm. Permissible ambient temperature (ta): -20 °C to +. Protection class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance grade according to IEC 62262: IK06, test temperature for glow wire test according to IEC 60695-2-11: 650 °C. Weight: 7.5 kg. With 3-pole terminal block for up to 2.5 mm² for mains connection and network forwarding. With electronic control gear, switchable. The control gear is replaceable according to eco-design requirements. The product meets the basic requirements of applicable EU directives and the Product Safety Act and bears the CE marking. Additionally, the luminaire is ENEC certified by an independent testing body.
