Product details

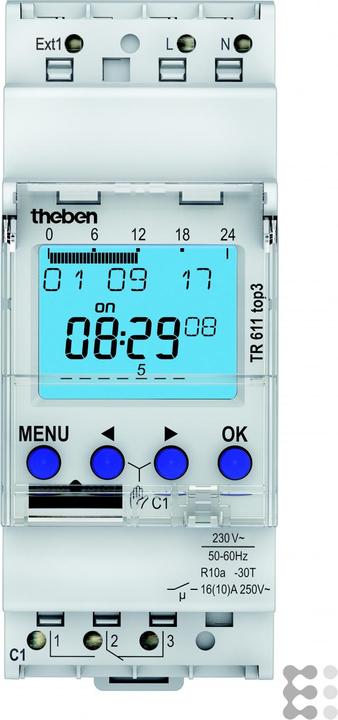

Theben digital timer TR 611 top3
Manufacturer: Theben
Designation: Digital timer weekly program 1K
Type: TR 611 top3
Mounting type: DIN rail
Number of channels: 1
Supply voltage: 230 V
Type of supply voltage: AC
Frequency of supply voltage: 50-60 Hz
Power reserve in years: 10
Accuracy per day: 0.25 s
Text display: yes
External programming: yes
With memory card: yes
60 min program: yes
24 h program: yes
Weekly program: yes
Annual program: no
Holiday program: yes
Pulse program: yes
Cycle program: yes
Astro program: no
Random program: yes
Operating hour counter: yes
Network synchronized: no
Quartz controlled: yes
Radio controlled: no
Radio controlled (DCF77): no
GPS: no
Contact type: Changeover (NO/NC)
Number of contacts: 1
Output signal: other
Shortest switching time channel 1: 0.016 min
Number of memory slots: 84
Automatic summer/winter time changeover: yes
Suitable for manual operation: yes
External button input: yes
Switching preselection: yes
Rated switching current at 250 V AC: 16 A
Max. switching power LED: 600 W
Potential-free switching contact: yes
Protection class (IP): IP20
Width in division units: 2
Width: 35 mm
Height: 90 mm
Depth: 60 mm
Theben digital timer TR 611 top3: additional details
Digital timer for DIN rail, 1 channel, weekly program, external input, 3 special programs, width 2 TE, app programming possible, secure transmission via optional Bluetooth Low Energy OBELISK top3, maximum tamper-proof security, timer programs can only be transferred from the app to the timer when the Bluetooth OBELISK top3 is inserted into the timer, 100% compatible with top2, 600 watt LED power, 800 ampere/200 microseconds inrush current, 0.4 watt standby power, DuoFix terminal blocks, power reserve and programmed summer/winter time changeover, OBELISK interface for PC programming.
