TE Sensors XS1 Inductive Sensor M12

Telemechanique Sensors Proximity Switch XS112B3PBM12

Manufacturer: Telemechanique Sensors
Designation: Proximity Switch M12 PNP NC B M12
Type: XS112B3PBM12
Length of the sensor: 50 mm
Diameter of the sensor: 12 mm
Mechanical installation condition for the sensor: flush
Switching distance: 4 mm
Suitable for safety functions: no
Type of switching function: Normally Open
Type of switching output: PNP/PNP
Type of electrical connection: M12 connector
Number of semiconductor outputs with signaling function: 1
Type of actuation: metallic target
Interface design: none
Interface design for safety-related communication: none
Housing design: Cylinder, threaded
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at the safe output: 200 mA
Supply voltage: 12..24 V
Rated control supply voltage Us at DC: 12..24 V
Type of voltage: AC/DC
Switching frequency: 2500 Hz
With monitoring function for downstream devices: no
Material of the housing: Metal
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Interference immunity against magnetic fields: immune to magnetic DC and AC fields

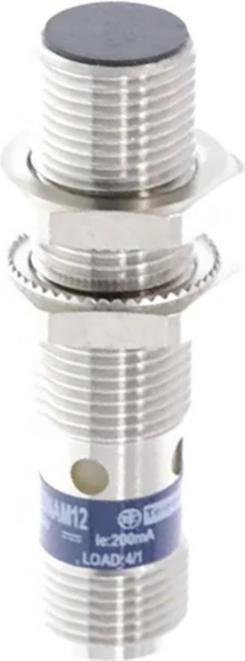

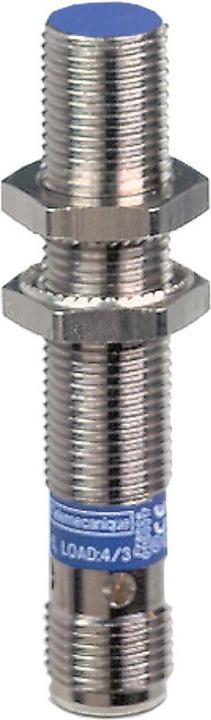

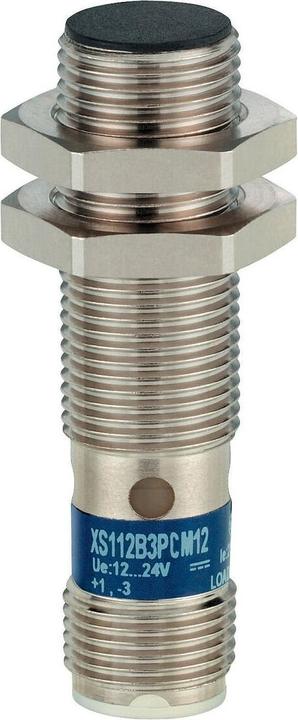

This OsiSense XS cylindrical (M12 thread) inductive proximity sensor features a PPS sensing surface and a nickel-plated brass housing. It has a switching distance of 4 mm, Normally Open PNP output, and an M12 connector. It operates with a supply voltage of 12 to 24 VDC. This universally applicable cylindrical inductive proximity sensor with thread is designed for flush mounting and has a larger detection range. It can be directly mounted on a surface or bracket thanks to its external thread and double nuts, and it is E2, CSA, UL certified.
