TE Sensors Sensor, Inductive, M18, Sr 8mm, PNP, 2m

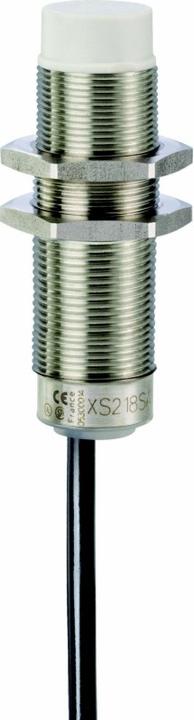

Telemechanique Sensors Proximity Switch XS618B1PAL2

Manufacturer: Telemechanique Sensors
Designation: Proximity Switch M18
Type: XS618B1PAL2
Length of the sensor: 60 mm
Diameter of the sensor: 18 mm
Mechanical installation condition for the sensor: flush
Switching distance: 8 mm
Suitable for safety functions: no
Type of switching function: normally open
Type of switching output: PNP/PNP
Type of electrical connection: radial cable
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Type of actuation: metallic target
Interface type: none
Interface type for safety-related communication: none
Housing design: cylinder, threaded
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at safe output: 200 mA
Supply voltage: 12..48 V
Rated control supply voltage Us at DC: 12..48 V
Voltage type: AC/DC
Switching frequency: 1000 Hz
With monitoring function for downstream devices: no
Material of the housing: metal
Pressure resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Immunity to magnetic fields: immune to magnetic static fields

Telemechanique Sensors Proximity Switch XS618B1PAL2: additional details
OsiSense XS - Inductive proximity switches with increased switching distance, round design.
XS6 Inductive proximity switches, dimensions M18 x 60 mm, connection cable 2 m, output NO, flush yes, switching distance: 8 mm, protection class IP 68.
Function PNP.
EAN: 3389110146349.
