TE Sensors Sensor, Inductive, M18, Sr 8mm, IP69K

Telemechanique Sensors Proximity Switch XS618B1MBL2

Manufacturer: Telemechanique Sensors
Designation: Proximity Switch
Type: XS618B1MBL2
Sensor Length: 61.4 mm
Sensor Diameter: 18 mm
Mechanical Installation Condition for Sensor: flush
Switching Distance: 8 mm
Suitable for Safety Functions: no
Switch Function Type: Normally Open
Switch Output Type: 2-Wire
Electrical Connection Type: Radial Cable
Actuation Type: metallic target
Interface Type: none
Interface Type for Safety-Related Communication: none
Housing Design: Cylinder, Threaded
Housing Coating: Nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. Output Current at Safe Output: 200 mA
Supply Voltage: 24..240 V
Rated Control Supply Voltage Us at AC 50 Hz: 24..240 V
Rated Control Supply Voltage Us at AC 60 Hz: 24..240 V
Rated Control Supply Voltage Us at DC: 24..240 V
Voltage Type: AC/DC
Switching Frequency: 1000 Hz
With Monitoring Function for Downstream Devices: no
Housing Material: Metal
Pressure Resistant: no
Explosion Protection Category for Gas: none
Explosion Protection Category for Dust: none
Immunity to Magnetic Fields: immune to static and alternating magnetic fields

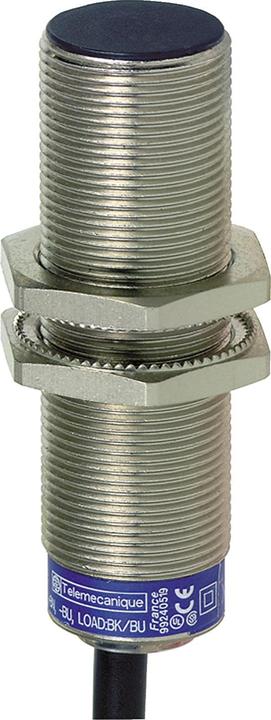

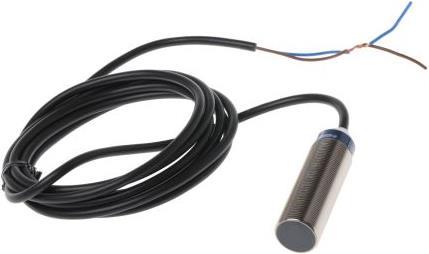

This OsiSense XS cylindrical (M18 thread) inductive proximity sensor features a PPS sensor surface and a nickel-plated brass housing. It has a switching distance of 8 mm, normally open function, and is pre-wired (2 m cable). It operates with a supply voltage of 24 to 240 VAC/DC. This universally applicable cylindrical inductive proximity sensor with thread is designed for flush mounting and offers a larger detection range. Thanks to its external thread and double nuts, it can be directly mounted on a surface or bracket and is CSA and UL certified.
