TE Sensors Sensor, Inductive M08 1.5mm, PNP NO, M12

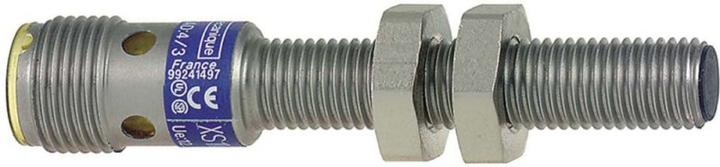

Telemechanique Sensors Proximity Switch M12 XS508BLPAM12

Manufacturer: Telemechanique Sensors
Designation: Proximity Switch M12 M08 PNP 3-L 1.5mm
Type: XS508BLPAM12
Height of the sensor: 8 mm
Length of the sensor: 61 mm
Diameter of the sensor: 8 mm
Mechanical mounting condition for the sensor: flush
Switching distance: 1.5 mm
Suitable for safety functions: no
Type of switching function: Normally open
Type of switching output: PNP/PNP
Type of electrical connection: M12 connector
Number of semiconductor outputs with signaling function: 1
Number of safe contact outputs: 1
Type of actuation: metallic target
Interface type: none
Interface type for safety-related communication: none
Housing design: Cylinder, threaded
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at the safe output: 200 mA
Supply voltage: 12..24 V
Rated control supply voltage Us at DC: 12..24 V
Voltage type: AC/DC
Switching frequency: 4000 Hz
With monitoring function for downstream devices: no
Material of the housing: Metal
Pressure resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Interference immunity against magnetic fields: immune to magnetic DC and AC fields

This OsiSense XS cylindrical (M8 thread) inductive proximity sensor features a PPS sensing surface and a stainless steel housing of grade 303. It has a switching distance of 1.5 mm, normally open PNP output, and an M12 connector. It operates with a supply voltage of 12 to 48 VDC. This universally applicable inductive proximity sensor with cylindrical thread is designed for flush mounting. Thanks to its external thread and double nuts, it can be directly mounted on a surface or bracket and is certified by CCC, CSA, and UL.
